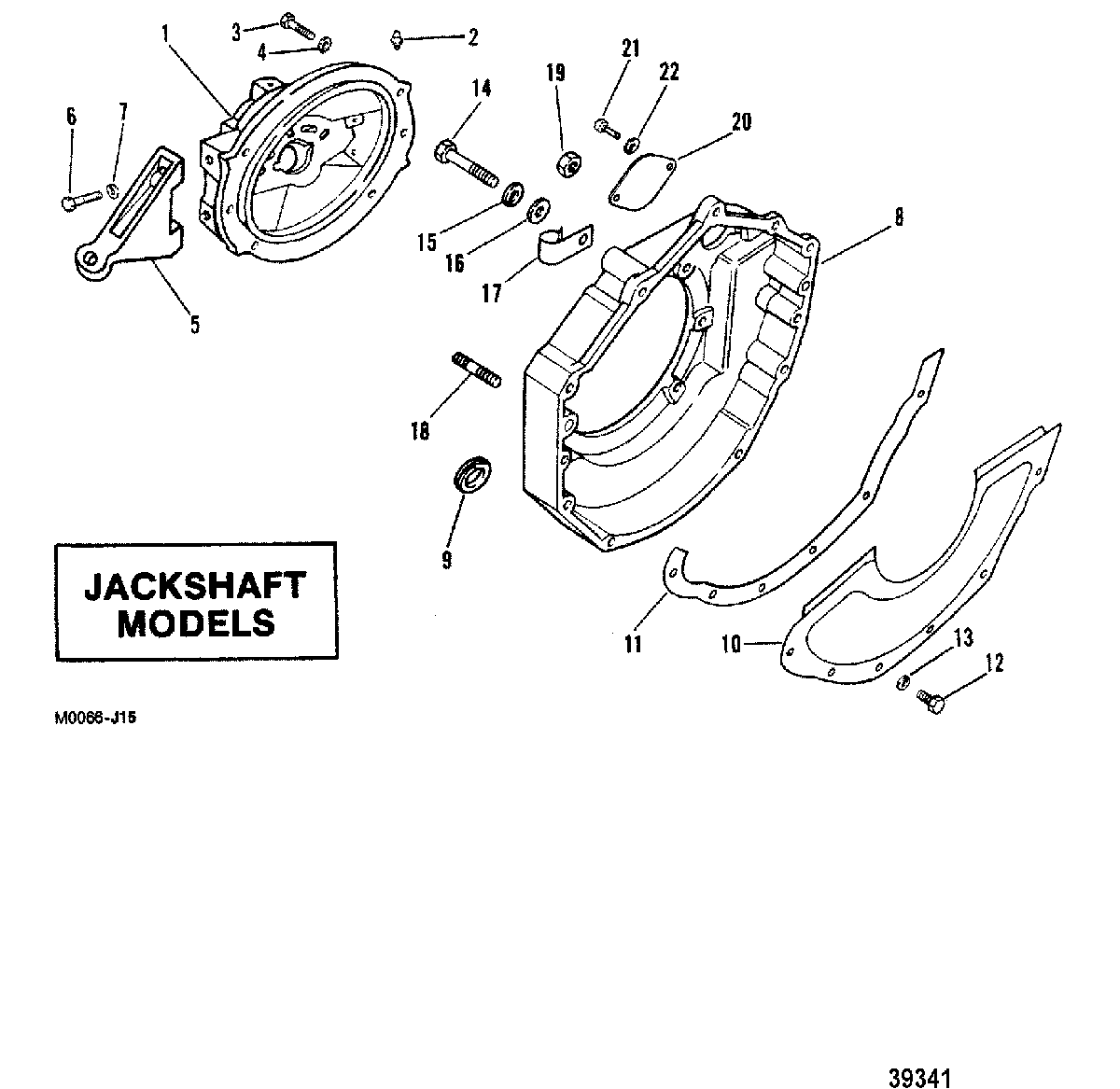

DRIVESHAFT EXTENSION COMPONENTS, JACKSHAFT MODELS для Mercruiser - 140 GM 181 I/L4 1982-1986 6229718 THRU 0B450800

  • №
    Артикул
    Название
  • 1
    93911A4 HOUSING ASSEMBLY, Shaft Extension Support
    HOUSING ASSEMBLY, Shaft Extension Support
  • 2
    22-74036 FITTING, Grease
    FITTING, Grease
  • 3
    10-47651 SCREW, (.437-14 x 1.50), HOUSING
    SCREW, (.437-14 x 1.50), HOUSING
  • 4
    13-32993 LOCKWASHER, (.437), HOUSING SCREW
    LOCKWASHER, (.437), HOUSING SCREW
  • 5
    93923A1 MOUNT ASSEMBLY, ENGINE
    MOUNT ASSEMBLY, ENGINE
  • 6
    10-47651 SCREW, (.437-14 x 1.50), MOUNT
    SCREW, (.437-14 x 1.50), MOUNT
  • 7
    13-32993 LOCKWASHER, (.437), MOUNT SCREW
    LOCKWASHER, (.437), MOUNT SCREW
  • 8
    814309A1 HOUSING, FLYWHEEL
    HOUSING, FLYWHEEL
  • 9
    19-12304 PLUG
    PLUG
  • 10
    93917A4 COVER ASSEMBLY, FLYWHEEL HOUSING
    COVER ASSEMBLY, FLYWHEEL HOUSING
  • 11
    27-86015 GASKET, FLYWHEEL HOUSING COVER
    GASKET, FLYWHEEL HOUSING COVER
  • 12
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel, COVER SCREW
    LOCKWASHER, (.250) Stainless Steel, COVER SCREW
  • 14
    10-34353 SCREW, (.375-16 x 1.00), FLYWHEEL HOUSING
    SCREW, (.375-16 x 1.00), FLYWHEEL HOUSING
  • 14
    10-47688 SCREW, (.375-16 x 2.750), LFYWHEEL HOUSING
    SCREW, (.375-16 x 2.750), LFYWHEEL HOUSING
  • 15
    13-35048 LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW ADN STUD
    LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW ADN STUD
  • 16
    12-20572 WASHER, (.390 x .750 x .093), FLYWHEEL HOUSING SCREW (FOR SLOT)
    WASHER, (.390 x .750 x .093), FLYWHEEL HOUSING SCREW (FOR SLOT)
  • 17
    54-92850 CLAMP, FLYWHEEL HOUSING SCREW
    CLAMP, FLYWHEEL HOUSING SCREW
  • 18
    16-861316 STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING
    STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING
  • 19
    11-32219 NUT, (.375-16), FLYWHEEL HOUSING STUD
    NUT, (.375-16), FLYWHEEL HOUSING STUD
  • 20
    939201 PLATE, FLYWHEEL HOUSING
    PLATE, FLYWHEEL HOUSING
  • 21
    10-92913 SCREW, PLATE
    SCREW, PLATE
  • 22
    13-32993 LOCKWASHER, (.437), PLATE SCREW
    LOCKWASHER, (.437), PLATE SCREW
