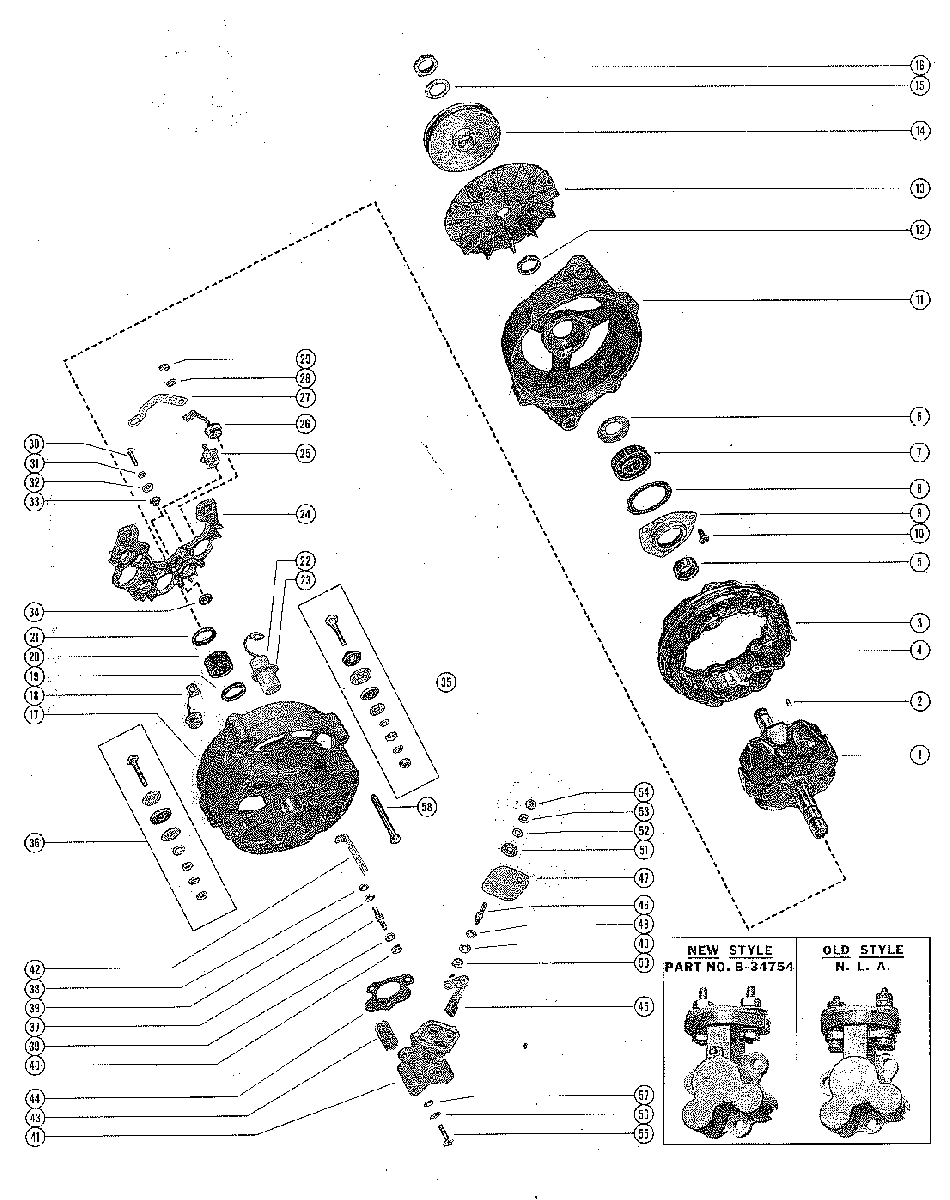

ALTERNATOR ASSEMBLY для Mercruiser - 110 GM 153 I/L4 1963-1966 1537370 THRU 2044033
-
№АртикулНазвание
-
-47456A1 ALTERNATOR ASSEMBLY, COMPLETE
SERIAL 00000000-01729300ALTERNATOR ASSEMBLY, COMPLETE
SERIAL 00000000-01729300 -
-47456A1 ALTERNATOR ASSEMBLY, COMPLETE
SERIAL 01729301-09999999ALTERNATOR ASSEMBLY, COMPLETE
SERIAL 01729301-09999999 -
138022 ROTORROTOR
-
138022 ROTORROTOR
-
228-38030 KEY, DRIVE - PULLEY AND FAN (ROTOR)KEY, DRIVE - PULLEY AND FAN (ROTOR)
-
333325 STATOR ASSEMBLYSTATOR ASSEMBLY
-
454-33329 CLIP, TERMINAL - STATOR LEADSCLIP, TERMINAL - STATOR LEADS
-
533263 COLLAR, DRIVE END FRAME - INNERCOLLAR, DRIVE END FRAME - INNER
-
538029 COLLAR, DRIVE END FRAME - INNERCOLLAR, DRIVE END FRAME - INNER
-
625-33312 SLINGER, GREASE - DRIVE END FRAMESLINGER, GREASE - DRIVE END FRAME
-
730-69389 BEARING, BALL - DRIVE END FRAMEBEARING, BALL - DRIVE END FRAME
-
827-33273 GASKET, BALL BEARING RETAINER PLATEGASKET, BALL BEARING RETAINER PLATE
-
933319 PLATE, BALL BEARING RETAINER - DRIVE END FRAMEPLATE, BALL BEARING RETAINER - DRIVE END FRAME
-
1010-38028 SCREW, BALL BEARING RETAINER PLATE TO DRIVE END FRAMESCREW, BALL BEARING RETAINER PLATE TO DRIVE END FRAME
-
1010-38028 SCREW, BALL BEARING RETAINER PLATE TO DRIVE END FRAMESCREW, BALL BEARING RETAINER PLATE TO DRIVE END FRAME
-
1133343 FRAME, DRIVE ENDFRAME, DRIVE END
-
1233344 COLLAR, DRIVE END FRAME - OUTERCOLLAR, DRIVE END FRAME - OUTER
-
1333336 FAN, DRIVE END FRAMEFAN, DRIVE END FRAME
-
1438766 PULLY, DRIVE END FRAMEPULLY, DRIVE END FRAME
-
1333336 FAN, DRIVE END FRAMEFAN, DRIVE END FRAME
-
1438766 PULLY, DRIVE END FRAMEPULLY, DRIVE END FRAME
-
1513-33309 WASHER, WAVE - ROTOR NUTWASHER, WAVE - ROTOR NUT
-
1611-33272 NUT, ROTOR TO DRIVE END FRAMENUT, ROTOR TO DRIVE END FRAME
-
1733349 FRAME ASSEMBLY, SLIP RING ENDFRAME ASSEMBLY, SLIP RING END
-
1833341 DIODE PACKAGE, SLIP RING END FRAME - NEGATIVEDIODE PACKAGE, SLIP RING END FRAME - NEGATIVE
-
1926-33348 SEAL, SLIP RING END FRAME ROLLER BEARING - OUTERSEAL, SLIP RING END FRAME ROLLER BEARING - OUTER
-
2031-33355 BEARING, ROLLER - SLIP RING END FRAMEBEARING, ROLLER - SLIP RING END FRAME
-
2126-33348 SEAL, SLIP RING END FRAME ROLLER BEARING - INNERSEAL, SLIP RING END FRAME ROLLER BEARING - INNER
-
2233327 CONDENSERCONDENSER
-
2333345 RETAINER, SLIP RING END FRAME CONDENSERRETAINER, SLIP RING END FRAME CONDENSER
-
2433350 HEAT SINK ASSEMBLY, SLIP RING END FRAMEHEAT SINK ASSEMBLY, SLIP RING END FRAME
-
2533342 TERMINAL PACKAGE, DIODE JUNCTION AND STATOR TERMINALTERMINAL PACKAGE, DIODE JUNCTION AND STATOR TERMINAL
-
2633340 DIODE PACKAGE, HEAT SINK-POSITIVEDIODE PACKAGE, HEAT SINK-POSITIVE
-
2733332 STRAP, DIODE JUNCTION TERMINAL TO RELAY TERMINALSTRAP, DIODE JUNCTION TERMINAL TO RELAY TERMINAL
-
2813-34383 LOCKWASHER, DIODE JUNCTION TERMINALLOCKWASHER, DIODE JUNCTION TERMINAL
-
2911-26419 NUT, DIODE JUNCTION TERMINALNUT, DIODE JUNCTION TERMINAL
-
3010-46718 SCREW, CONDENSER TERMINAL TO HEAT SINKSCREW, CONDENSER TERMINAL TO HEAT SINK
-
3113-34383 LOCKWASHER, CONDENSER TERMINAL SCREWLOCKWASHER, CONDENSER TERMINAL SCREW
-
3212-20192 WASHER, CONDENSER TERMINAL SCREWWASHER, CONDENSER TERMINAL SCREW
-
3212-38027 WASHER, CONDENSER TERMINAL SCREWWASHER, CONDENSER TERMINAL SCREW
-
3333326 INSULATOR, CONDENSER TERMINAL SCREWINSULATOR, CONDENSER TERMINAL SCREW
-
3412-33328 WASHER, INSULATING - CONDENSER TERMINAL SCREWWASHER, INSULATING - CONDENSER TERMINAL SCREW
-
3533353 RELAY TERMINAL PACKAGE, HEAT SINK TO SLIP RING END FRAMERELAY TERMINAL PACKAGE, HEAT SINK TO SLIP RING END FRAME
-
3633352 BATTERY TERMINAL PACKAGE, HEAT SINK TO SLIP RING END FRAMEBATTERY TERMINAL PACKAGE, HEAT SINK TO SLIP RING END FRAME
-
3733346 TERMINAL, GROUND - SLIP RING END FRAMETERMINAL, GROUND - SLIP RING END FRAME
-
3812-20192 WASHER, GROUND TERMINALWASHER, GROUND TERMINAL
-
3913-26995 LOCKWASHER, GROUND TERMINALLOCKWASHER, GROUND TERMINAL
-
4011-26419 NUT, GROUND TERMINALNUT, GROUND TERMINAL
-
4134754 BRUSH HOLDER PACKAGE
SEE NOTE BELOWBRUSH HOLDER PACKAGE
SEE NOTE BELOW -
4235203 CONNECTOR, GROUND TERMINAL TO GROUND BRUSH STUD
SEE NOTE BELOWCONNECTOR, GROUND TERMINAL TO GROUND BRUSH STUD
SEE NOTE BELOW -
4335-33602 SCREEN, FLAME ARRESTOR - BRUSH HOLDER
SEE NOTE BELOWSCREEN, FLAME ARRESTOR - BRUSH HOLDER
SEE NOTE BELOW -
4427-33347 GASKET, BRUSH HOLDER
SEE NOTE BELOWGASKET, BRUSH HOLDER
SEE NOTE BELOW -
4535200 BRUSH PACKAGE, STATOR (2 PER PACKAGE)
SEE NOTE BELOWBRUSH PACKAGE, STATOR (2 PER PACKAGE)
SEE NOTE BELOW -
4616-35202 STUD, FIELD AND GROUND BRUSH - BRUSH HOLDER
SEE NOTE BELOWSTUD, FIELD AND GROUND BRUSH - BRUSH HOLDER
SEE NOTE BELOW -
4735205 COVER, PLASTIC - BRUSH HOLDER
SEE NOTE BELOWCOVER, PLASTIC - BRUSH HOLDER
SEE NOTE BELOW -
4813-35207 WASHER, WAVE - FIELD AND GROUND BRUSH STUD (LOWER)
SEE NOTE BELOWWASHER, WAVE - FIELD AND GROUND BRUSH STUD (LOWER)
SEE NOTE BELOW -
4913-26908 LOCKWASHER, FIELD AND GROUP BRUSH STUD (LOWER)
SEE NOTE BELOWLOCKWASHER, FIELD AND GROUP BRUSH STUD (LOWER)
SEE NOTE BELOW -
5011-68219 NUT, FIELD AND GROUND BRUSH STUD (LOWER)
SEE NOTE BELOWNUT, FIELD AND GROUND BRUSH STUD (LOWER)
SEE NOTE BELOW -
5111-35206 NUT, SEALING - FIELD AND GROUND BRUSH STUD
SEE NOTE BELOWNUT, SEALING - FIELD AND GROUND BRUSH STUD
SEE NOTE BELOW -
5212-38024 WASHER, GROUND BRUSH STUD
SEE NOTE BELOWWASHER, GROUND BRUSH STUD
SEE NOTE BELOW -
5313-35208 WASHER, WAVE - FIELD AND GROUND BRUSH STUD (UPPER)
SEE NOTE BELOWWASHER, WAVE - FIELD AND GROUND BRUSH STUD (UPPER)
SEE NOTE BELOW -
5411-68219 NUT, FIELD AND GROUP BRUSH STUP (UPPER)
SEE NOTE BELOWNUT, FIELD AND GROUP BRUSH STUP (UPPER)
SEE NOTE BELOW -
5510-34382 SCREW, BRUSH HOLDER TO SLIP RING END FRAMESCREW, BRUSH HOLDER TO SLIP RING END FRAME
-
5613-26995 LOCKWASHER, BRUSH HOLDER SCREWLOCKWASHER, BRUSH HOLDER SCREW
-
5712-20670 WASHER, BRUSH HOLDER SCREWWASHER, BRUSH HOLDER SCREW
-
5712-38024 WASHER, BRUSH HOLDER SCREWWASHER, BRUSH HOLDER SCREW
-
5810-33322 BOLT, THRU - SLIP RING END FRAME TO DRIVE END FRAMEBOLT, THRU - SLIP RING END FRAME TO DRIVE END FRAME
