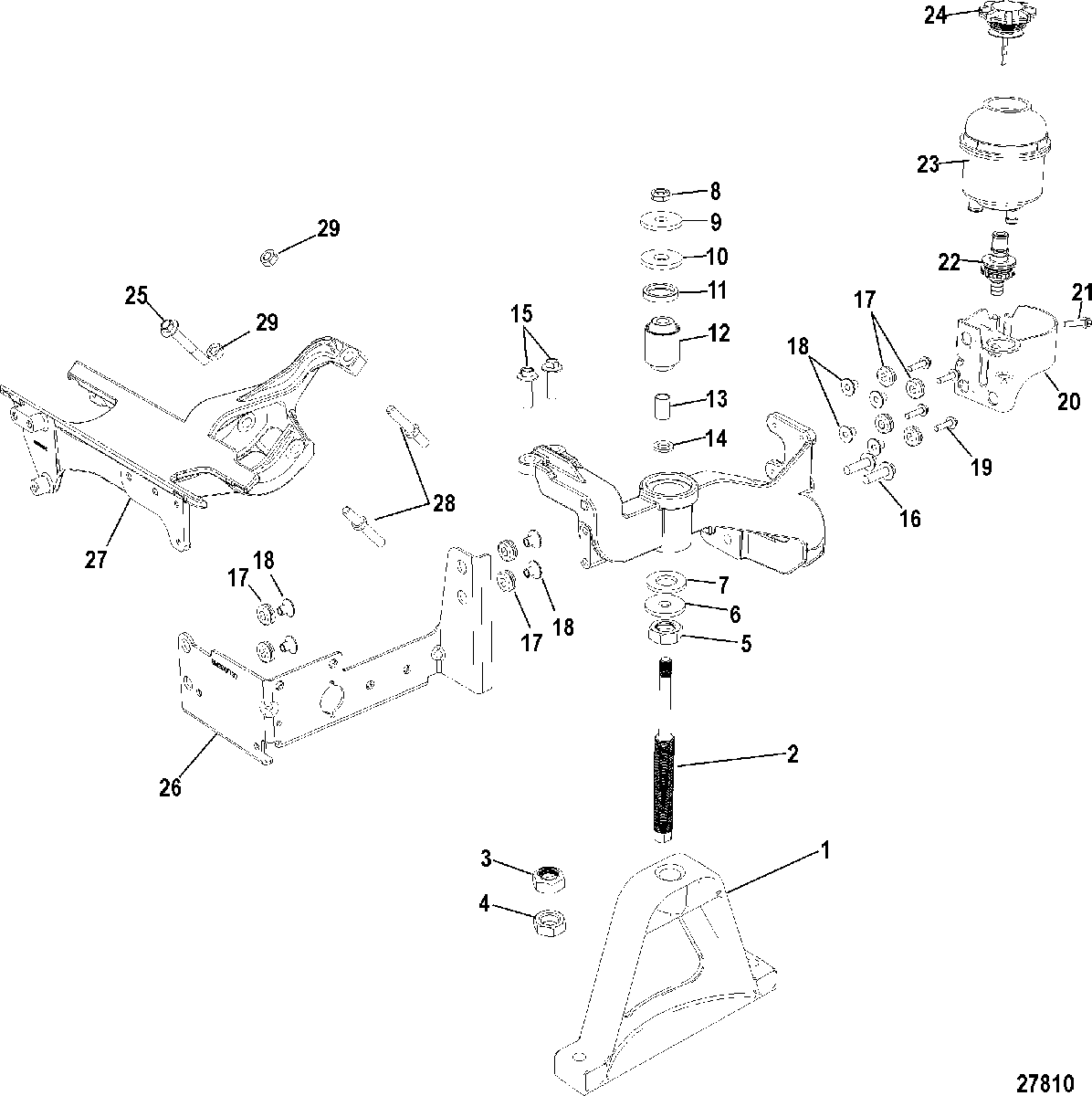

Front Mount Assembly для Mercruiser - 100 VAZER EC 1A035295 THRU 1A036006
-
№АртикулНазвание
-
132778T SUPPORTSUPPORT
-
216-36100T STUDSTUD
-
311-32882 NUT, (.875-14)NUT, (.875-14)
-
411-47525 NUT, (.875-14)NUT, (.875-14)
-
511-32882 NUT, (.875-14)NUT, (.875-14)
-
612-36103 WASHER, (Steel, 1.75 Inch Outside Diameter)WASHER, (Steel, 1.75 Inch Outside Diameter)
-
712-32638 WASHER, RubberWASHER, Rubber
-
811-82671317 NUT, (.500-20)NUT, (.500-20)
-
912-36103 WASHER, (Steel, 1.75 Inch Outside Diameter)WASHER, (Steel, 1.75 Inch Outside Diameter)
-
1012-36104 WASHER, RubberWASHER, Rubber
-
1123-35903 SPACERSPACER
-
1232833 MOUNTMOUNT
-
1323-32756 SPACERSPACER
-
1412-30119 WASHER, (.875 Inch Outside Diameter)WASHER, (.875 Inch Outside Diameter)
-
1510-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
1610-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
1725-834985 GROMMETGROMMET
-
1823-856954 BUSHINGBUSHING
-
1910-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
20879150T30 BRACKETBRACKET
-
2110-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2222-866571 FITTINGFITTING
-
23865264T RESERVOIR ASSEMBLY, Oil - Power-Assisted SteeringRESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
-
248M0121097 CAP, Oil Reservoir - BrownCAP, Oil Reservoir - Brown
-
2510-4010870 SCREW, (M10 x 70) Hex Flange - Stainless SteelSCREW, (M10 x 70) Hex Flange - Stainless Steel
-
268M2001737 BRACKETBRACKET
-
27866593T01 BRACKETBRACKET
-
2816-866693 STUD, (M10 x 76)STUD, (M10 x 76)
-
2911-40114 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
