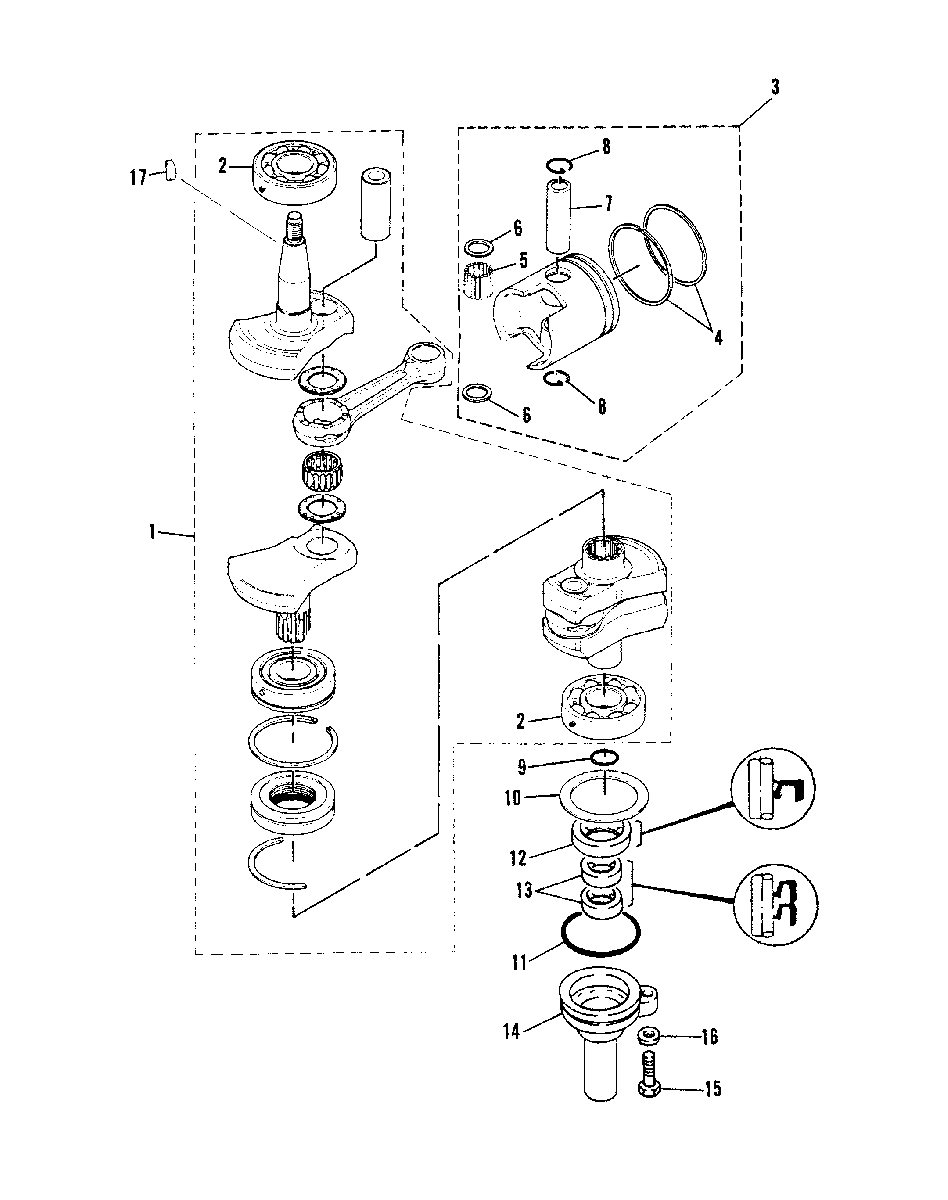

CRANKSHAFT AND PISTON для Mariner - W25 (ML) 648-329486 AND UP
-
№АртикулНазвание
-
1463-9235M CRANKSHAFT ASS'YCRANKSHAFT ASS'Y
-
230-95518T BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
3761-8428M PISTON ASS'Y (STD)PISTON ASS'Y (STD)
-
3761-8429M PISTON ASS'Y (1ST O.S. 67.25 MM)PISTON ASS'Y (1ST O.S. 67.25 MM)
-
3761-8430M PISTON ASS'Y (2ND O.S. 67.50 MM)PISTON ASS'Y (2ND O.S. 67.50 MM)
-
439-81095T PISTON RING SET (STD)PISTON RING SET (STD)
-
439-81096T PISTON RING SET (1ST O.S. 67.25 MM)PISTON RING SET (1ST O.S. 67.25 MM)
-
439-81097T PISTON RING SET (2ND O.S. 67.50 MM)PISTON RING SET (2ND O.S. 67.50 MM)
-
529-84452M BEARING, NEEDLEBEARING, NEEDLE
-
612-81829M WASHER, CONNECTING ROD BEARINGWASHER, CONNECTING ROD BEARING
-
741-80565M PIN, PISTONPIN, PISTON
-
853-82345M SNAP RINGSNAP RING
-
925-82267M O-RING, CRANKSHAFT TO DRIVESHAFTO-RING, CRANKSHAFT TO DRIVESHAFT
-
1023-81842M SPACER, INNER BEARINGSPACER, INNER BEARING
-
1125-84089M O-RING, OIL SEAL HOUSINGO-RING, OIL SEAL HOUSING
-
1226-84752M OIL SEAL, LARGEOIL SEAL, LARGE
-
1326-97040M OIL SEAL, SMALLOIL SEAL, SMALL
-
1419135M HOUSING, OIL SEAL (LOWER)HOUSING, OIL SEAL (LOWER)
-
1510-94526M BOLTBOLT
-
1612-82214M WASHER, LOCKWASHER, LOCK
-
1728-8M0057164 KEY, CRANKSHAFT TO FLYWHEELKEY, CRANKSHAFT TO FLYWHEEL
