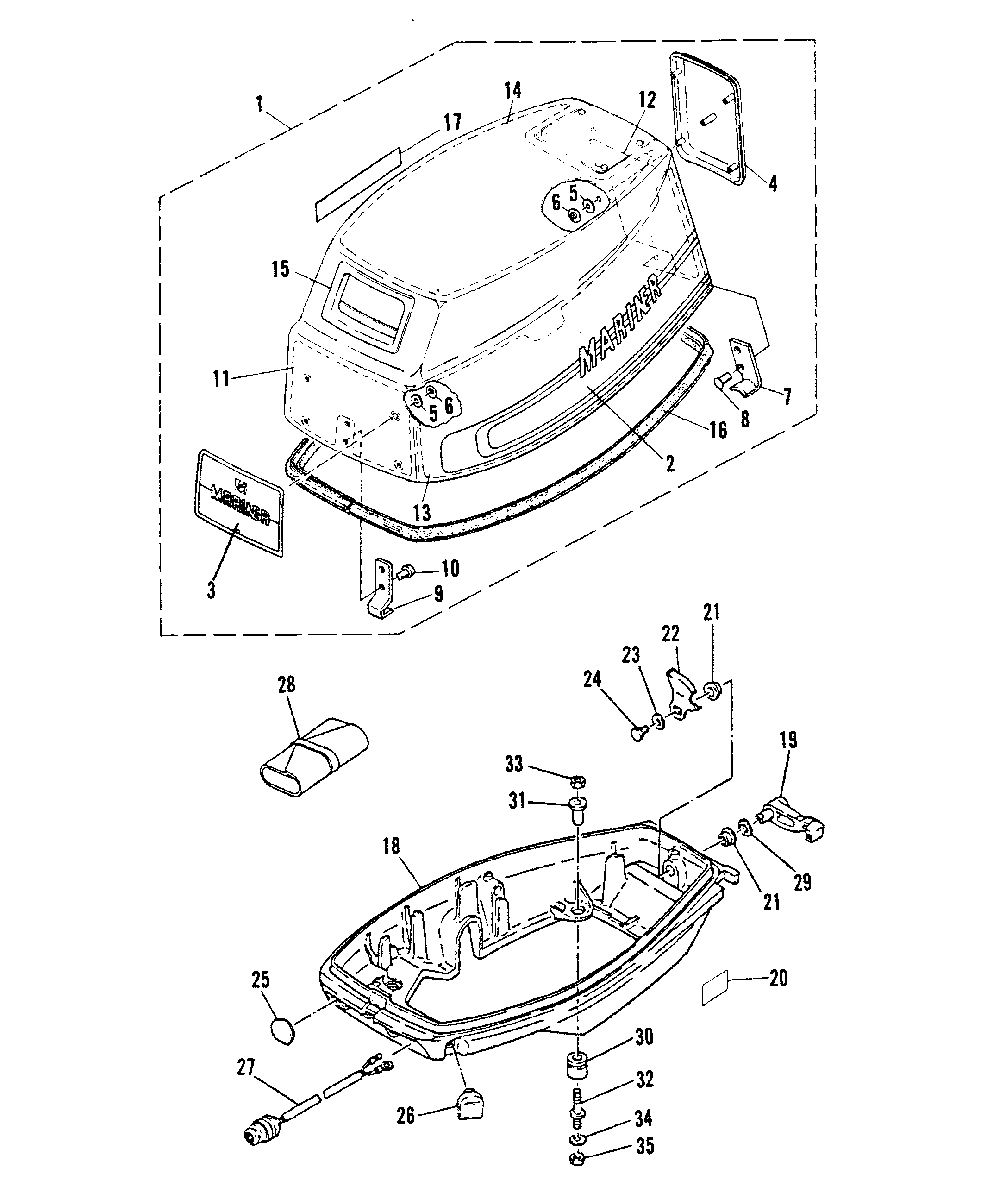

COWLING для Mariner - W25 (M) 648-019426 AND UP

  • №
    Артикул
    Название
  • 1
    2168-9387M TO COWL ASS'Y
    SERIAL 00022741-09999999
    TO COWL ASS'Y
    SERIAL 00022741-09999999
  • 1
    2168-9387M TOP COWL ASS'Y
    SERIAL 00000000-00022740
    TOP COWL ASS'Y
    SERIAL 00000000-00022740
  • 2
    37-95670M DECAL, SIDE AND REAR SET
    SERIAL 00022741-09999999
    DECAL, SIDE AND REAR SET
    SERIAL 00022741-09999999
  • 2
    37-81114M DECAL, SIDE SET
    SERIAL 00000000-00022740
    DECAL, SIDE SET
    SERIAL 00000000-00022740
  • 3
    37-95641M APPLIQUE, FRONT
    SERIAL 00022741-09999999
    APPLIQUE, FRONT
    SERIAL 00022741-09999999
  • 3
    82898M APPLIQUE, FRONT
    SERIAL 00000000-00335095
    APPLIQUE, FRONT
    SERIAL 00000000-00335095
  • 4
    82899M APPLIQUE, REAR
    SERIAL 00000000-00022740
    APPLIQUE, REAR
    SERIAL 00000000-00022740
  • 5
    12-80884M WASHER, APPLIQUE NUT
    SERIAL 00000000-00022740
    WASHER, APPLIQUE NUT
    SERIAL 00000000-00022740
  • 6
    11-82927M NUT, APPLIQUE ATTACHING
    NUT, APPLIQUE ATTACHING
  • 7
    83212M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 8
    17-84903M RIVET
    RIVET
  • 9
    83137M HOOK
    HOOK
  • 10
    17-83140M RIVET
    RIVET
  • 11
    84323M SOUND BLANKET
    SOUND BLANKET
  • 12
    84323M SOUND BLANKET
    SOUND BLANKET
  • 13
    83125M SOUND BLANKET
    SOUND BLANKET
  • 14
    83232M SOUND BLANKET
    SOUND BLANKET
  • 15
    80601M SEAL, RUBBER-STARTER
    SEAL, RUBBER-STARTER
  • 16
    84901M SEAL, TOP COWL
    SEAL, TOP COWL
  • 17
    37-81202M INDICATOR, SHIFT
    INDICATOR, SHIFT
  • 18
    2168-9349M BOTTOM COWL
    BOTTOM COWL
  • 19
    84913M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 20
    37-97036M GRAPHIC, SIDE (HP)
    GRAPHIC, SIDE (HP)
  • 21
    23-81949M BUSHING, COWL CLAMP LEVER
    BUSHING, COWL CLAMP LEVER
  • 22
    54-84914M CLAMP, COWL
    CLAMP, COWL
  • 23
    12-81794M WASHER
    WASHER
  • 24
    10-84088M BOLT
    BOLT
  • 25
    25-83988M GROMMET, BOTTOM COWL
    GROMMET, BOTTOM COWL
  • 26
    25-826981M GROMMET, BOTTOM COWL
    GROMMET, BOTTOM COWL
  • 27
    87-91622M STOP SWITCH
    STOP SWITCH
  • 28
    91-803581 TOOL KIT
    TOOL KIT
  • 29
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 30
    25-84910M GROMMET
    GROMMET
  • 31
    23-84911M COLLAR
    COLLAR
  • 32
    16-95505M BOLT, SPECIAL
    BOLT, SPECIAL
  • 33
    11-82383M NUT
    NUT
  • 34
    12-82217M WASHER
    WASHER
  • 35
    11-82383M NUT
    NUT
