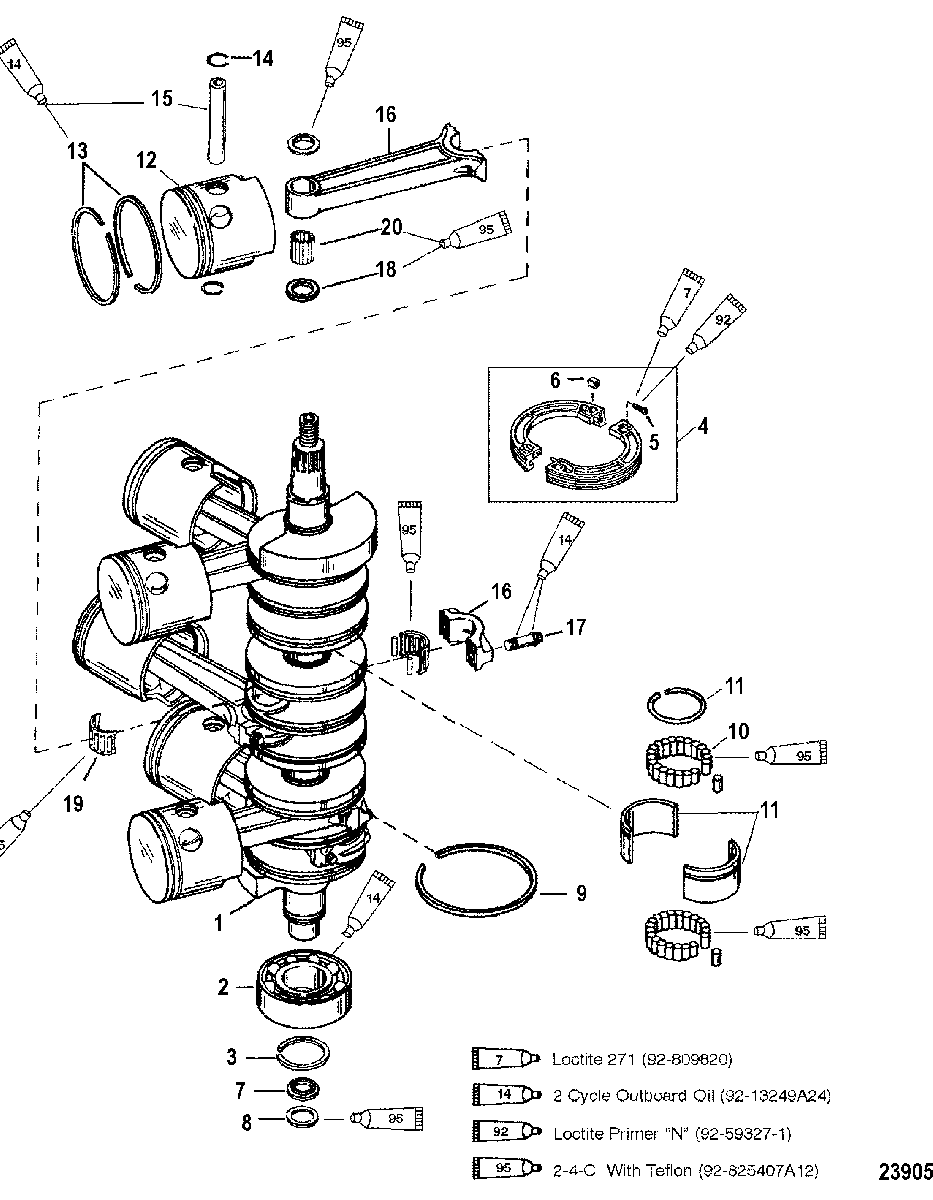

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - V-200 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    455-9536T4 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-67923T BEARING, Ball (LOWER)
    BEARING, Ball (LOWER)
  • 3
    53-67446 RING
    RING
  • 4
    43-14513A09 GEAR SEGMENT KIT, Drive
    GEAR SEGMENT KIT, Drive
  • 5
    10-854812 SCREW, (#6-32 x .630) Socket Button Head
    SCREW, (#6-32 x .630) Socket Button Head
  • 6
    11-854811 NUT, Special (#6-32)
    NUT, Special (#6-32)
  • 7
    54196A6 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 8
    65800 PACKING
    PACKING
  • 9
    39-67377T RING, Sealing, CRANKSHAFT
    RING, Sealing, CRANKSHAFT
  • 10
    31-16756A6 BEARING KIT
    BEARING KIT
  • 11
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 12
    765-7441T32 PISTON
    (STARBOARD-STANDARD) 135
    PISTON
    (STARBOARD-STANDARD) 135
  • 12
    765-7443A11 PISTON
    (STARBOARD-.015 O.S.) 135
    PISTON
    (STARBOARD-.015 O.S.) 135
  • 12
    765-7445T11 PISTON
    (STARBOARD-.030 OS.) 135
    PISTON
    (STARBOARD-.030 OS.) 135
  • 12
    765-7442T32 PISTON
    (PORT-STANDARD) 135
    PISTON
    (PORT-STANDARD) 135
  • 12
    765-7444A11 PISTON
    (PORT-.015 O.S.) 135
    PISTON
    (PORT-.015 O.S.) 135
  • 12
    765-7446A11 PISTON
    (PORT-.030 O.S.) 135
    PISTON
    (PORT-.030 O.S.) 135
  • 12
    785-9738T9 PISTON ASSEMBLY, Standard
    (STARBOARD-STANDARD) 150/XR6 MAGNUM III 175/200
    PISTON ASSEMBLY, Standard
    (STARBOARD-STANDARD) 150/XR6 MAGNUM III 175/200
  • 12
    785-9738T10 PISTON ASSEMBLY, .015 Oversize
    (STARBOARD-.015 O.S.) 150/XR6 MAGNUM III 175/200
    PISTON ASSEMBLY, .015 Oversize
    (STARBOARD-.015 O.S.) 150/XR6 MAGNUM III 175/200
  • 12
    785-9737T9 PISTON ASSEMBLY, Standard
    (PORT-STANDARD) 150/XR6 MAGNUM III 175/200
    PISTON ASSEMBLY, Standard
    (PORT-STANDARD) 150/XR6 MAGNUM III 175/200
  • 12
    785-9737A10 PISTON ASSEMBLY, .015 Oversize
    (PORT-.015 O.S.) 150/XR6 MAGNUM III 175/200
    PISTON ASSEMBLY, .015 Oversize
    (PORT-.015 O.S.) 150/XR6 MAGNUM III 175/200
  • 13
    39-93481A12 RING SET, Piston - Standard
    (STANDARD) 135
    RING SET, Piston - Standard
    (STANDARD) 135
  • 13
    39-78918A4 RING SET, Piston - .015 Oversize
    (.015 O.S.) 135
    RING SET, Piston - .015 Oversize
    (.015 O.S.) 135
  • 13
    39-85636A4 RING SET, Piston - .030 Oversize
    (.030 O.S.) 135
    RING SET, Piston - .030 Oversize
    (.030 O.S.) 135
  • 13
    39-822321A12 RING KIT, Piston - Standard
    (STD.) 150/XR6 MAGNUM III 175/200
    RING KIT, Piston - Standard
    (STD.) 150/XR6 MAGNUM III 175/200
  • 13
    39-822321A1 RING KIT, Piston - .015 Oversize
    (.015 O.S.) 150/XR6 MAGNUM III 175/200
    RING KIT, Piston - .015 Oversize
    (.015 O.S.) 150/XR6 MAGNUM III 175/200
  • 14
    53-857196 RING, Lock
    RING, Lock
  • 15
    NSS NOT SOLD SEPARATE, Piston Pin
    NOT SOLD SEPARATE, Piston Pin
  • 16
    644-818141A13 CONNECTING ROD KIT
    CONNECTING ROD KIT
  • 17
    10-763491 SCREW, (.312-24 x .875)
    SCREW, (.312-24 x .875)
  • 18
    12-8M0012298 WASHER
    WASHER
  • 19
    31-8M0045428 BEARING KIT
    BEARING KIT
  • 20
    29-822553 BEARING, Needle
    BEARING, Needle
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135)
    POWERHEAD ASSEMBLY
    (135)
  • -
    823434R97 POWERHEAD ASSEMBLY
    (150/XR6/MAGNUM III)
    POWERHEAD ASSEMBLY
    (150/XR6/MAGNUM III)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R97 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
