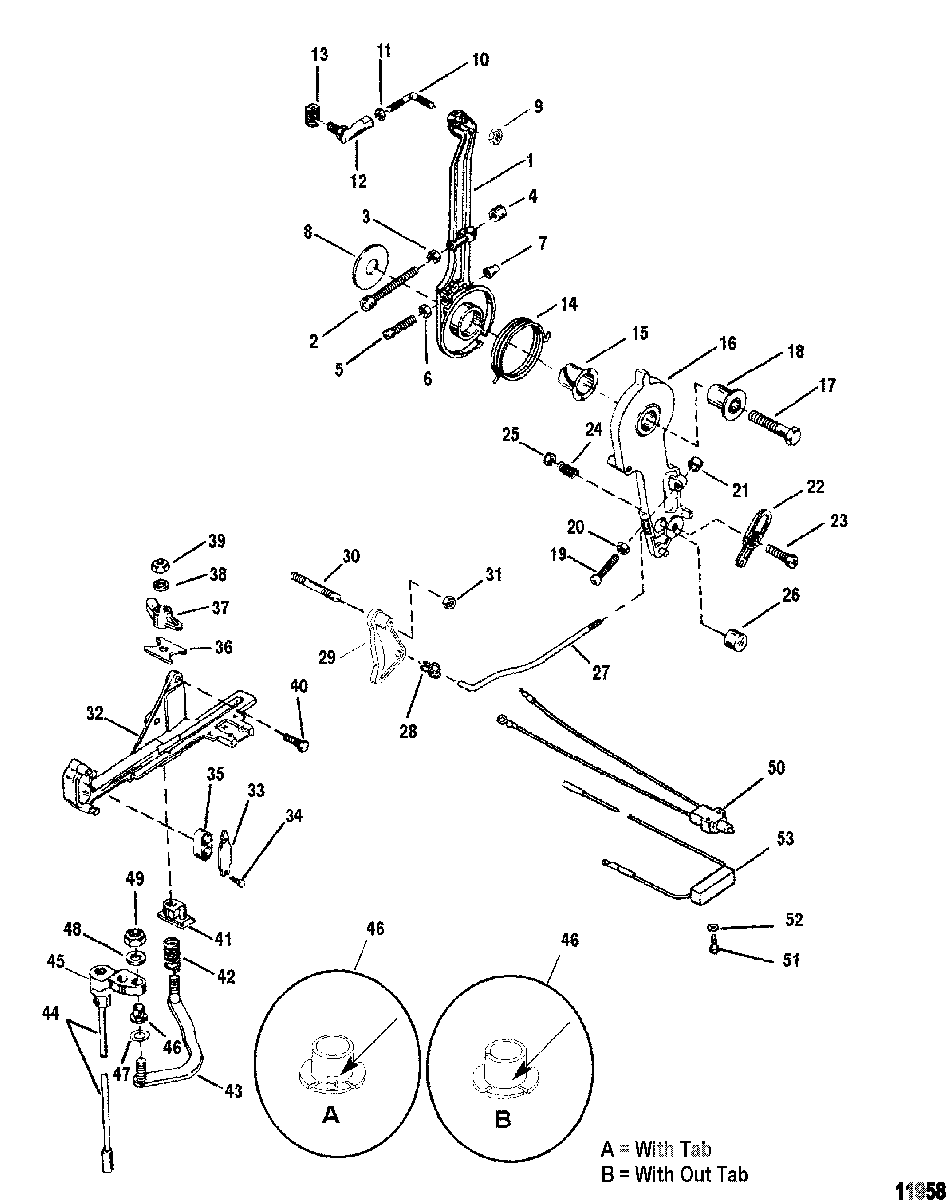

Throttle Lever And Shift Shaft для Mariner - V-200 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • 32
    814283A2 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 33
    98889 LATCH
    LATCH
  • 34
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 35
    39519 CUP
    CUP
  • 36
    52100 WEAR PLATE
    WEAR PLATE
  • 37
    8M0036768 LATCH
    LATCH
  • 38
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 39
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 40
    10-53167T SCREW, (.312-18 x .880)
    SCREW, (.312-18 x .880)
  • 41
    814284 GUIDE BLOCK
    GUIDE BLOCK
  • 42
    24-20099 SPRING
    SPRING
  • 43
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 44
    79932A16 SHIFT SHAFT ASSEMBLY
    (Long) (Use With Reference #46; With Tab; See Bubble A)
    SHIFT SHAFT ASSEMBLY
    (Long) (Use With Reference #46; With Tab; See Bubble A)
  • 44
    79932A17 SHIFT SHAFT ASSEMBLY
    (X-Long) Use With Reference #46;With Tab; SSee Bubble A)
    SHIFT SHAFT ASSEMBLY
    (X-Long) Use With Reference #46;With Tab; SSee Bubble A)
  • 45
    NSS NOT SOLD SEPARATE, Shift Lever (Upper)
    (Use With Refference #46; With Tab; See Bubble A)
    NOT SOLD SEPARATE, Shift Lever (Upper)
    (Use With Refference #46; With Tab; See Bubble A)
  • 46
    23-26600 BUSHING
    (Use With Refference #46; With Tab; See Bubble A)
    BUSHING
    (Use With Refference #46; With Tab; See Bubble A)
  • 44
    79932A16 SHIFT SHAFT ASSEMBLY
    (Long) (Use With Refference #46 Without Tab; See Bubble B)
    SHIFT SHAFT ASSEMBLY
    (Long) (Use With Refference #46 Without Tab; See Bubble B)
  • 44
    79932A17 SHIFT SHAFT ASSEMBLY
    (X-Long) Use With Refference #46;Without Tab;See Bubble B)
    SHIFT SHAFT ASSEMBLY
    (X-Long) Use With Refference #46;Without Tab;See Bubble B)
  • 45
    NSS NOT SOLD SEPARATE, Shift Shaft Lever (Upper)
    (Use With Refference #46;Without Tab;See Bubble B)
    NOT SOLD SEPARATE, Shift Shaft Lever (Upper)
    (Use With Refference #46;Without Tab;See Bubble B)
  • 46
    23-26856 BUSHING
    (Use With Refference #46;Without Tab;See Bubble B)
    BUSHING
    (Use With Refference #46;Without Tab;See Bubble B)
  • 47
    13-29720 WAVE WASHER
    WAVE WASHER
  • 48
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 49
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 50
    87-814281A1 IDLE STABILIZING SHIFT KIT
    (XR6/175 Magnum III)
    IDLE STABILIZING SHIFT KIT
    (XR6/175 Magnum III)
  • 51
    10-77478 SCREW, (#6-32 x .875)
    (XR6/175 Magnum III)
    SCREW, (#6-32 x .875)
    (XR6/175 Magnum III)
  • 52
    12-27882 WASHER
    (XR6/175 Magnum III)
    WASHER
    (XR6/175 Magnum III)
  • 53
    17461A3 RESISTOR MODULE
    (XR6/175 Magnum III)
    RESISTOR MODULE
    (XR6/175 Magnum III)
