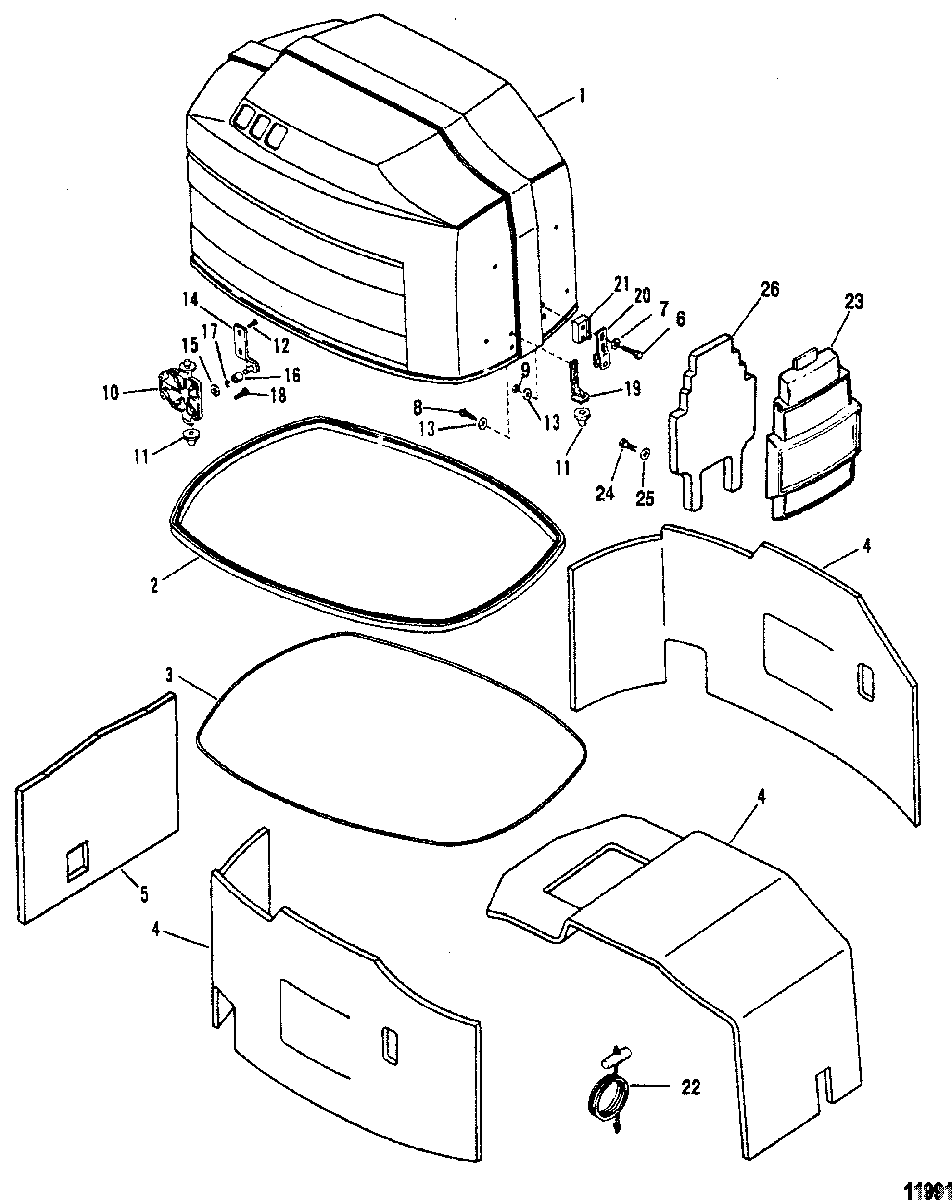

TOP COWL AND FRONT SHIELD для Mariner - V-200 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    2196-9742T88 TOP COWL ASSEMBLY (BLACK)(Without Decals)
    135/150/175/200
    TOP COWL ASSEMBLY (BLACK)(Without Decals)
    135/150/175/200
  • 1
    2196-9743T11 TOP COWL ASSEMBLY (SILVER)(Without Decals)
    135/150/175/200
    TOP COWL ASSEMBLY (SILVER)(Without Decals)
    135/150/175/200
  • 1
    2196-9742T92 TOP COWL ASSEMBLY (XR6)(Without Decals)
    TOP COWL ASSEMBLY (XR6)(Without Decals)
  • 1
    2196-9743T10 TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals)
    TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals)
  • 1
    2196-9743T10 TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals)
    TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals)
  • 1
    2196-9743A8 TOP COWL ASSEMBLY (150 TRACKER)(Without Decals)
    TOP COWL ASSEMBLY (150 TRACKER)(Without Decals)
  • 1
    2196-9743A13 TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals)
    TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals)
  • 2
    812784 SEAL
    SEAL
  • 3
    815478 SEAL
    SEAL
  • 4
    814823A1 SOUND BLANKT KIT
    SOUND BLANKT KIT
  • 4
    815225A1 SOUND BLANKET KIT
    (XR6/MAGNUM III/TRACKER 150)
    SOUND BLANKET KIT
    (XR6/MAGNUM III/TRACKER 150)
  • 5
    815227 SOUND BLANKET
    (XR6/MAGNUM III/TRACKER 150)
    SOUND BLANKET
    (XR6/MAGNUM III/TRACKER 150)
  • 6
    10-69267 SCREW, (.312-18 x 1.750)
    SCREW, (.312-18 x 1.750)
  • 7
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 8
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 9
    11-815848 NUT, (.312)
    NUT, (.312)
  • 10
    184741 BRACKET
    BRACKET
  • 11
    25-18506001 GROMMET
    GROMMET
  • 12
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 13
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 14
    813096A2 HOOK
    SN# 0G029197 & Below
    HOOK
    SN# 0G029197 & Below
  • 15
    12-36001 WASHER
    SN# 0G029197 & Below
    WASHER
    SN# 0G029197 & Below
  • 16
    815263 ROLLER
    SN# 0G029197 & Below
    ROLLER
    SN# 0G029197 & Below
  • 17
    53-13194 RING, Retaining
    SN# 0G029197 & Below
    RING, Retaining
    SN# 0G029197 & Below
  • 14
    813096A2 HOOK KIT
    SN# 0G029198 & Up
    HOOK KIT
    SN# 0G029198 & Up
  • 16
    815263 ROLLER
    SN# 0G029198 & Up
    ROLLER
    SN# 0G029198 & Up
  • 17
    53-8237951 RING, Retaining
    SN# 0G029198 & Up
    RING, Retaining
    SN# 0G029198 & Up
  • 18
    10-816992 SCREW
    SCREW
  • 19
    187021 LOCATOR
    LOCATOR
  • 20
    893763 BRACKET ASSEMBLY, Latch Roller
    BRACKET ASSEMBLY, Latch Roller
  • 21
    816838 SPACER
    SPACER
  • 22
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
    ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
  • 23
    18755A1 FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)
    FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)
  • 23
    18755A2 FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)
    FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)
  • 23
    18755A4 FRONT SHIELD ASSEMBLY (SILVER)(Without Decals)
    FRONT SHIELD ASSEMBLY (SILVER)(Without Decals)
  • 23
    18755A3 FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals)
    FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals)
  • 24
    10-77137 SCREW, (.190-16 x .620)
    SCREW, (.190-16 x .620)
  • 25
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 26
    813562 SEAL
    SEAL
