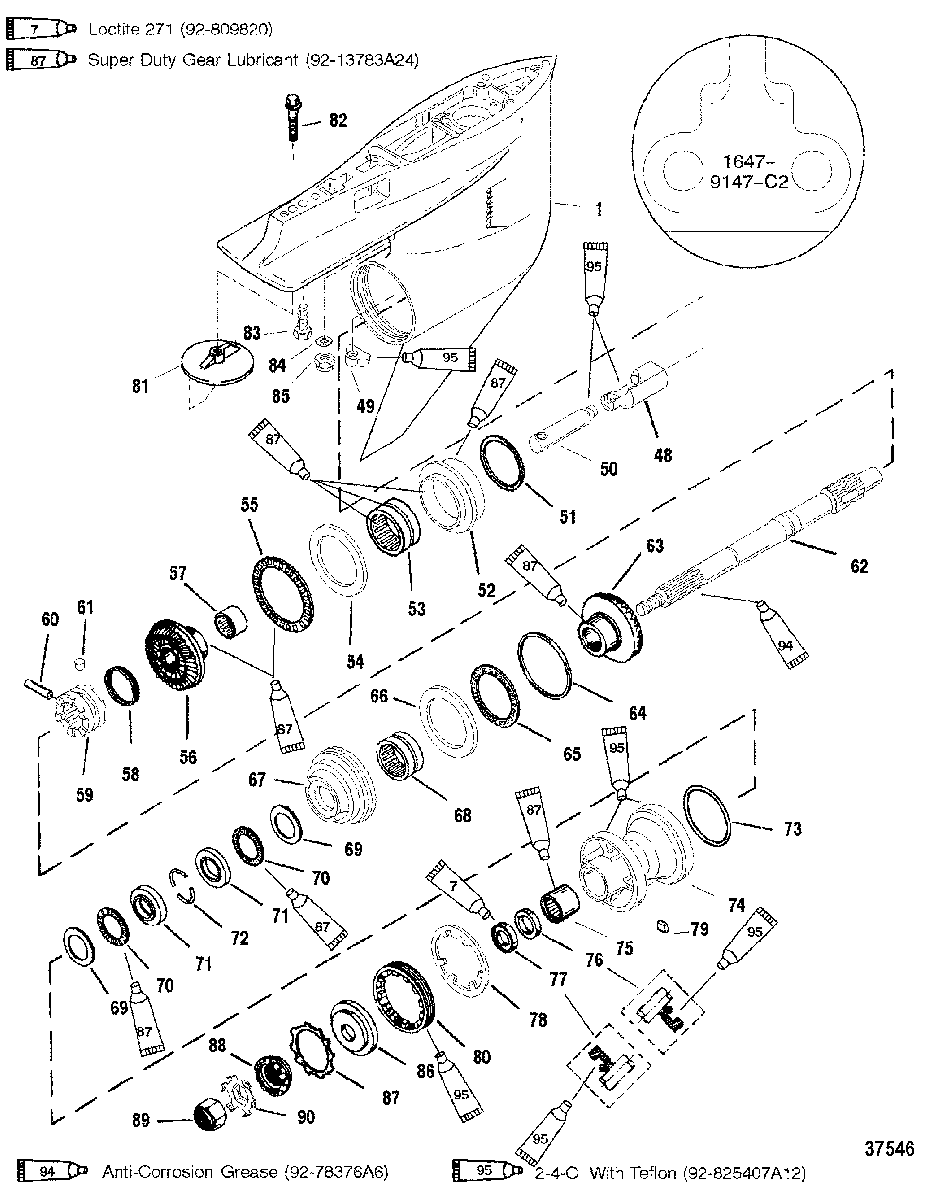

GEAR HSG(PROP SHAFT)(CNTR ROTATION) (S/N-0G438000, UP) для Mariner - V-200 (EFI) 0G303046 THRU 0G760299
-
№АртикулНазвание
-
11647-9148T93 GEAR HOUSING ASSEMBLY
(BASIC-BLACK)GEAR HOUSING ASSEMBLY
(BASIC-BLACK) -
11647-9148T93 GEAR HOUSING ASSEMBLY
(BASIC-GRAY)GEAR HOUSING ASSEMBLY
(BASIC-GRAY) -
6531-815480 BEARING, ThrustBEARING, Thrust
-
6612-815481 THRUST WASHERTHRUST WASHER
-
67828831A3 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
6831-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
6912-18448 THRUST WASHERTHRUST WASHER
-
7031-15842 BEARING, ThrustBEARING, Thrust
-
718182911 RACE, ThrustRACE, Thrust
-
72814605 KEEPERKEEPER
-
7325-31534 O-RINGO-RING
-
74818290A4 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7531-30956T BEARING, NeedleBEARING, Needle
-
7626-14077 SEAL, Oil (INSIDE)SEAL, Oil (INSIDE)
-
7726-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
7814-183231 TAB WASHERTAB WASHER
-
7928-30281 KEYKEY
-
808M2000347 RETAINERRETAINER
-
8131640T07 TRIM TABTRIM TAB
-
8197-76214Q5 ANODE KIT
(TRACKER)ANODE KIT
(TRACKER) -
8210-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
8310-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
8412-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
8511-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
8612-835467Q01 THRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTHRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8713-423511 LOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTLOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8812-31211Q03 WASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTWASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8911-52707Q1 PROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTPROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
9014-816629Q TAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
-26-89238A2 SEAL KITSEAL KIT
