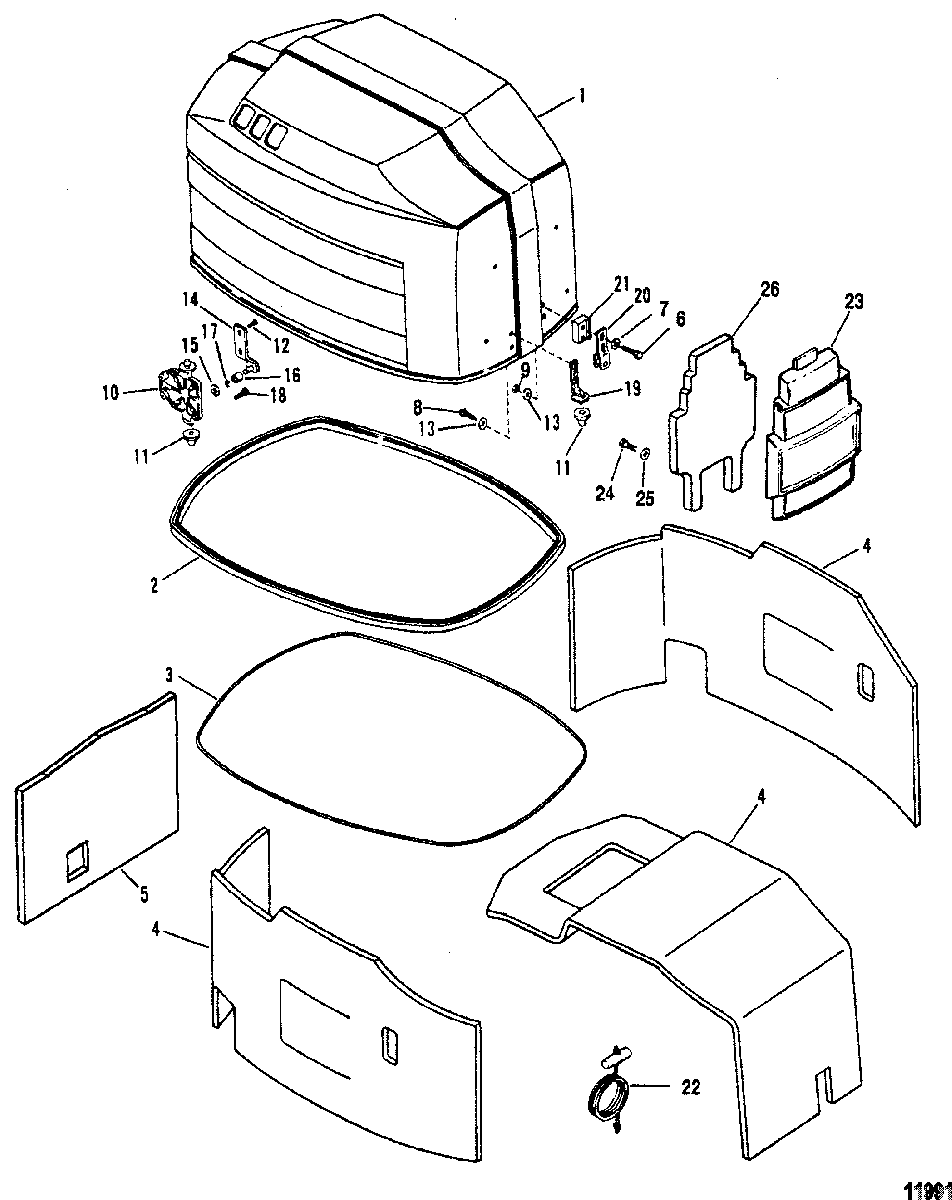

TOP COWL AND FRONT SHIELD для Mariner - V-175 0D082000 THRU 0G303045
-
№АртикулНазвание
-
12196-9742T88 TOP COWL ASSEMBLY (BLACK)(Without Decals)
135/150/175/200TOP COWL ASSEMBLY (BLACK)(Without Decals)
135/150/175/200 -
12196-9743T11 TOP COWL ASSEMBLY (SILVER)(Without Decals)
135/150/175/200TOP COWL ASSEMBLY (SILVER)(Without Decals)
135/150/175/200 -
12196-9742T92 TOP COWL ASSEMBLY (XR6)(Without Decals)TOP COWL ASSEMBLY (XR6)(Without Decals)
-
12196-9743T10 TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals)TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals)
-
12196-9743T10 TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals)TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals)
-
12196-9743A8 TOP COWL ASSEMBLY (150 TRACKER)(Without Decals)TOP COWL ASSEMBLY (150 TRACKER)(Without Decals)
-
12196-9743A13 TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals)TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals)
-
2812784 SEALSEAL
-
3815478 SEALSEAL
-
4814823A1 SOUND BLANKT KITSOUND BLANKT KIT
-
4815225A1 SOUND BLANKET KIT
(XR6/MAGNUM III/TRACKER 150)SOUND BLANKET KIT
(XR6/MAGNUM III/TRACKER 150) -
5815227 SOUND BLANKET
(XR6/MAGNUM III/TRACKER 150)SOUND BLANKET
(XR6/MAGNUM III/TRACKER 150) -
610-69267 SCREW, (.312-18 x 1.750)SCREW, (.312-18 x 1.750)
-
712-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
810-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
911-815848 NUT, (.312)NUT, (.312)
-
10184741 BRACKETBRACKET
-
1125-18506001 GROMMETGROMMET
-
1210-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1312-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
14813096A2 HOOK
SN# 0G029197 & BelowHOOK
SN# 0G029197 & Below -
1512-36001 WASHER
SN# 0G029197 & BelowWASHER
SN# 0G029197 & Below -
16815263 ROLLER
SN# 0G029197 & BelowROLLER
SN# 0G029197 & Below -
1753-13194 RING, Retaining
SN# 0G029197 & BelowRING, Retaining
SN# 0G029197 & Below -
14813096A2 HOOK KIT
SN# 0G029198 & UpHOOK KIT
SN# 0G029198 & Up -
16815263 ROLLER
SN# 0G029198 & UpROLLER
SN# 0G029198 & Up -
1753-8237951 RING, Retaining
SN# 0G029198 & UpRING, Retaining
SN# 0G029198 & Up -
1810-816992 SCREWSCREW
-
19187021 LOCATORLOCATOR
-
20893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
21816838 SPACERSPACER
-
2247341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
-
2318755A1 FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)
-
2318755A2 FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)
-
2318755A4 FRONT SHIELD ASSEMBLY (SILVER)(Without Decals)FRONT SHIELD ASSEMBLY (SILVER)(Without Decals)
-
2318755A3 FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals)FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals)
-
2410-77137 SCREW, (.190-16 x .620)SCREW, (.190-16 x .620)
-
2512-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
26813562 SEALSEAL
