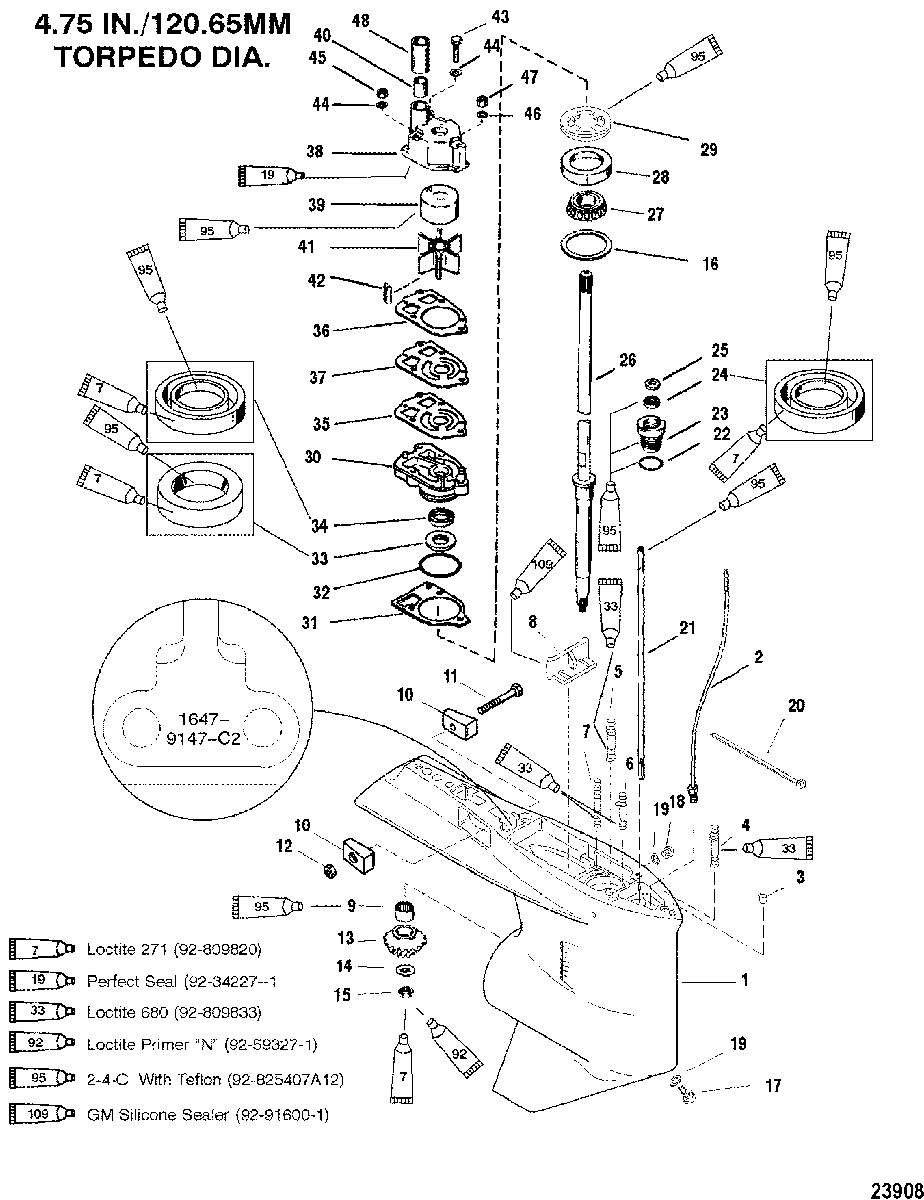

GEAR HOUSING(DRIVESHAFT)(STANDARD/COUNTER ROTATION) для Mariner - V-175 (EFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
11647-9148T93 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
222-85822A10 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
416-786382 STUD, (.437-14/.437-20 x 3.120)STUD, (.437-14/.437-20 x 3.120)
-
416-8M0034464 STUD, (.438 x 3.82 Inches)STUD, (.438 x 3.82 Inches)
-
516-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
616-8M0034463 STUD, (.312-18/.324-24 x 3.380)STUD, (.312-18/.324-24 x 3.380)
-
716-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
88M0039169 FILLER BLOCKFILLER BLOCK
-
931-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1097-826134Q ANODEANODE
-
1110-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1211-401386 NUT, (M6)NUT, (M6)
-
13NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-828174A2 or 43-828701A1)
(1.87:1 GEAR RATIO-15TEETH)NOT SOLD SEPARATE, Pinion Gear (Part of 43-828174A2 or 43-828701A1)
(1.87:1 GEAR RATIO-15TEETH) -
1412-92721 WASHER
(Included With Forward Gear Set)WASHER
(Included With Forward Gear Set) -
1511-35921 NUT, (.625-18)
(Included With Forward Gear Set)NUT, (.625-18)
(Included With Forward Gear Set) -
1615-8M0063267 SHIM SET
(Included With Forward Gear Set)SHIM SET
(Included With Forward Gear Set) -
1722-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
1810-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
1912-191833 WASHER, FiberWASHER, Fiber
-
2056762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
21789022 SHIFT SHAFTSHIFT SHAFT
-
2225-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
2323-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
2426-8164641 SEAL, OilSEAL, Oil
-
2512-77674 WASHERWASHER
-
2645-897624T DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
2645-897625T DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
2731-36387A1 BEARING, RollerBEARING, Roller
-
28NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
298245191 RETAINERRETAINER
-
3046-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
3127-426311 GASKETGASKET
-
3225-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
3326-89238 SEAL, OilSEAL, Oil
-
3426-16977 SEAL, OilSEAL, Oil
-
3527-8M0090319 GASKETGASKET
-
3627-858524 GASKETGASKET
-
37324351 FACE PLATEFACE PLATE
-
3846-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
3948752T INSERTINSERT
-
4026-38970 SEALSEAL
-
4147-89984T3 IMPELLERIMPELLER
-
4228-8M0032834 KEYKEY
-
4310-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
4412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4511-8267119 NUT, (.250-28)NUT, (.250-28)
-
4612-36001 WASHERWASHER
-
4711-13436 NUTNUT
-
4823-29804T SLEEVESLEEVE
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-46-96148A8 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-89238A2 SEAL KITSEAL KIT
