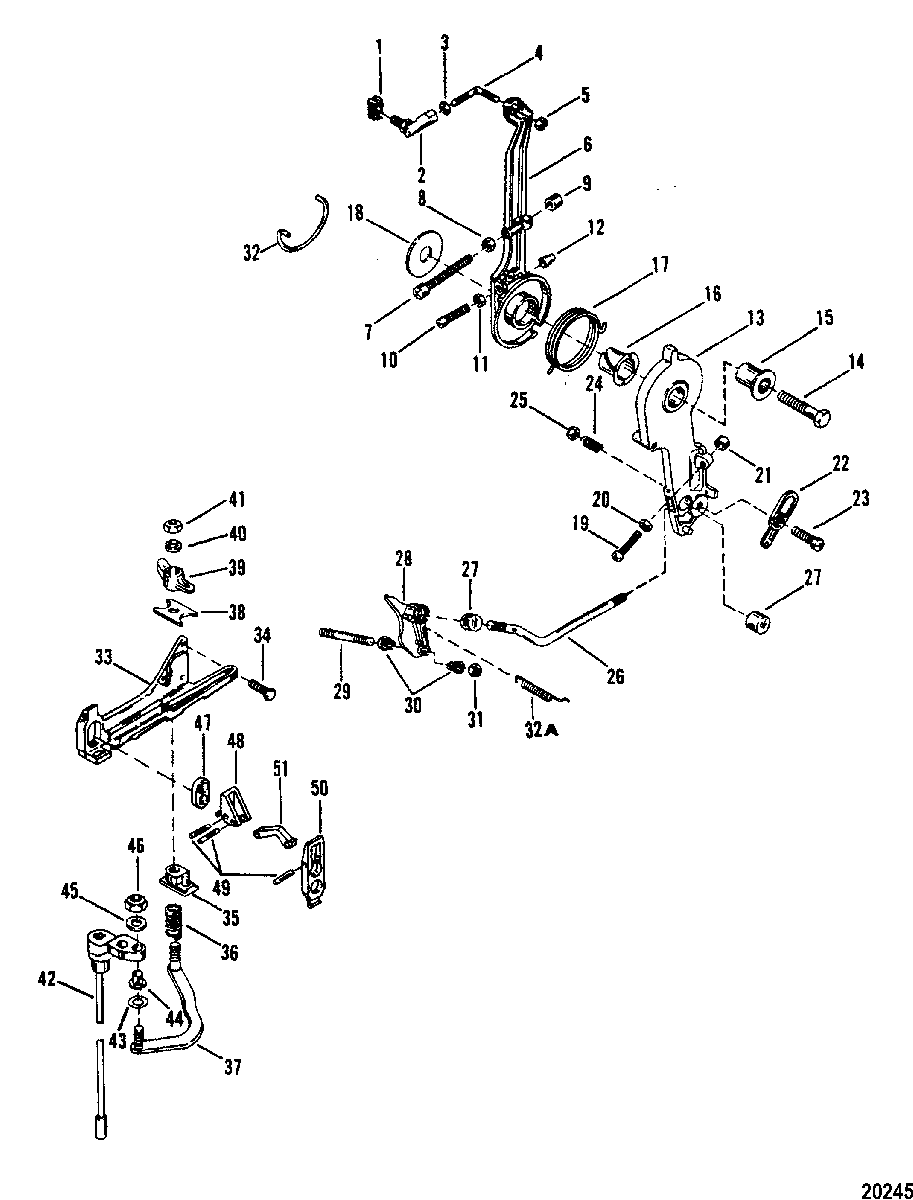

Throttle Lever and Shift Shaft для Mariner - V-150 5600162 THRU 0A904645
-
№АртикулНазвание
-
178497 BOOTBOOT
-
262459T BALL JOINT ASSEMBLYBALL JOINT ASSEMBLY
-
311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
476035 RODROD
-
511-46438 NUT, (#10-32)NUT, (#10-32)
-
641094A3 LEVER ASSEMBLYLEVER ASSEMBLY
-
710-64022 SCREW, (.250-20 x 2.125)
(1/4-20 THREAD)SCREW, (.250-20 x 2.125)
(1/4-20 THREAD) -
710-75168 SCREW
(1/4-28 THREAD)SCREW
(1/4-28 THREAD) -
811-64015 NUT, (.250-20)
(1/4-20 THREAD)NUT, (.250-20)
(1/4-20 THREAD) -
811-29598 NUT, (.250-28) Stainless Steel
(1/4-28 THREAD)NUT, (.250-28) Stainless Steel
(1/4-28 THREAD) -
926852 CAP, Nylon
(1/4-20 THREAD)CAP, Nylon
(1/4-20 THREAD) -
952023 CAP
(1/4-28 THREAD)CAP
(1/4-28 THREAD) -
1010-69560 SCREWSCREW
-
1111-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1248039 CAPCAP
-
13410952 LEVERLEVER
-
1410-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1523-55164 BUSHINGBUSHING
-
1623-55171 BUSHINGBUSHING
-
1724-68784 SPRINGSPRING
-
1812-46765 WASHERWASHER
-
1910-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
2126852 CAP, NylonCAP, Nylon
-
2239483 LATCHLATCH
-
2310-69026 SCREW, (.250-28 x .880)SCREW, (.250-28 x .880)
-
2424-20099 SPRINGSPRING
-
2511-826709109 NUT, (.250-28)NUT, (.250-28)
-
2679949 RODROD
-
2760572 BARRELBARREL
-
2886989 CAM, Throttle
SN# ME-6042945/MA-6038680 & BelowCAM, Throttle
SN# ME-6042945/MA-6038680 & Below -
2895791 CAM, Throttle
SN# ME-6042946/MA-6038681 & UpCAM, Throttle
SN# ME-6042946/MA-6038681 & Up -
2916-20353 STUD, (.250-28 x 1.750)STUD, (.250-28 x 1.750)
-
3023-26600 BUSHING
SN# ME-6443212/MA-6443817 & BelowBUSHING
SN# ME-6443212/MA-6443817 & Below -
3023-26856 BUSHING
SN# ME-6443213/MA-6443818 & UpBUSHING
SN# ME-6443213/MA-6443818 & Up -
3111-36069 NUTNUT
-
32A24-79977 SPRING
SN# ME-6443212/MA-6443817 & BelowSPRING
SN# ME-6443212/MA-6443817 & Below -
3224-41050 SPRING
SN# ME-6443213/MA-6443818 & UpSPRING
SN# ME-6443213/MA-6443818 & Up -
33814283A2 BRACKETBRACKET
-
3410-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
3537896 GUIDE BLOCKGUIDE BLOCK
-
3624-20099 SPRINGSPRING
-
3767073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
3852100 WEAR PLATEWEAR PLATE
-
398M0036768 LATCHLATCH
-
4012-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4111-36069 NUTNUT
-
4279932A16 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
4279932A17 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
4313-29720 WAVE WASHERWAVE WASHER
-
4423-26600 BUSHINGBUSHING
-
4512-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4611-36069 NUTNUT
-
4739519 CUPCUP
-
4887609A1 LEVERLEVER
-
4917-47175 PINPIN
-
5090211 COVERCOVER
-
5187609A1 LINKLINK
