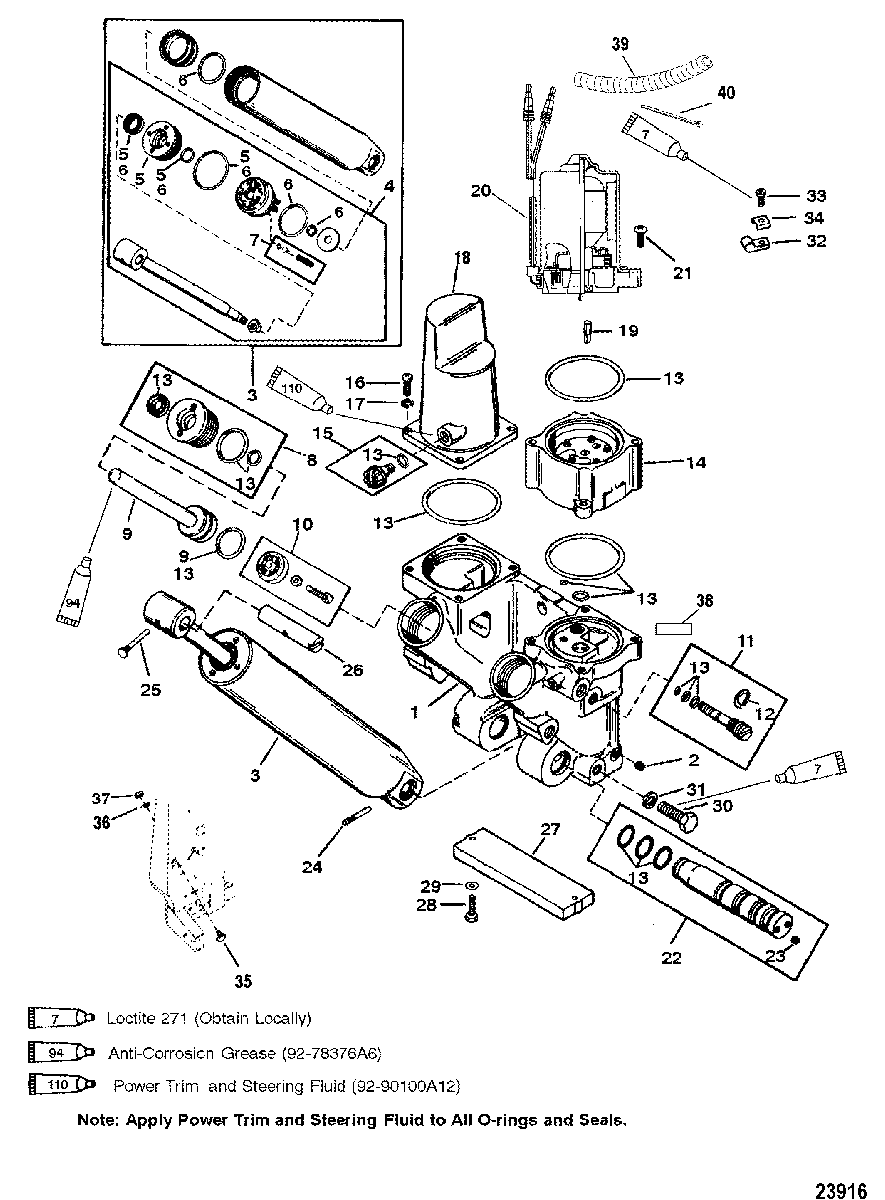

POWER TRIM COMPONENTS для Mariner - V-150 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • -
    855998A11 POWER TRIM ASSEMBLY, Complete
    POWER TRIM ASSEMBLY, Complete
  • 1
    811604F MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 2
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 3
    8M0078330 CYLINDER ASSEMBLY
    CYLINDER ASSEMBLY
  • 4
    8M0078330 ROD KIT, Trim Piston
    ROD KIT, Trim Piston
  • 5
    8M0090322 GUIDE KIT
    GUIDE KIT
  • 6
    811607A1 REPAIR KIT
    REPAIR KIT
  • 7
    8M0078330 CHECK VALVE KIT
    CHECK VALVE KIT
  • 8
    1100-8M0021648 GUIDE ASSEMBLY
    GUIDE ASSEMBLY
  • 9
    878413A1 PISTON/ROD ASSEMBLY, Power Trim
    (PORT)
    PISTON/ROD ASSEMBLY, Power Trim
    (PORT)
  • 9
    878414T01 PISTON/ROD ASSEMBLY, Power Trim
    (STBD.)
    PISTON/ROD ASSEMBLY, Power Trim
    (STBD.)
  • 10
    35-12184A1 TRIM FILTER ASSEMBLY
    TRIM FILTER ASSEMBLY
  • 11
    893929A01 MANUAL RELEASE ASSEMBLY
    MANUAL RELEASE ASSEMBLY
  • 12
    53-815949001 E RING
    E RING
  • 13
    811612A3 O-RING KIT
    O-RING KIT
  • 14
    811617T1 PUMP
    PUMP
  • 15
    19-811613 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 16
    10-4000327 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 17
    12-4002315 WASHER
    WASHER
  • 18
    811611 COVER
    COVER
  • 19
    828710 DRIVE JOINT
    DRIVE JOINT
  • 20
    8M0031551 MOTOR ASSEMBLY
    (BREAKDOWN ON POWER TRIM MOTOR)
    MOTOR ASSEMBLY
    (BREAKDOWN ON POWER TRIM MOTOR)
  • 21
    10-881768A1 SCREW
    (LONG)
    SCREW
    (LONG)
  • 21
    10-811616 SCREW
    (SHORT)
    SCREW
    (SHORT)
  • 22
    878241A03 SHAFT ASSEMBLY
    SHAFT ASSEMBLY
  • 23
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 24
    17-878267 PIN, Groove
    PIN, Groove
  • 25
    17-821539 PIN, Trilobe
    PIN, Trilobe
  • 26
    99625002 SHAFT
    SHAFT
  • 27
    97-818298Q1 ANODE KIT
    ANODE KIT
  • 28
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 29
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 30
    10-4000377 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 31
    12-4002319 WASHER
    WASHER
  • 32
    54-26550 CLAMP
    CLAMP
  • 33
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 34
    8M0084613 C WASHER
    C WASHER
  • 35
    8M0045383 STRIKER PLATE
    STRIKER PLATE
  • 36
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 37
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 38
    NSS NOT SOLD SEPARATE, Decal-Power Trim
    NOT SOLD SEPARATE, Decal-Power Trim
  • 39
    32-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
    CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
  • 40
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
