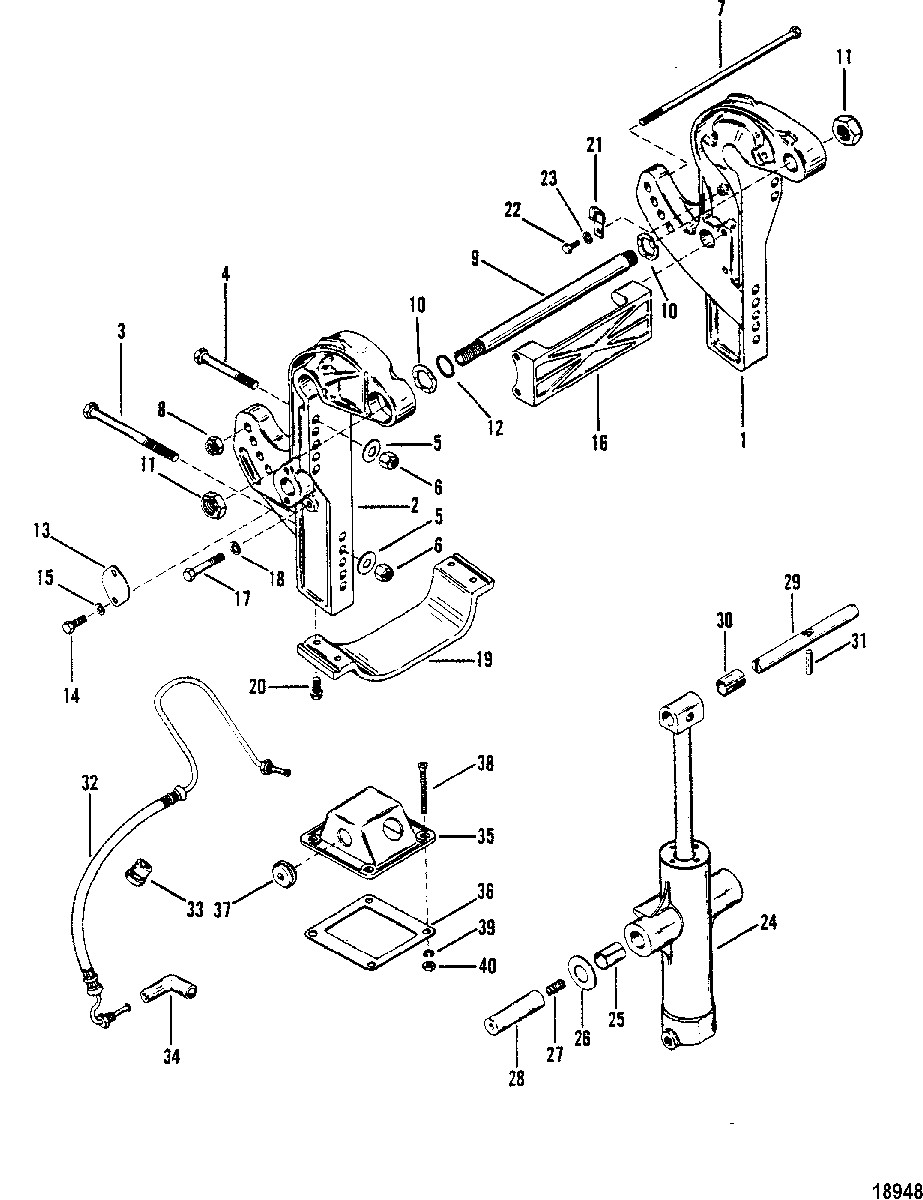

Transom Bracket(S/N-ME-5503247/MA-5600162 thru 6616990) для Mariner - V-150 Marathon 5600162 THRU 0A904645

  • №
    Артикул
    Название
  • 1
    1494-7476T1 BRACKET, Transom
    (BLACK)(PORT )
    BRACKET, Transom
    (BLACK)(PORT )
  • 2
    1495-7478T1 BRACKET, Transom
    (BLACK)(STARBOARD )
    BRACKET, Transom
    (BLACK)(STARBOARD )
  • 1
    1494-7476T6 BRACKET, Transom
    (GRAY)(PORT )
    BRACKET, Transom
    (GRAY)(PORT )
  • 2
    1495-7478T6 BRACKET, Transom
    (GRAY)(STARBOARD )
    BRACKET, Transom
    (GRAY)(STARBOARD )
  • 3
    10-677552 SCREW, (.500-20 x 6.500)
    SCREW, (.500-20 x 6.500)
  • 4
    10-677551 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 5
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 6
    11-35000 NUT, (.500-20) Stainless Steel
    NUT, (.500-20) Stainless Steel
  • 7
    10-87180 BOLT, (.500-20 x 11.00)
    BOLT, (.500-20 x 11.00)
  • 8
    11-82671317 NUT, (.500-20)
    NUT, (.500-20)
  • 9
    826125A1 TILT TUBE
    TILT TUBE
  • 10
    13-88750 WASHER
    WASHER
  • 11
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 11
    11-82671327 NUT
    (1"-14-BLACK)
    NUT
    (1"-14-BLACK)
  • 11
    11-82671327 NUT
    (1"-14-GRAY)
    NUT
    (1"-14-GRAY)
  • 12
    25-45711 O-RING, (.612 x .103)
    O-RING, (.612 x .103)
  • 13
    85026T PLATE
    PLATE
  • 14
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    85035T SPACER
    SPACER
  • 17
    10-70732 SCREW, (.250-20 x 2.00)
    SCREW, (.250-20 x 2.00)
  • 18
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 19
    89949A1 PLATE ASSEMBLY
    PLATE ASSEMBLY
  • 20
    10-90192 SCREW, (.250-20 x .875)
    SCREW, (.250-20 x .875)
  • 21
    54-88512 CLAMP
    CLAMP
  • 22
    10-88829 SCREW, (#10-24 x .500)
    SCREW, (#10-24 x .500)
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 24
    79610A6 TRIM CYLINDER ASSEMBLY
    TRIM CYLINDER ASSEMBLY
  • 25
    23-86489 BUSHING
    BUSHING
  • -
    79879A1 REPAIR KIT
    REPAIR KIT
  • 26
    12-85022 WASHER
    WASHER
  • 27
    24-30316 SPRING
    SPRING
  • 28
    17-85020T PIN, Pivot
    PIN, Pivot
  • 29
    85024 SHAFT
    SHAFT
  • 30
    23-86637 BEARING
    BEARING
  • 31
    17-91862 PIN
    PIN
  • 32
    32-89024A1 HOSE
    (PORT)
    HOSE
    (PORT)
  • 32
    32-89023A2 HOSE
    (STARBOARD)
    HOSE
    (STARBOARD)
  • 33
    25-12602002 GROMMET
    GROMMET
  • 34
    22-87207 CONNECTOR
    CONNECTOR
  • 35
    87871T COVER
    COVER
  • 36
    27-87775 GASKET
    GASKET
  • 37
    25-45507 GROMMET
    GROMMET
  • 38
    10-36070 SCREW, (#10-32 x 1.250)
    SCREW, (#10-32 x 1.250)
  • 38
    10-32866 SCREW, (#10-32 x 2.00) Stainless Steel
    SCREW, (#10-32 x 2.00) Stainless Steel
  • 39
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 40
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
