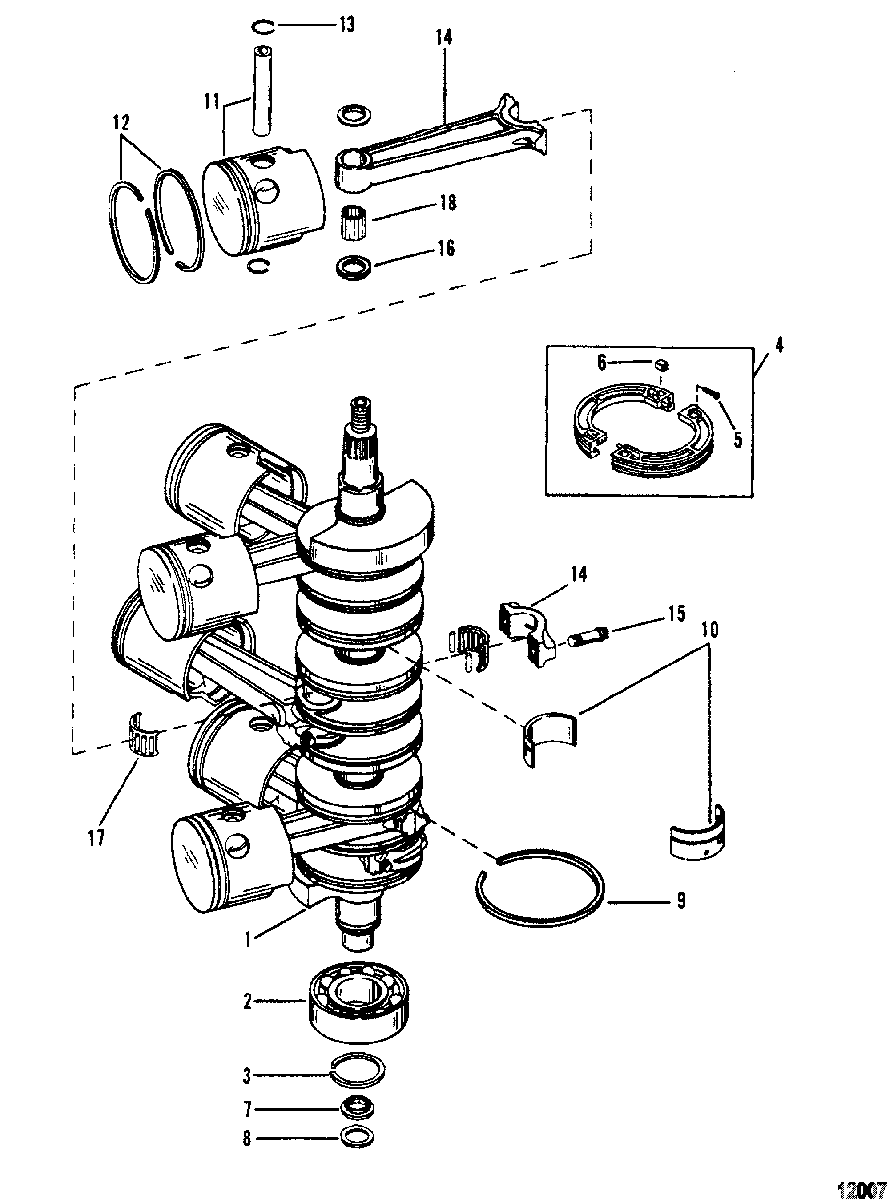

Crankshaft, Pistons And Connecting Rods для Mariner - V-150 (MAG/EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    455-9536T4 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-67923T BEARING, Ball, Lower
    BEARING, Ball, Lower
  • 3
    53-67446 RING
    RING
  • 4
    43-14513A09 GEAR SEGMENT KIT, Drive
    GEAR SEGMENT KIT, Drive
  • 5
    10-813073 SCREW, (#6-32 x .620) Socket Head
    SCREW, (#6-32 x .620) Socket Head
  • 6
    11-813134 NUT, (#6-32) Special
    NUT, (#6-32) Special
  • 7
    54196A6 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 8
    65800 PACKING
    PACKING
  • 9
    39-67377T RING, Sealing, Sealing - Crankshaft
    RING, Sealing, Sealing - Crankshaft
  • 10
    31-16756A6 BEARING KIT, Crankshaft
    BEARING KIT, Crankshaft
  • 11
    785-9738T9 PISTON ASSEMBLY, Starboard - Standard
    SN# 0G052594 & Below
    PISTON ASSEMBLY, Starboard - Standard
    SN# 0G052594 & Below
  • 11
    785-9738T10 PISTON ASSEMBLY, Starboard (.015 O.S.)
    SN# 0G052594 & Below
    PISTON ASSEMBLY, Starboard (.015 O.S.)
    SN# 0G052594 & Below
  • 11
    785-9737T9 PISTON ASSEMBLY, Port - Standard
    SN# 0G052594 & Below
    PISTON ASSEMBLY, Port - Standard
    SN# 0G052594 & Below
  • 11
    785-9737A10 PISTON ASSEMBLY, Port (.015 O.S.)
    SN# 0G052594 & Below
    PISTON ASSEMBLY, Port (.015 O.S.)
    SN# 0G052594 & Below
  • 12
    39-815515A12 RING SET, Piston, Standard (1.50 MM)
    SN# 0G052594 & Below
    RING SET, Piston, Standard (1.50 MM)
    SN# 0G052594 & Below
  • 12
    39-815268A4 RING SET, Piston (.015 O.S.) (1.50 MM)
    SN# 0G052594 & Below
    RING SET, Piston (.015 O.S.) (1.50 MM)
    SN# 0G052594 & Below
  • 13
    53-857196 RING, Lock
    SN# 0G052594 & Below
    RING, Lock
    SN# 0G052594 & Below
  • 11
    785-9738T9 PISTON ASSEMBLY, Standard, Starboard - Standard
    SN# 0G052595 & Up
    PISTON ASSEMBLY, Standard, Starboard - Standard
    SN# 0G052595 & Up
  • 11
    785-9738T10 PISTON ASSEMBLY, .015 Oversize, Starboard (.015 O.S.)
    SN# 0G052595 & Up
    PISTON ASSEMBLY, .015 Oversize, Starboard (.015 O.S.)
    SN# 0G052595 & Up
  • 11
    785-9737T9 PISTON ASSEMBLY, Standard, Port Standard
    SN# 0G052595 & Up
    PISTON ASSEMBLY, Standard, Port Standard
    SN# 0G052595 & Up
  • 11
    785-9737A10 PISTON ASSEMBLY, .015 Oversize, Port (.015 O.S.)
    SN# 0G052595 & Up
    PISTON ASSEMBLY, .015 Oversize, Port (.015 O.S.)
    SN# 0G052595 & Up
  • 12
    39-822321A12 RING KIT, Piston - Standard, Standard (2MM)
    SN# 0G052595 & Up
    RING KIT, Piston - Standard, Standard (2MM)
    SN# 0G052595 & Up
  • 12
    39-822321A1 RING KIT, Piston - .015 Oversize (.015 O.S.) (2MM)
    SN# 0G052595 & Up
    RING KIT, Piston - .015 Oversize (.015 O.S.) (2MM)
    SN# 0G052595 & Up
  • 13
    53-857196 RING, Lock
    SN# 0G052595 & Up
    RING, Lock
    SN# 0G052595 & Up
  • 14
    644-818141A13 CONNECTING ROD KIT
    CONNECTING ROD KIT
  • 15
    10-763491 SCREW, (.312-24 x .875), Connecting Rod
    SCREW, (.312-24 x .875), Connecting Rod
  • 16
    12-8M0012298 WASHER, Needle Locating
    WASHER, Needle Locating
  • 17
    31-8M0045428 BEARING KIT
    BEARING KIT
  • 18
    29-822553 BEARING, Needle, Piston End
    BEARING, Needle, Piston End
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
