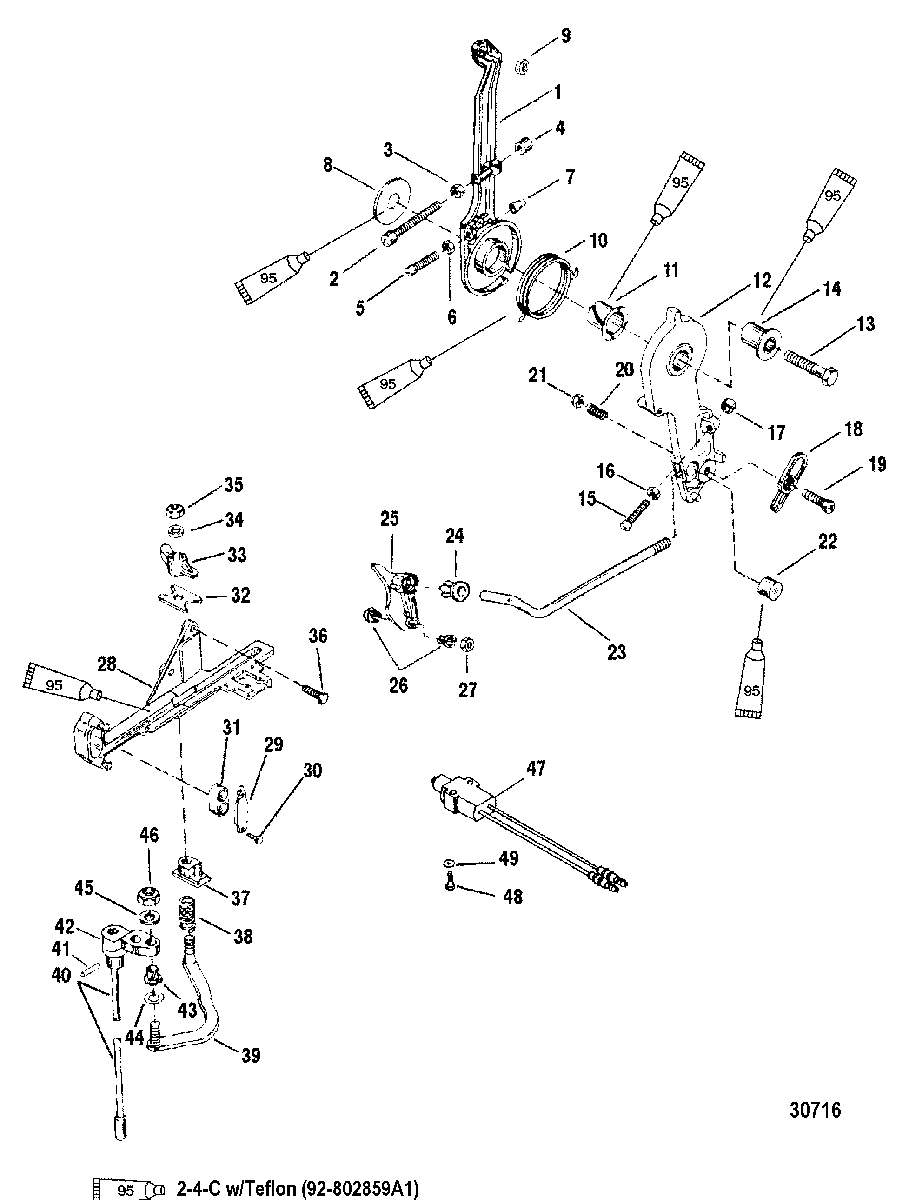

THROTTLE LEVER AND SHIFT SHAFT для Mariner - V-150 (EFI) 0G960500 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    41094A3 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 2
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 3
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 4
    26852 CAP, Nylon
    CAP, Nylon
  • 5
    10-13627 SCREW, (.190-32 x 1.250)
    SCREW, (.190-32 x 1.250)
  • 6
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 7
    48039 CAP
    CAP
  • 8
    12-46765 WASHER, (.390 x 1.50 x .120)
    WASHER, (.390 x 1.50 x .120)
  • 9
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 10
    24-823235 SPRING
    SPRING
  • 11
    23-55171 BUSHING
    BUSHING
  • 12
    410952 LEVER
    LEVER
  • 13
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 14
    23-55164 BUSHING
    BUSHING
  • 15
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 16
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 17
    26852 CAP, Nylon
    CAP, Nylon
  • 18
    39483 LATCH
    LATCH
  • 19
    10-69026 SCREW, (.250-28 x .880)
    SCREW, (.250-28 x .880)
  • 20
    24-20099 SPRING
    SPRING
  • 21
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 22
    14638 BARREL
    BARREL
  • 23
    14634 ROD
    ROD
  • 24
    23-932481 BUSHING
    BUSHING
  • 25
    8142392 CAM
    CAM
  • 26
    23-26856 BUSHING
    BUSHING
  • 27
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 28
    814283T6 BRACKET
    BRACKET
  • 29
    98889 LATCH
    LATCH
  • 30
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 31
    39519 CUP
    CUP
  • 32
    52100 WEAR PLATE
    WEAR PLATE
  • 33
    8M0036768 LATCH
    LATCH
  • 34
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 35
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 36
    10-53167T SCREW, (.312-18 x .880)
    SCREW, (.312-18 x .880)
  • 37
    814284 GUIDE BLOCK
    GUIDE BLOCK
  • 38
    24-20099 SPRING
    SPRING
  • 39
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 40
    79932A16 SHIFT SHAFT ASSEMBLY
    (LONG)
    SHIFT SHAFT ASSEMBLY
    (LONG)
  • 40
    79932A17 SHIFT SHAFT ASSEMBLY
    (X-LONG)
    SHIFT SHAFT ASSEMBLY
    (X-LONG)
  • 41
    NSS NOT SOLD SEPARATE, ROLL PIN
    NOT SOLD SEPARATE, ROLL PIN
  • 42
    NSS NOT SOLD SEPARATE, SHIFT SHAFT LEVER, Upper
    NOT SOLD SEPARATE, SHIFT SHAFT LEVER, Upper
  • 43
    23-26856 BUSHING
    BUSHING
  • 44
    13-29720 WAVE WASHER
    WAVE WASHER
  • 45
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 46
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 47
    87-858863A1 SWITCH
    (150/175)
    SWITCH
    (150/175)
  • 48
    10-77478 SCREW, (#6-32 x .875)
    (150/175)
    SCREW, (#6-32 x .875)
    (150/175)
  • 49
    12-27882 WASHER
    (150/175)
    WASHER
    (150/175)
