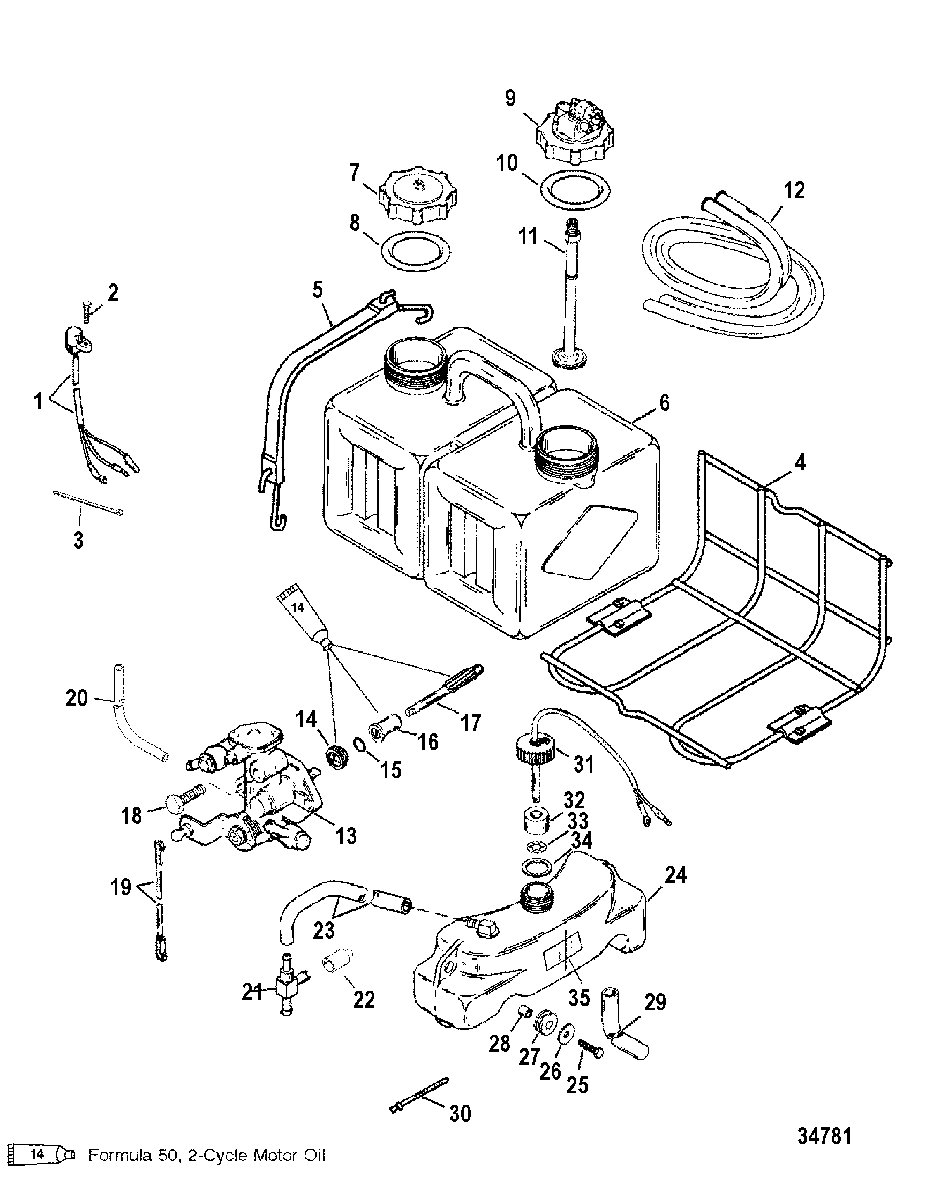

OIL INJECTION COMPONENTS для Mariner - V-150 (EFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
356762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
412335A1 BRACKET KITBRACKET KIT
-
512323A1 CORD/HOOK KITCORD/HOOK KIT
-
61257-87421 TANKTANK
-
736-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
825-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
9816190A4 HOUSING ASSEMBLY, AdapterHOUSING ASSEMBLY, Adapter
-
1025-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
1132-99802 TUBETUBE
-
1232-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
13815699T PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
148141032 BUSHING, WormBUSHING, Worm
-
1525-11379 O-RINGO-RING
-
1623-41429A2 BEARING ASSEMBLYBEARING ASSEMBLY
-
1743-14563 GEAR, DrivenGEAR, Driven
-
1810-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
1810-41507 SCREW, (#10-32 x 1.120)SCREW, (#10-32 x 1.120)
-
191938512 LINK ASSEMBLYLINK ASSEMBLY
-
2032-82381335 TUBING, (15.00 Inches Bulk), Cut to 7 InchesTUBING, (15.00 Inches Bulk), Cut to 7 Inches
-
2122-424254 FITTINGFITTING
-
22NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
2332-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 6 InchesHOSE, (57.00 Inches Bulk), Cut to 6 Inches
-
24994436 RESERVOIRRESERVOIR
-
2510-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2612-42118 WASHERWASHER
-
2725-42117 GROMMETGROMMET
-
2823-42116 BUSHINGBUSHING
-
2932-82381455 TUBING, (25.00 Inches Bulk), Cut to 4-3/4 InchesTUBING, (25.00 Inches Bulk), Cut to 4-3/4 Inches
-
3054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3136-43300A9 CAP ASSEMBLYCAP ASSEMBLY
-
3299022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3311-99265 PUSH NUTPUSH NUT
-
3427-43307T GASKETGASKET
-
35NSS NOT SOLD SEPARATE, Decal-Reservoir WarningNOT SOLD SEPARATE, Decal-Reservoir Warning
