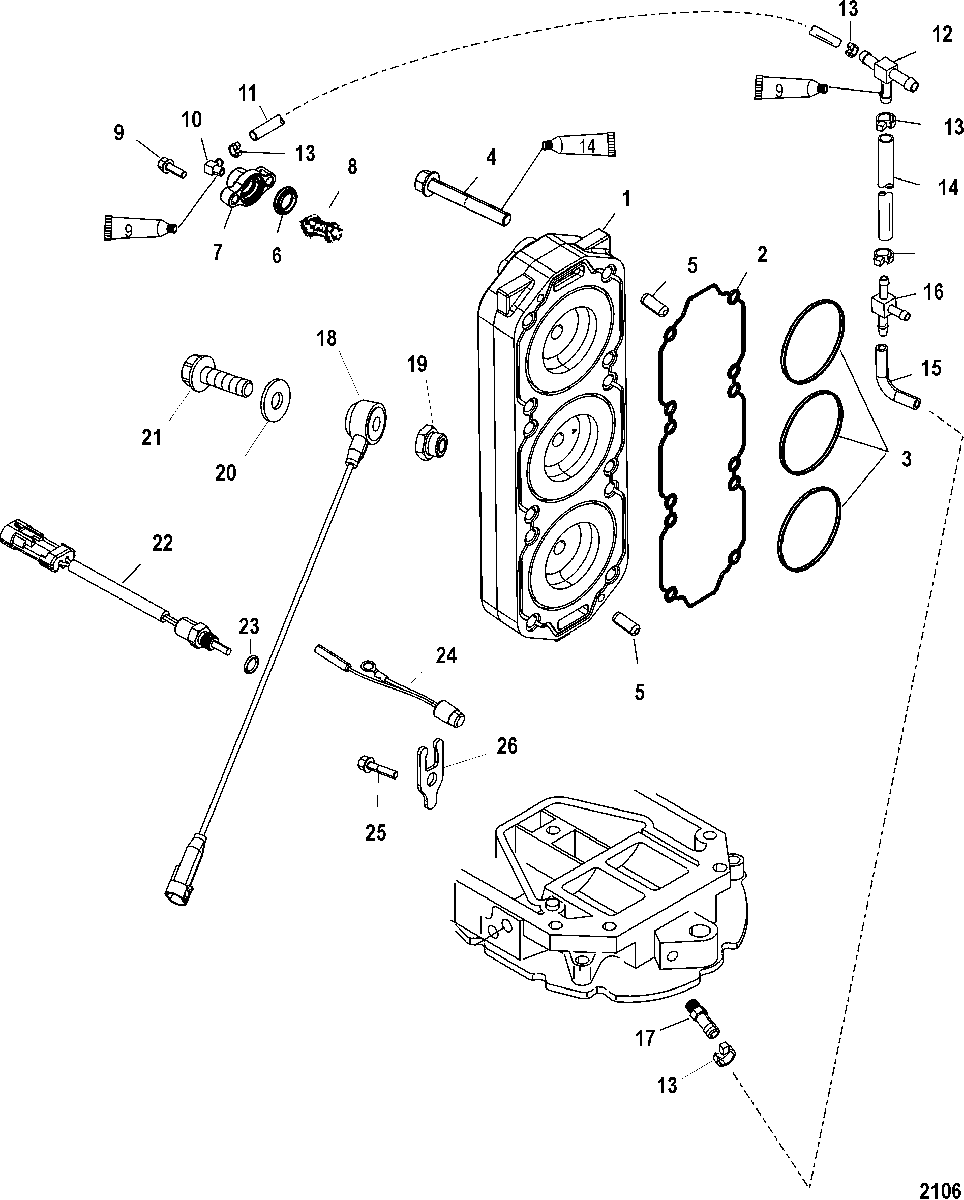

Cylinder Head для Mariner - V-150 EFI (2.5L) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    858281A9 CYLINDER HEAD KIT
    (150)
    CYLINDER HEAD KIT
    (150)
  • 1
    858281A10 CYLINDER HEAD ASSEMBLY
    (200)
    CYLINDER HEAD ASSEMBLY
    (200)
  • 2
    8584521 SEAL
    SEAL
  • 3
    8597721 SEAL
    SEAL
  • 4
    10-8M0125882 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 5
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 6
    27-62386001 GASKET
    SN# 0T979999 & Below
    GASKET
    SN# 0T979999 & Below
  • 6
    27-62386001 GASKET
    SN# 0T980000 & Up
    GASKET
    SN# 0T980000 & Up
  • 7
    90390A1 COVER KIT
    COVER KIT
  • 8
    75692 THERMOSTAT
    THERMOSTAT
  • 9
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 10
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 11
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 Inches)
    HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 Inches)
  • 12
    22-68728 FITTING
    FITTING
  • 13
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 14
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 Inches)
    HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 Inches)
  • 15
    32-827602002 HOSE
    HOSE
  • 16
    22-815914 T-FITTING, To Telltale
    T-FITTING, To Telltale
  • 17
    22-897722 FITTING, Straight
    FITTING, Straight
  • 18
    8M6003194 SENSOR ASSEMBLY, Knock
    (200)
    SENSOR ASSEMBLY, Knock
    (200)
  • 19
    882841 ADAPTOR
    (200)
    ADAPTOR
    (200)
  • 20
    12-4002319 WASHER
    (200)
    WASHER
    (200)
  • 21
    10-87810178 SCREW, (M10 x 35)
    (200)
    SCREW, (M10 x 35)
    (200)
  • 22
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 23
    25-896699 O-RING, (.351 x .072)
    O-RING, (.351 x .072)
  • 24
    13536A13 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 25
    10-81893414 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 26
    137151 RETAINER
    RETAINER
  • -
    27-8M0046715 GASKET SET
    GASKET SET
  • -
    883511T04 POWERHEAD ASSEMBLY
    (150) SN# 0T979999 & Below
    POWERHEAD ASSEMBLY
    (150) SN# 0T979999 & Below
  • -
    883511T04 POWERHEAD ASSEMBLY
    (150) SN# 0T980000 & Up
    POWERHEAD ASSEMBLY
    (150) SN# 0T980000 & Up
  • -
    883600T04 POWERHEAD ASSEMBLY
    (200) SN# 0T979999 & Below
    POWERHEAD ASSEMBLY
    (200) SN# 0T979999 & Below
  • -
    883600T04 POWERHEAD ASSEMBLY
    (200) SN# 0T980000 & Up
    POWERHEAD ASSEMBLY
    (200) SN# 0T980000 & Up
