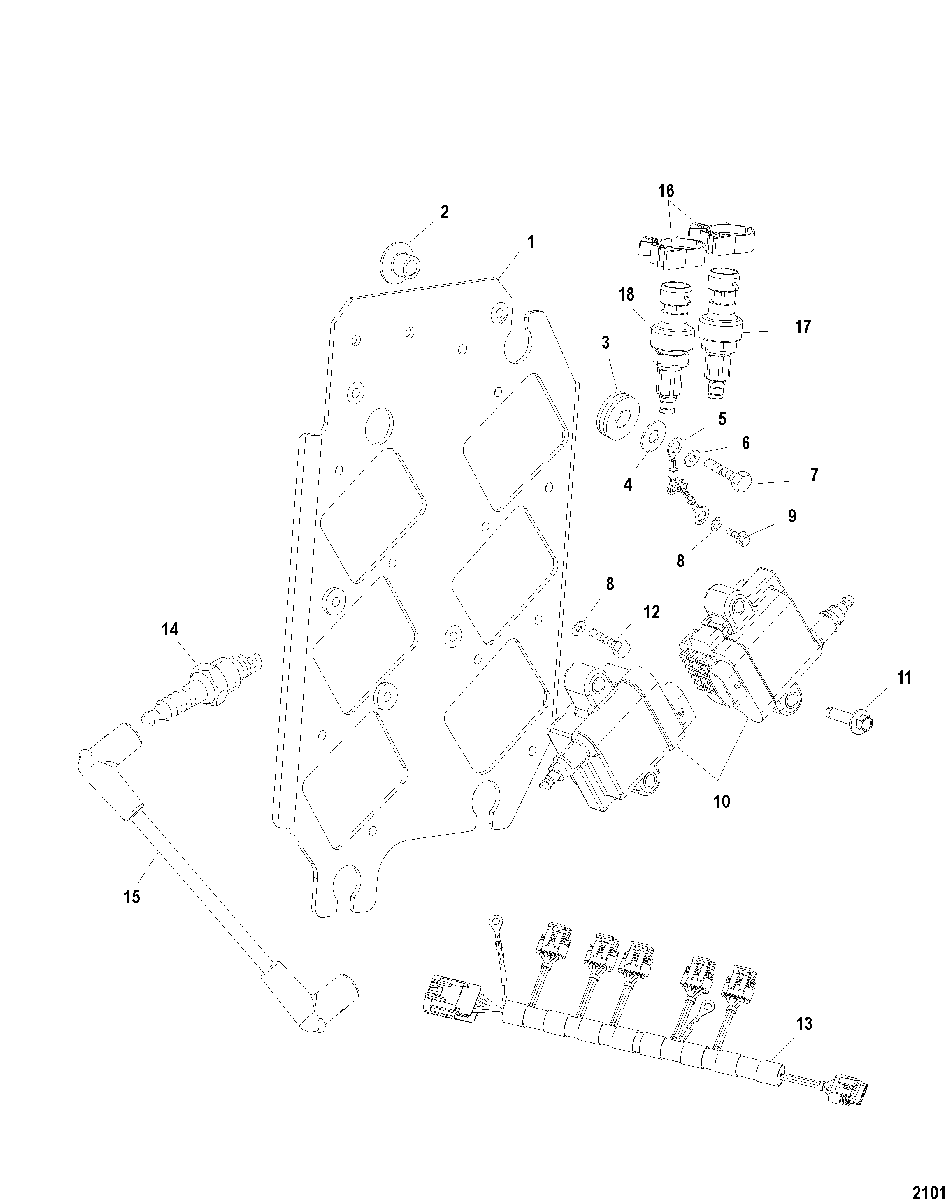

COIL PLATE ASSEMBLY для Mariner - V-150 EFI (2.5L) 0T409000 THRU 0T800999

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Coil Plate Assembly-Complete
    NOT SOLD SEPARATE, Coil Plate Assembly-Complete
  • 1
    880188F1 PLATE, Coil
    PLATE, Coil
  • 2
    23-8502341 BUSHING
    BUSHING
  • 3
    25-833155 GROMMET
    GROMMET
  • 4
    12-49436 WASHER
    WASHER
  • 5
    84-858414A1 CABLE ASSEMBLY, Braided
    CABLE ASSEMBLY, Braided
  • 6
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 7
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 8
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 9
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 10
    300-8M0077471 COIL KIT
    COIL KIT
  • 11
    10-82129130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 12
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 13
    84-882757T1 HARNESS ASSEMBLY, Coil
    HARNESS ASSEMBLY, Coil
  • -
    879346A51 HARNESS ASSEMBLY, 5 Pin
    HARNESS ASSEMBLY, 5 Pin
  • 14
    33-14814Q SPARK PLUG, (NGK # BPZ8HS-10)
    SPARK PLUG, (NGK # BPZ8HS-10)
  • 15
    84-881908T CABLE SET, Hi Tension
    CABLE SET, Hi Tension
  • 16
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 17
    881879A7 SENSOR KIT, (0-50 PSI)
    (TAN)
    SENSOR KIT, (0-50 PSI)
    (TAN)
  • 18
    881879T11 SENSOR, (0 - 100 PSI)
    (BLACK)
    SENSOR, (0 - 100 PSI)
    (BLACK)
