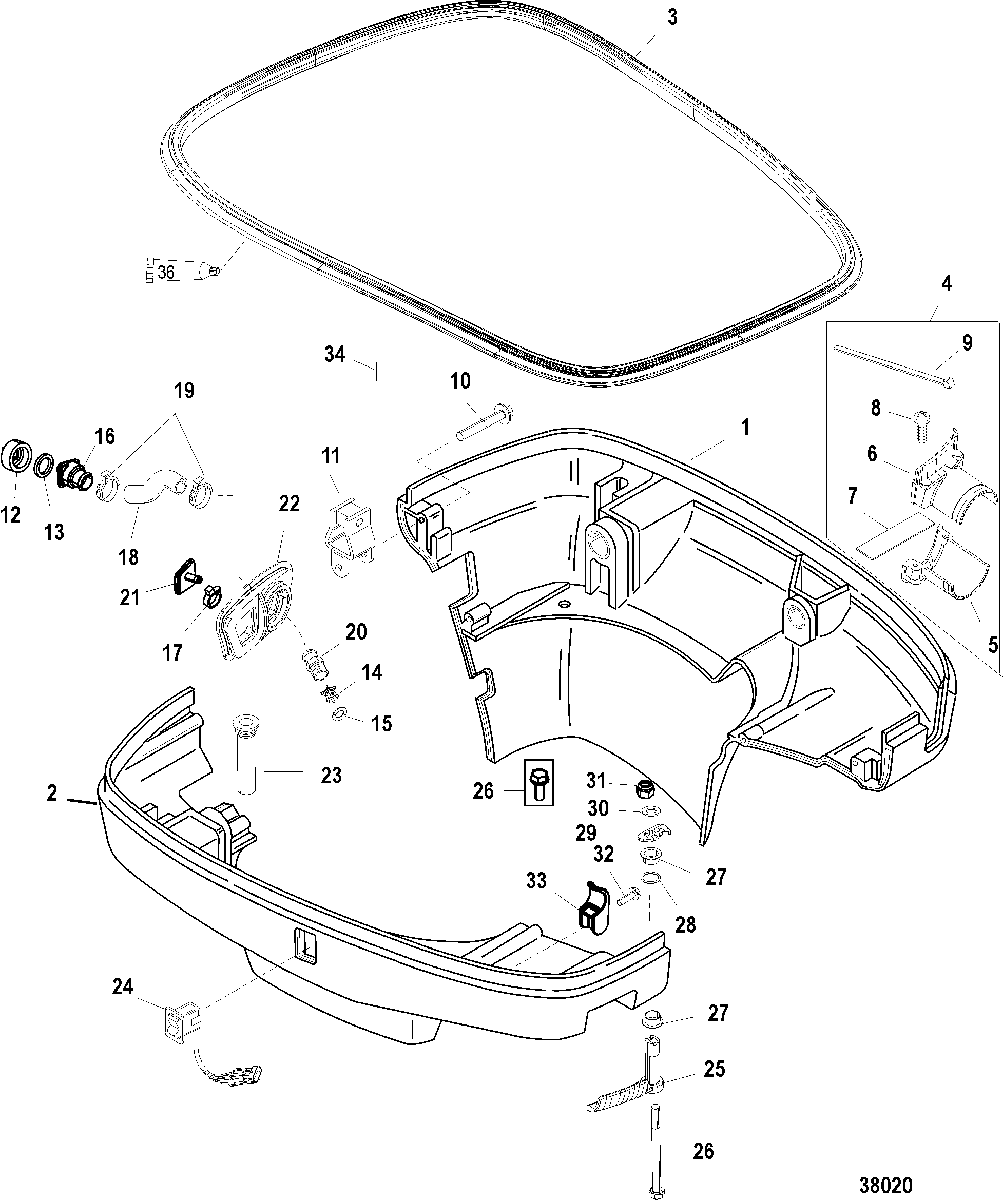

Bottom Cowl для Mariner - V-150 DFI (2.5L) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    100-8M0107321 BOTTOM COWL (PORT)
    BOTTOM COWL (PORT)
  • 2
    100-8M0107322 BOTTOM COWL (STARBOARD)
    BOTTOM COWL (STARBOARD)
  • 3
    8M0109217 SEAL, Cowl (41.00 Inches)
    SEAL, Cowl (41.00 Inches)
  • 4
    875266A2 RIGGING KIT
    RIGGING KIT
  • 5
    859435T INSERT (BOTTOM)
    INSERT (BOTTOM)
  • 6
    859434T INSERT (TOP)
    INSERT (TOP)
  • 7
    859343 FOAM
    FOAM
  • 8
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
  • 9
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 10
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 11
    831209 RETAINER
    RETAINER
  • 12
    19-821908 PLUG
    PLUG
  • 13
    12-821915 WASHER
    WASHER
  • 14
    8219631 CHECK VALVE
    CHECK VALVE
  • 15
    25-30641 O-RING, (.299 x .103)
    O-RING, (.299 x .103)
  • 16
    22-821952 FITTING
    FITTING
  • 17
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 18
    32-8M0039077 HOSE
    HOSE
  • 19
    54-850896 CLAMP, (28.6)
    CLAMP, (28.6)
  • 20
    22-8320763 FITTING
    FITTING
  • 21
    22-8M0077650 FITTING, Tell-Tale
    FITTING, Tell-Tale
  • 22
    889847 BOOT, Idle Exhaust
    BOOT, Idle Exhaust
  • 23
    21-817519A1 CHECK VALVE ASSEMBLY, Drain
    CHECK VALVE ASSEMBLY, Drain
  • 24
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 25
    889740A02 FRONT HANDLE, Black
    (Cast Handle)
    FRONT HANDLE, Black
    (Cast Handle)
  • 25
    889740A02 HANDLE KIT
    (Plastic Handle)
    HANDLE KIT
    (Plastic Handle)
  • 26
    10-1993716 SCREW, (M6 x 16)
    (Use With Plastic Handle)
    SCREW, (M6 x 16)
    (Use With Plastic Handle)
  • 26
    10-824868 SCREW, (M6 x 75)
    (Use With Cast Handle)
    SCREW, (M6 x 75)
    (Use With Cast Handle)
  • 27
    23-335891 BUSHING
    BUSHING
  • 28
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 29
    8219423 PAWL, Front Handle
    PAWL, Front Handle
  • 30
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 31
    11-401366 NUT, (M6) Stainless Steel
    (Use With Cast Handle)
    NUT, (M6) Stainless Steel
    (Use With Cast Handle)
  • 32
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 33
    54-822873 CLIP
    CLIP
  • 34
    37-88343312 DECAL, California Ultra Low Emissions
    (135)
    DECAL, California Ultra Low Emissions
    (135)
  • 34
    37-88343311 DECAL, California-Very Low Emission
    (150/175)
    DECAL, California-Very Low Emission
    (150/175)
