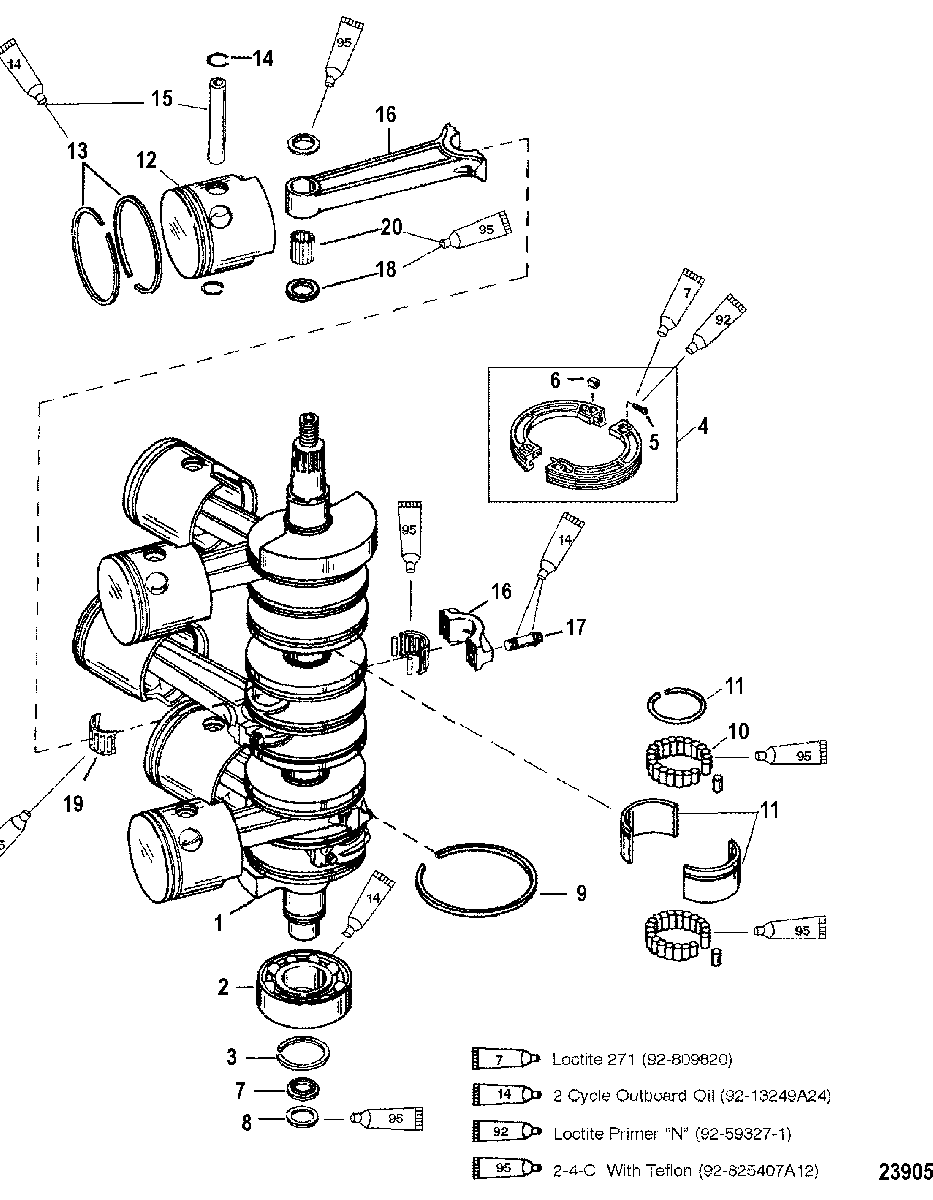

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - V-135 0G760300 THRU 0G960499

№

Артикул

Название
1

455-9536T4 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

294 510 ₽
2

30-67923T BEARING, Ball (LOWER)

BEARING, Ball (LOWER)

5 390 ₽
3

53-67446 RING

RING

230 ₽
4

43-14513A09 GEAR SEGMENT KIT, Drive

GEAR SEGMENT KIT, Drive

7 950 ₽
5

10-854812 SCREW, (#6-32 x .630) Socket Button Head

SCREW, (#6-32 x .630) Socket Button Head

270 ₽
6

11-854811 NUT, Special (#6-32)

NUT, Special (#6-32)

320 ₽
7

54196A6 CARRIER ASSEMBLY

CARRIER ASSEMBLY

1 530 ₽
8

65800 PACKING

PACKING

300 ₽
9

39-67377T RING, Sealing, CRANKSHAFT

RING, Sealing, CRANKSHAFT

1 140 ₽
10

31-16756A6 BEARING KIT

BEARING KIT

10 750 ₽
11

NSS NOT SOLD SEPARATE, Bearing

NOT SOLD SEPARATE, Bearing

0 ₽
12

765-7441T32 PISTON
(STARBOARD-STANDARD) 135

PISTON
(STARBOARD-STANDARD) 135

16 520 ₽
12

765-7443A11 PISTON
(STARBOARD-.015 O.S.) 135

PISTON
(STARBOARD-.015 O.S.) 135

23 660 ₽
12

765-7445T11 PISTON
(STARBOARD-.030 OS.) 135

PISTON
(STARBOARD-.030 OS.) 135

22 600 ₽
12

765-7442T32 PISTON
(PORT-STANDARD) 135

PISTON
(PORT-STANDARD) 135

16 700 ₽
12

765-7444A11 PISTON
(PORT-.015 O.S.) 135

PISTON
(PORT-.015 O.S.) 135

15 470 ₽
12

765-7446A11 PISTON
(PORT-.030 O.S.) 135

PISTON
(PORT-.030 O.S.) 135

21 410 ₽
12

785-9738T9 PISTON ASSEMBLY, Standard
(STARBOARD-STANDARD) 150/XR6 MAGNUM III 175/200

PISTON ASSEMBLY, Standard
(STARBOARD-STANDARD) 150/XR6 MAGNUM III 175/200

17 440 ₽
12

785-9738T10 PISTON ASSEMBLY, .015 Oversize
(STARBOARD-.015 O.S.) 150/XR6 MAGNUM III 175/200

PISTON ASSEMBLY, .015 Oversize
(STARBOARD-.015 O.S.) 150/XR6 MAGNUM III 175/200

23 550 ₽
12

785-9737T9 PISTON ASSEMBLY, Standard
(PORT-STANDARD) 150/XR6 MAGNUM III 175/200

PISTON ASSEMBLY, Standard
(PORT-STANDARD) 150/XR6 MAGNUM III 175/200

17 760 ₽
12

785-9737A10 PISTON ASSEMBLY, .015 Oversize
(PORT-.015 O.S.) 150/XR6 MAGNUM III 175/200

PISTON ASSEMBLY, .015 Oversize
(PORT-.015 O.S.) 150/XR6 MAGNUM III 175/200

25 110 ₽
13

39-93481A12 RING SET, Piston - Standard
(STANDARD) 135

RING SET, Piston - Standard
(STANDARD) 135

29 270 ₽
13

39-78918A4 RING SET, Piston - .015 Oversize
(.015 O.S.) 135

RING SET, Piston - .015 Oversize
(.015 O.S.) 135

10 990 ₽
13

39-85636A4 RING SET, Piston - .030 Oversize
(.030 O.S.) 135

RING SET, Piston - .030 Oversize
(.030 O.S.) 135

16 480 ₽
13

39-822321A12 RING KIT, Piston - Standard
(STD.) 150/XR6 MAGNUM III 175/200

RING KIT, Piston - Standard
(STD.) 150/XR6 MAGNUM III 175/200

20 280 ₽
13

39-822321A1 RING KIT, Piston - .015 Oversize
(.015 O.S.) 150/XR6 MAGNUM III 175/200

RING KIT, Piston - .015 Oversize
(.015 O.S.) 150/XR6 MAGNUM III 175/200

33 290 ₽
14

53-857196 RING, Lock

RING, Lock

100 ₽
15

NSS NOT SOLD SEPARATE, Piston Pin

NOT SOLD SEPARATE, Piston Pin

0 ₽
16

644-818141A13 CONNECTING ROD KIT

CONNECTING ROD KIT

41 260 ₽
17

10-763491 SCREW, (.312-24 x .875)

SCREW, (.312-24 x .875)

460 ₽
18

12-8M0012298 WASHER

WASHER

450 ₽
19

31-8M0045428 BEARING KIT

BEARING KIT

7 260 ₽
20

29-822553 BEARING, Needle

BEARING, Needle

50 ₽
-

27-815791A92 GASKET SET, Engine

GASKET SET, Engine

20 840 ₽
-

812815R97 POWERHEAD ASSEMBLY
(135)

POWERHEAD ASSEMBLY
(135)

599 020 ₽
-

823434R97 POWERHEAD ASSEMBLY
(150/XR6/MAGNUM III)

POWERHEAD ASSEMBLY
(150/XR6/MAGNUM III)

665 540 ₽
-

812817R97 POWERHEAD ASSEMBLY
(175)

POWERHEAD ASSEMBLY
(175)

665 120 ₽
-

813043R97 POWERHEAD ASSEMBLY
(200)

POWERHEAD ASSEMBLY
(200)

831 630 ₽
