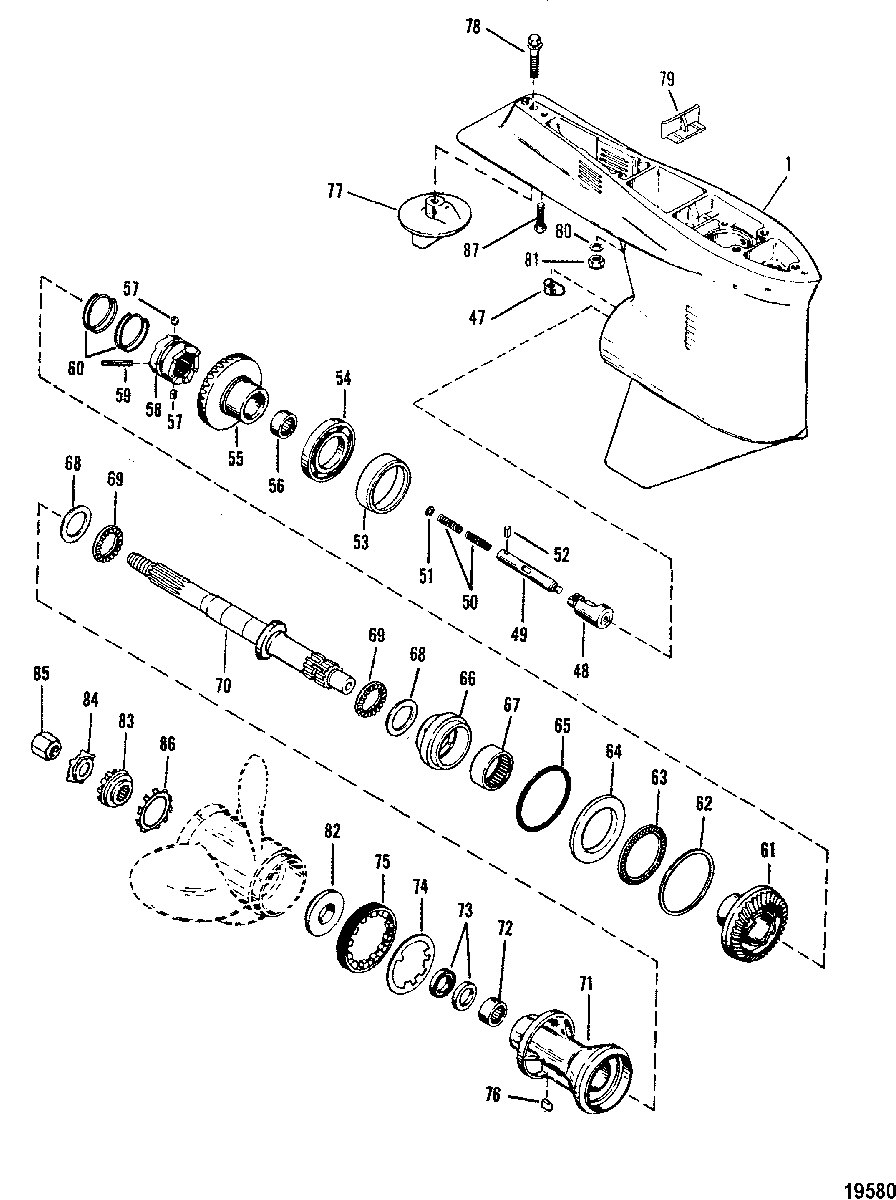

Gear Housing(Prop-Counter Rotation 135/150/175/200) для Mariner - V-135 0C239553 THRU 0D081999
-
№АртикулНазвание
-
-1647-9148T83 GEAR HOUSING (X-LONG)
(Black 135/150)GEAR HOUSING (X-LONG)
(Black 135/150) -
-1647-9148T89 GEAR HOUSING (X-LONG)
(Gray 135/150)GEAR HOUSING (X-LONG)
(Gray 135/150) -
-1647-9148T86 GEAR HOUSING (X-LONG)(BLACK)
(Black 175/200)GEAR HOUSING (X-LONG)(BLACK)
(Black 175/200) -
-1647-9148T86 GEAR HOUSING (X-LONG)
(Gray 175/200)GEAR HOUSING (X-LONG)
(Gray 175/200) -
11647-9148T47 GEAR HOUSING ASSEMBLY (BLACK)(BASIC)GEAR HOUSING ASSEMBLY (BLACK)(BASIC)
-
11647-9148T47 GEAR HOUSING ASSEMBLY (GRAY)(BASIC)GEAR HOUSING ASSEMBLY (GRAY)(BASIC)
-
47789562 SHIFT CAMSHIFT CAM
-
4889594A1 FOLLOWER, CAMFOLLOWER, CAM
-
4979911A1 ROD, CLUTCH ACTUATORROD, CLUTCH ACTUATOR
-
5024-79910 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5112-78910 WASHER, SPRINGWASHER, SPRING
-
5217-8M0084245 PIN, SPRING LOCATORPIN, SPRING LOCATOR
-
5314469T BEARING CUPBEARING CUP
-
5430-88957T BEARINGBEARING
-
55NSS NOT SOLD SEPARATE, Reverse Gear (PART OF 43-18572A1 or 43-18475A1)NOT SOLD SEPARATE, Reverse Gear (PART OF 43-18572A1 or 43-18475A1)
-
5631-15844 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
5717-78909 PIN, Detent, RATCHETPIN, Detent, RATCHET
-
5852-8M0100493 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5917-8M0084243 PIN, Cross, RATCHETPIN, Cross, RATCHET
-
6024-78962 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6143-18572T1 FORWARD GEAR
(135/150)FORWARD GEAR
(135/150) -
6143-18475T1 FORWARD GEAR
(175/200)FORWARD GEAR
(175/200) -
6223-176151 SPACER SHIM
(.125)SPACER SHIM
(.125) -
6223-176152 SPACER SHIM
(.127)SPACER SHIM
(.127) -
6223-176153 SPACER SHIM
(.129)SPACER SHIM
(.129) -
6223-176154 SPACER SHIM
(.131)SPACER SHIM
(.131) -
6223-176155 SPACER SHIM
(.133)SPACER SHIM
(.133) -
6223-176156 SPACER SHIM
(.135)SPACER SHIM
(.135) -
6223-176157 SPACER SHIM
(.137)SPACER SHIM
(.137) -
6223-176158 SPACER SHIM
(.139)SPACER SHIM
(.139) -
6223-176159 SPACER SHIM
(.141)SPACER SHIM
(.141) -
6223-1761510 SPACER SHIM
(.143)SPACER SHIM
(.143) -
6223-1761511 SPACER SHIM
(.145)SPACER SHIM
(.145) -
6223-1761512 SPACER SHIM
(.147)SPACER SHIM
(.147) -
6223-1761513 SPACER SHIM
(.149)SPACER SHIM
(.149) -
6331-15841 ROLLER BEARINGROLLER BEARING
-
6412-17616 THRUST RINGTHRUST RING
-
6525-31534 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6618447T2 BEARING ADAPTORBEARING ADAPTOR
-
6731-15843T ROLLER BEARINGROLLER BEARING
-
6812-18448 THRUST WASHERTHRUST WASHER
-
6931-15842 BEARING, ThrustBEARING, Thrust
-
7044-18446 PROPELLER SHAFTPROPELLER SHAFT
-
71818896T2 BEARING CARRIERBEARING CARRIER
-
7231-30956T ROLLER BEARING, BEARING CARRIERROLLER BEARING, BEARING CARRIER
-
7326-76868 SEALSEAL
-
7414-79447 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
758M2000347 RETAINER, GEAR HOUSINGRETAINER, GEAR HOUSING
-
7628-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7797-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7810-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
798M0039169 FILLER BLOCKFILLER BLOCK
-
8012-45176 WASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDSWASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDS
-
8111-34933 NUT, (.437-20), DRIVE SHAFT HOUSING STUDSNUT, (.437-20), DRIVE SHAFT HOUSING STUDS
-
8212-835467Q01 THRUST HUBTHRUST HUB
-
8312-31211Q03 WASHER, Splined, PROPELLER NUTWASHER, Splined, PROPELLER NUT
-
8414-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8511-52707Q1 NUT, PropellerNUT, Propeller
-
8613-423511 LOCKWASHER, Toothed, PROPELLER SHAFTLOCKWASHER, Toothed, PROPELLER SHAFT
-
8710-65210 SCREW, (.375-16 x 1.00), GEAR HOUSINGSCREW, (.375-16 x 1.00), GEAR HOUSING
-
-26-89238A2 SEAL KITSEAL KIT
