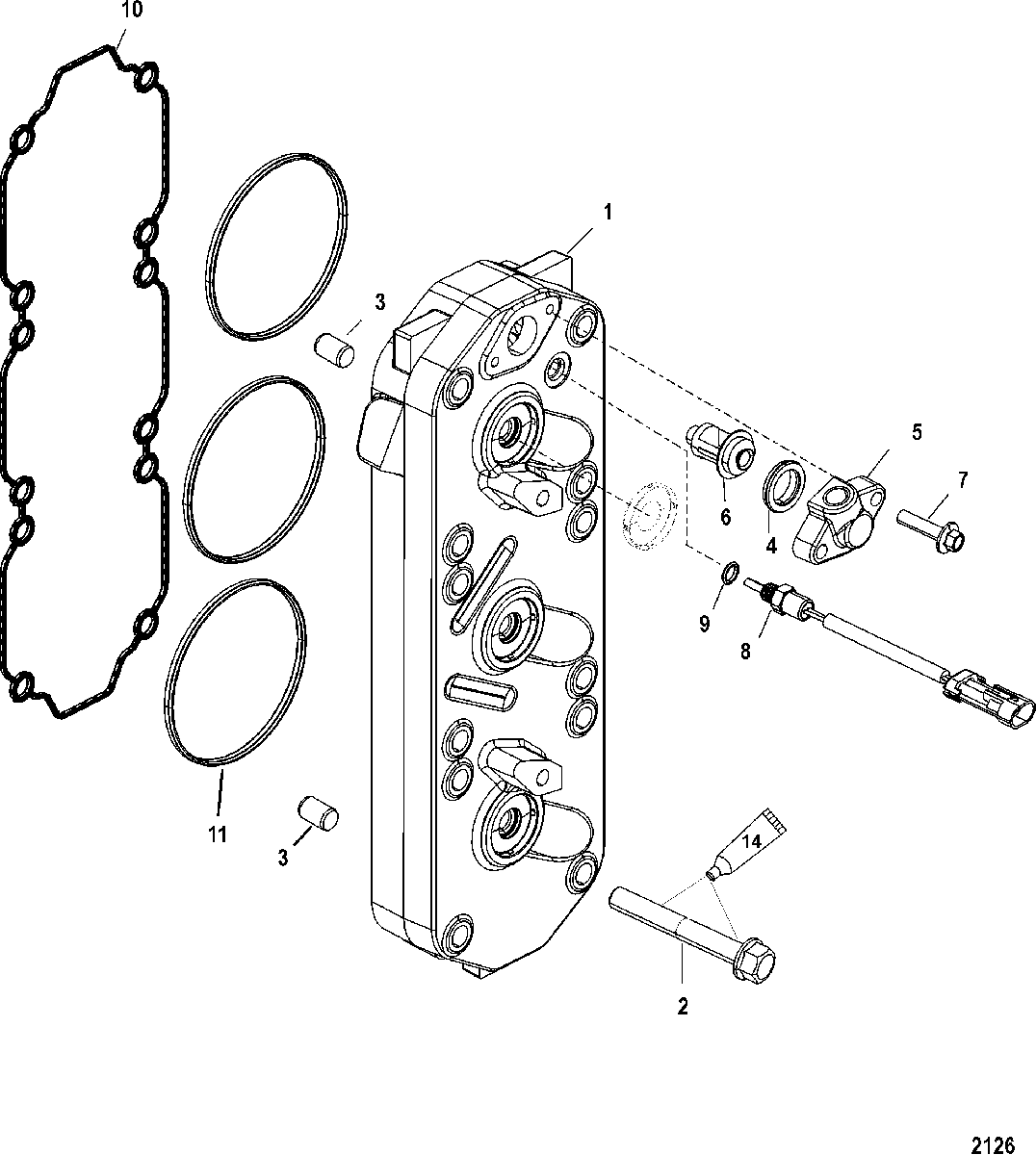

Cylinder Head для Mariner - V-135 DFI (2.5L) 1B227000 THRU 1B417701

  • №
    Артикул
    Название
  • 1
    858405T05 CYLINDER HEAD
    (Port)(135)
    CYLINDER HEAD
    (Port)(135)
  • 1
    858405T05 CYLINDER HEAD
    (Port)(150)
    CYLINDER HEAD
    (Port)(150)
  • 1
    878109T1 CYLINDER HEAD ASSEMBLY
    (Port)(175)
    CYLINDER HEAD ASSEMBLY
    (Port)(175)
  • 1
    858406T05 CYLINDER HEAD
    (Starboard)(135)
    CYLINDER HEAD
    (Starboard)(135)
  • 1
    858406T05 CYLINDER HEAD
    (Starboard)(150)
    CYLINDER HEAD
    (Starboard)(150)
  • 1
    878110T1 CYLINDER HEAD ASSEMBLY
    (Starboard)(175)
    CYLINDER HEAD ASSEMBLY
    (Starboard)(175)
  • 2
    10-8M0125882 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 3
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 4
    27-62386001 GASKET
    GASKET
  • 5
    8M0039353 COVER
    COVER
  • 6
    833072003 THERMOSTAT, 62A°C (143A°F)
    THERMOSTAT, 62A°C (143A°F)
  • 7
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 8
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 9
    25-896699 O-RING, (.351 x .072)
    O-RING, (.351 x .072)
  • 10
    8584521 SEAL
    SEAL
  • 11
    8597721 SEAL
    SEAL
  • -
    27-8M0046714 GASKET SET, Engine
    GASKET SET, Engine
  • -
    879808T07 POWERHEAD ASSEMBLY
    (135)
    POWERHEAD ASSEMBLY
    (135)
  • -
    879808T07 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    879809T07 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)

Все узлы модели:
