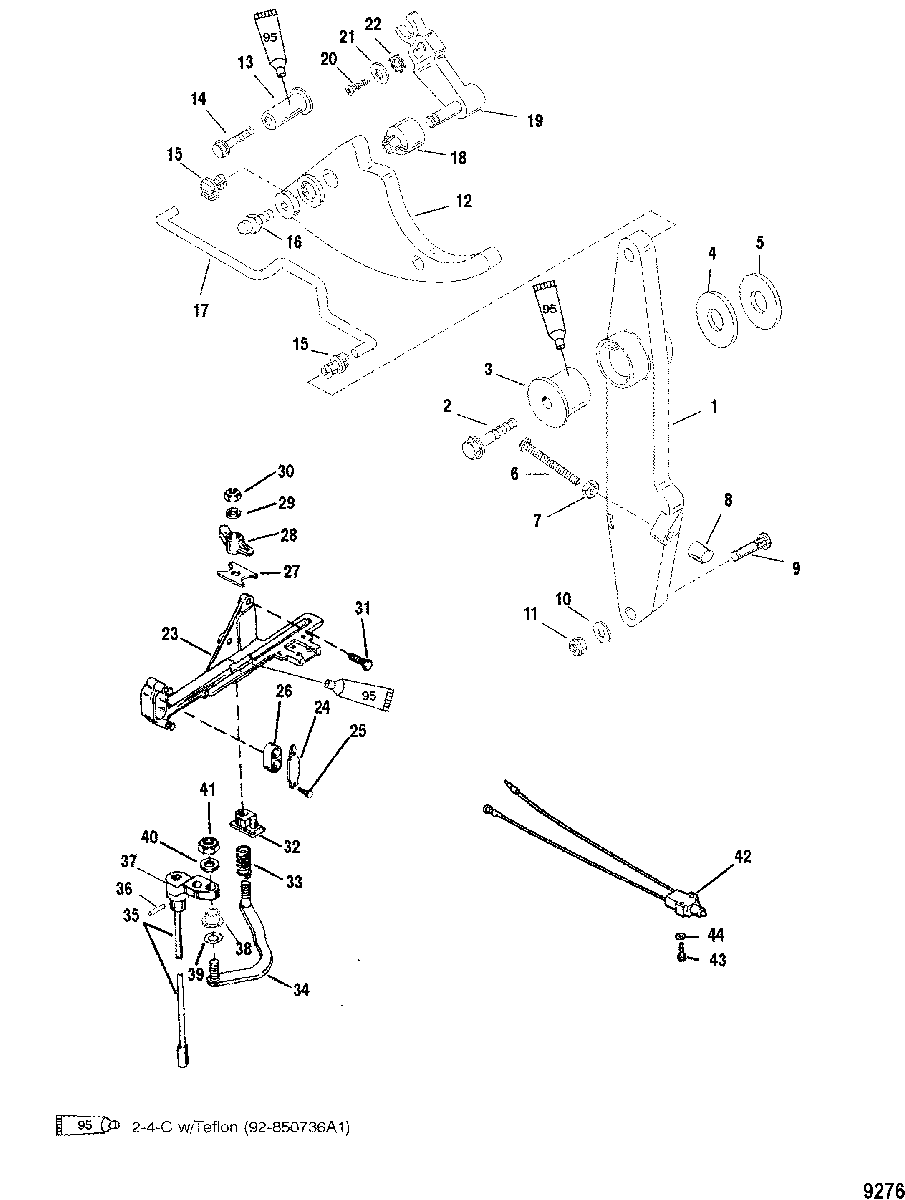

Throttle Lever and Shift Shaft для Mariner - V-135 DFI (2.5L) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    8M0040990 LEVER
    LEVER
  • 2
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 3
    23-55164 BUSHING
    BUSHING
  • 4
    12-74759 WASHER, (.391 x .880 x .125) Stainless Steel
    WASHER, (.391 x .880 x .125) Stainless Steel
  • 5
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 6
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 7
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 8
    26852 CAP, Nylon
    CAP, Nylon
  • 9
    42927 INSERT
    INSERT
  • 10
    12-35459 WASHER
    WASHER
  • 11
    11-401386 NUT, (M6)
    NUT, (M6)
  • 12
    856221A1 CAM
    CAM
  • 13
    23-852970 BUSHING
    BUSHING
  • 14
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 15
    23-932481 BUSHING
    BUSHING
  • 16
    8235694 BALL, Threaded
    BALL, Threaded
  • 17
    8508152 LINK
    LINK
  • 18
    67748 ROLLER
    ROLLER
  • 19
    850286A03 ROLLER, Throttle
    ROLLER, Throttle
  • 20
    10-40056107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 21
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 22
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 23
    814283T6 BRACKET, Anchor
    BRACKET, Anchor
  • 24
    98889 LATCH
    LATCH
  • 25
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 26
    39519 CUP
    CUP
  • 27
    52100 WEAR PLATE
    WEAR PLATE
  • 28
    8M0036768 LATCH
    LATCH
  • 29
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 30
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 31
    10-28782 SCREW, (.312-18 x .880) Stainless Steel
    SCREW, (.312-18 x .880) Stainless Steel
  • 32
    814284 GUIDE BLOCK
    GUIDE BLOCK
  • 33
    24-20099 SPRING
    SPRING
  • 34
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 35
    79932A16 SHIFT SHAFT ASSEMBLY
    (LONG)
    SHIFT SHAFT ASSEMBLY
    (LONG)
  • 35
    79932A17 SHIFT SHAFT ASSEMBLY
    (X-LONG)
    SHIFT SHAFT ASSEMBLY
    (X-LONG)
  • 36
    NSS NOT SOLD SEPARATE, Roll Pin
    NOT SOLD SEPARATE, Roll Pin
  • 37
    NSS NOT SOLD SEPARATE, Shift Shaft Lever-Upper
    NOT SOLD SEPARATE, Shift Shaft Lever-Upper
  • 38
    23-26856 BUSHING
    BUSHING
  • 39
    13-29720 WAVE WASHER
    WAVE WASHER
  • 40
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 41
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 42
    87-8M0052931 SWITCH
    SWITCH
  • 43
    10-77478 SCREW, (#6-32 x .875)
    SCREW, (#6-32 x .875)
  • 44
    12-27882 WASHER
    WASHER
