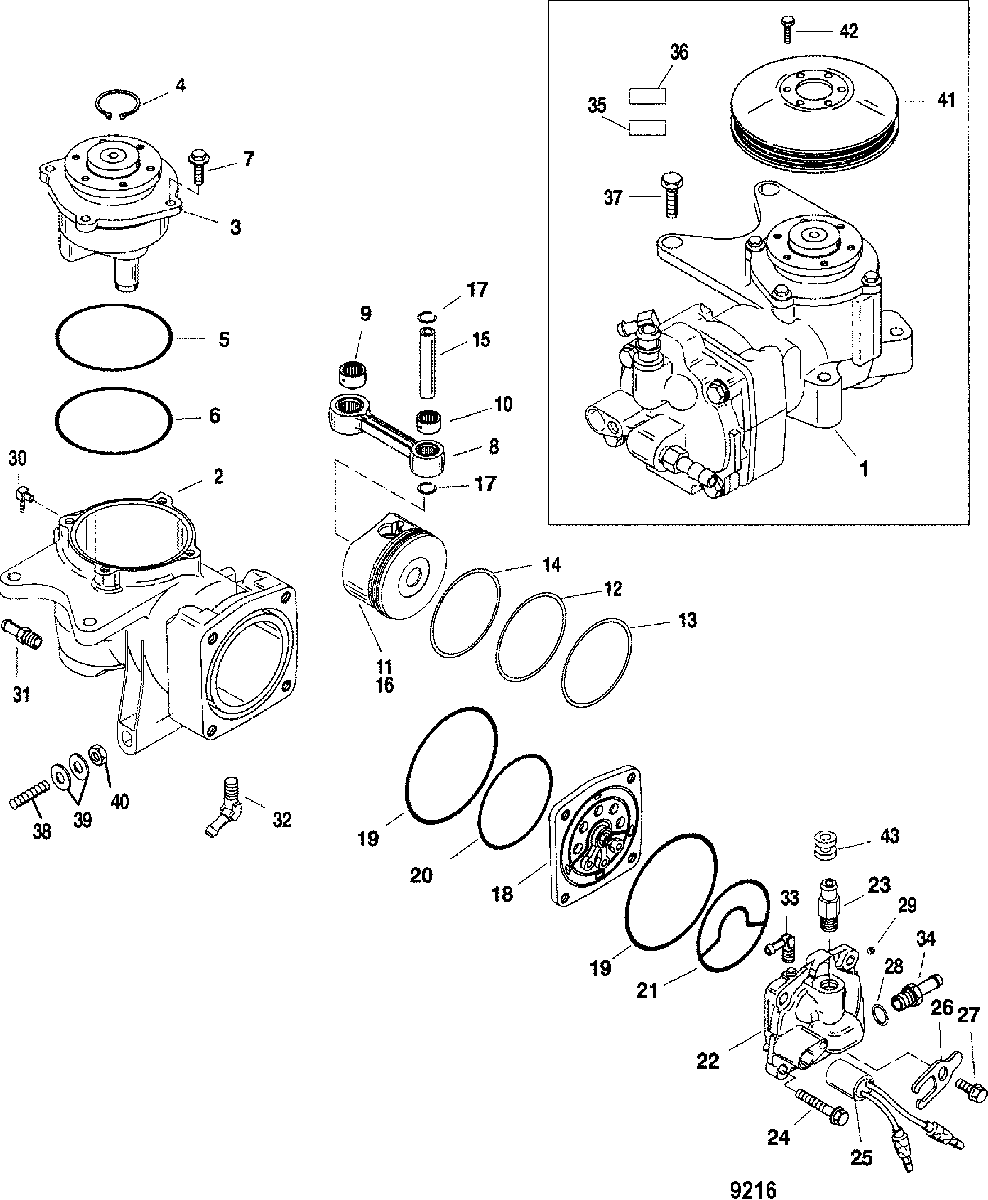

Air Compressor Components для Mariner - V-115 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    8M0060053 COMPRESSOR ASSEMBLY, Air (Without Pulley)
    COMPRESSOR ASSEMBLY, Air (Without Pulley)
  • 2
    NSS NOT SOLD SEPARATE, Body
    NOT SOLD SEPARATE, Body
  • 3
    1100-8M0050792 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 4
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 5
    25-89224 O-RING
    O-RING
  • 6
    25-832804 O-RING, (2.739 x .070)
    O-RING, (2.739 x .070)
  • 7
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 8
    653-833146T06 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 9
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 10
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 11
    828222A4 PISTON ASSEMBLY (W/RINGS AND PIN)
    PISTON ASSEMBLY (W/RINGS AND PIN)
  • 12
    NSS NOT SOLD SEPARATE, Oil Scraper Ring
    NOT SOLD SEPARATE, Oil Scraper Ring
  • 13
    NSS NOT SOLD SEPARATE, Top Ring
    NOT SOLD SEPARATE, Top Ring
  • 14
    NSS NOT SOLD SEPARATE, Oil Ring
    NOT SOLD SEPARATE, Oil Ring
  • 15
    NSS NOT SOLD SEPARATE, Wrist Pin
    NOT SOLD SEPARATE, Wrist Pin
  • 16
    NSS NOT SOLD SEPARATE, Piston with Wrist Pin
    NOT SOLD SEPARATE, Piston with Wrist Pin
  • 17
    53-8348101 RING, Lock
    RING, Lock
  • 18
    835088A10 REED PLATE ASSEMBLY
    REED PLATE ASSEMBLY
  • 19
    25-67207 O-RING, (3.489 x .070)
    O-RING, (3.489 x .070)
  • 20
    25-832804 O-RING, (2.739 x .070)
    O-RING, (2.739 x .070)
  • 21
    26-828225 SEAL
    SEAL
  • 22
    8M0073890 HEAD ASSEMBLY, Compressor
    HEAD ASSEMBLY, Compressor
  • 23
    22-8307532 FITTING, Straight
    FITTING, Straight
  • 24
    10-82446035 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 25
    13536A12 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 26
    137151 RETAINER
    RETAINER
  • 27
    10-81893412 SCREW, (M8 x 12)
    SCREW, (M8 x 12)
  • 28
    25-831985 O-RING, (.468 x .078)
    O-RING, (.468 x .078)
  • 29
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 30
    22-151331 FITTING
    FITTING
  • 31
    22-16604 FITTING, Straight (.125-27)
    FITTING, Straight (.125-27)
  • 32
    22-851975 FITTING, Elbow - 45 Degree - Brass (.125-27)
    FITTING, Elbow - 45 Degree - Brass (.125-27)
  • 33
    22-14868 FITTING
    FITTING
  • 34
    22-856744 FITTING
    FITTING
  • 35
    NSS NOT SOLD SEPARATE, Decal-Mexico
    NOT SOLD SEPARATE, Decal-Mexico
  • 36
    NSS NOT SOLD SEPARATE, Decal-Assembly Instructions
    NOT SOLD SEPARATE, Decal-Assembly Instructions
  • 37
    10-4010825 SCREW, (M10 x 25) Hex Flange - Stainless Steel
    SCREW, (M10 x 25) Hex Flange - Stainless Steel
  • 38
    16-858762001 STUD, (.312-18/.312-24 x 4.190)
    STUD, (.312-18/.312-24 x 4.190)
  • 39
    12-854640 WASHER, Special
    WASHER, Special
  • 40
    11-82670911 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 41
    8328233 PULLEY
    PULLEY
  • 42
    10-85593912 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 43
    25-855349002 GROMMET
    GROMMET
  • -
    25-832804A03 O-RING KIT
    O-RING KIT
