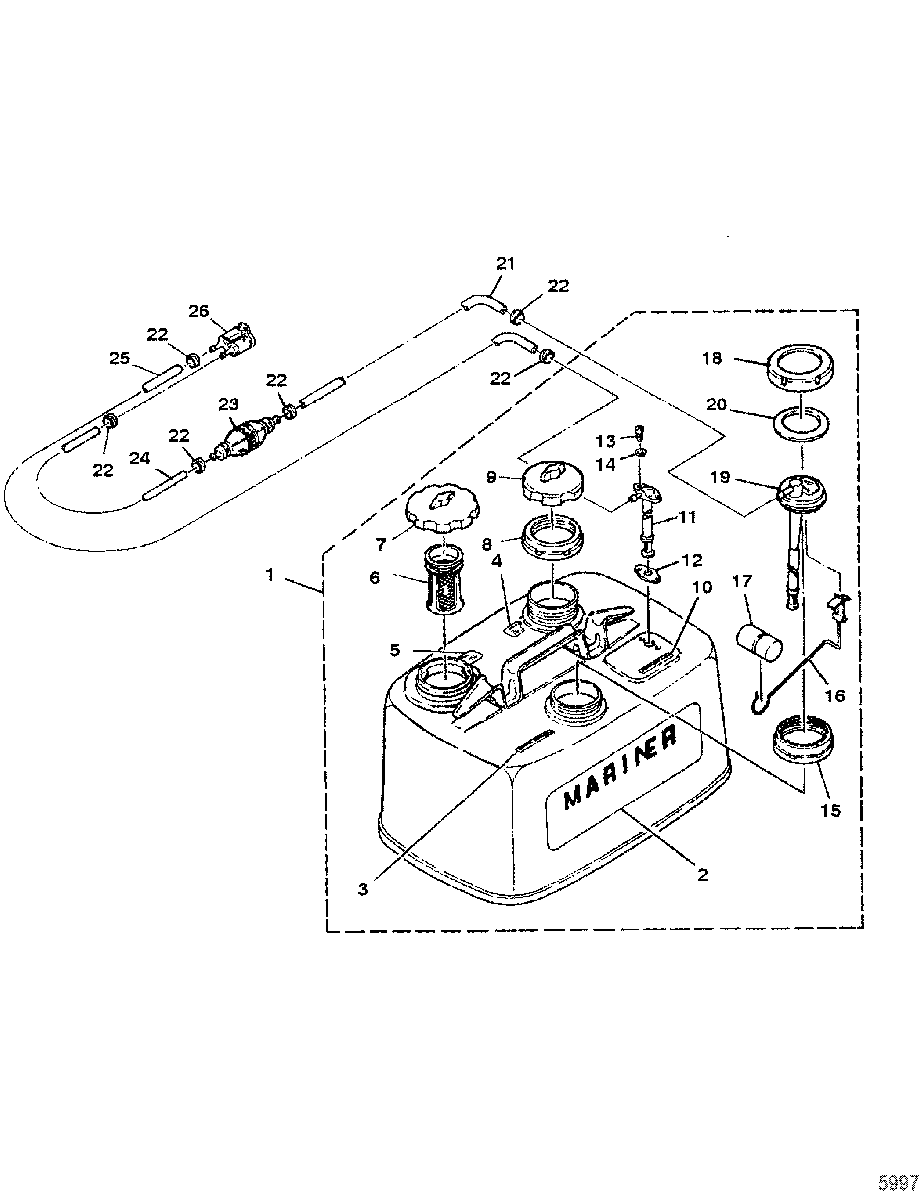

Fuel Tank/Fuel Line(S/N:M-001188/ML-304030 & Below) для Mariner - K 40 H.P. 6F5-301827 & Up
-
№АртикулНазвание
-
11252-9522M TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
2NSS NOT SOLD SEPARATE, Decal-SideNOT SOLD SEPARATE, Decal-Side
-
3NSS NOT SOLD SEPARATE, Decal-TopNOT SOLD SEPARATE, Decal-Top
-
4NSS NOT SOLD SEPARATE, Decal-TopNOT SOLD SEPARATE, Decal-Top
-
537-94702M DECAL, TopDECAL, Top
-
635-95568M STRAINERSTRAINER
-
736-814497M CAPCAP
-
8NSS NOT SOLD SEPARATE, NutNOT SOLD SEPARATE, Nut
-
936-814498M CAPCAP
-
10NSS NOT SOLD SEPARATE, Decal-TopNOT SOLD SEPARATE, Decal-Top
-
1199954M HOUSING, ConnectorHOUSING, Connector
-
12NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
1310-83356M SCREWSCREW
-
1412-95501M WASHERWASHER
-
15NSS NOT SOLD SEPARATE, NutNOT SOLD SEPARATE, Nut
-
16NSS NOT SOLD SEPARATE, IndicatorNOT SOLD SEPARATE, Indicator
-
1781319M FLOATFLOAT
-
1897624M SUPPORTSUPPORT
-
1995616M METER, FuelMETER, Fuel
-
2027-97623M GASKETGASKET
-
2132-94727M HOSEHOSE
-
2254-16725M CLAMPCLAMP
-
2389396Q01 PRIMER BULBPRIMER BULB
-
2432-94727M HOSEHOSE
-
2532-94727M HOSEHOSE
-
2695569M CONNECTOR, FuelCONNECTOR, Fuel
