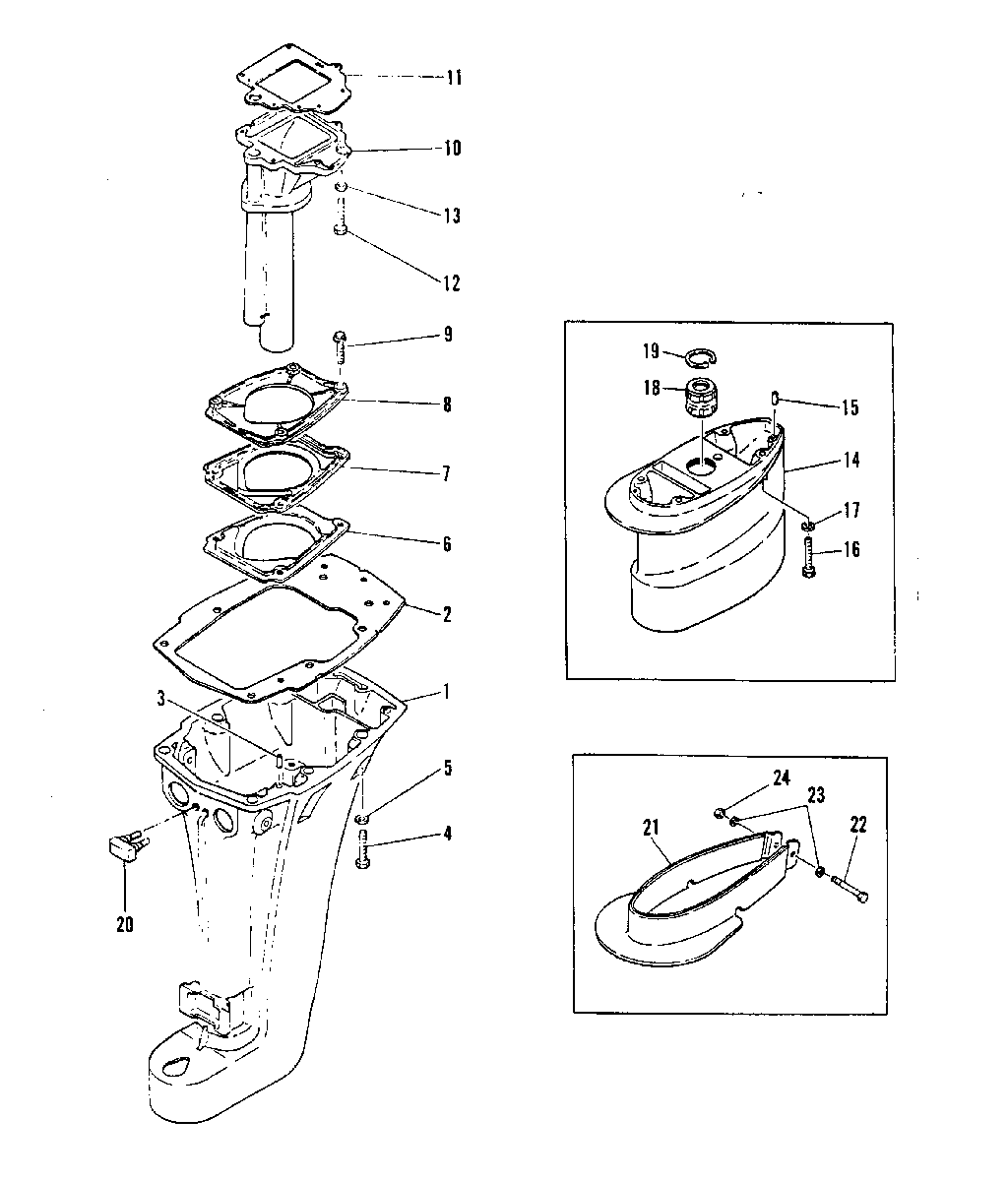

DRIVESHAFT HOUSING для Mariner - 9.9C 682-250946 AND UP

  • №
    Артикул
    Название
  • 1
    1587-811276M DRIVE SHAFT HOUSING (SHORT) SEE NOTE #3
    DRIVE SHAFT HOUSING (SHORT) SEE NOTE #3
  • 1
    1587-811277M DRIVE SHAFT HOUSING (LONG) SEE NOTE #3
    DRIVE SHAFT HOUSING (LONG) SEE NOTE #3
  • 1
    1587-8027M DRIVE SHAFT HOUSING (SHORT) (SEE NOTE #5)
    DRIVE SHAFT HOUSING (SHORT) (SEE NOTE #5)
  • 1
    1587-7144M DRIVE SHAFT HOUSING (SHORT) (SEE NOTE #6)
    DRIVE SHAFT HOUSING (SHORT) (SEE NOTE #6)
  • 1
    1587-8028M DRIVE SHAFT HOUSING (LONG) (SEE NOTE #4)
    DRIVE SHAFT HOUSING (LONG) (SEE NOTE #4)
  • 2
    27-96618 GASKET
    GASKET
  • 3
    17-82364M DOWEL PIN
    DOWEL PIN
  • 4
    10-97749M BOLT
    BOLT
  • 5
    12-82217M WASHER
    WASHER
  • 6
    810453M PLATE
    PLATE
  • 7
    84041M SEAL
    SEAL
  • 8
    83953M SEAL PROTECTOR
    SEAL PROTECTOR
  • 9
    10-82476M BOLT
    BOLT
  • 10
    810454M EXHAUST MANIFOLD (SEE NOTE #1)
    EXHAUST MANIFOLD (SEE NOTE #1)
  • 10
    83954M EXHAUST MANIFOLD (SEE NOTE #2)
    EXHAUST MANIFOLD (SEE NOTE #2)
  • 11
    27-83955M GASKET
    GASKET
  • 12
    10-84058M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    84042M EXTENSION SUPER LONG SHAFT
    EXTENSION SUPER LONG SHAFT
  • 15
    17-82364M DOWEL PIN SUPER LONG SHAFT
    DOWEL PIN SUPER LONG SHAFT
  • 16
    10-82442M BOLT SUPER LONG SHAFT
    BOLT SUPER LONG SHAFT
  • 17
    12-82217M WASHER SUPER LONG SHAFT
    WASHER SUPER LONG SHAFT
  • 18
    23-815011M BUSHING SUPER LONG SHAFT
    BUSHING SUPER LONG SHAFT
  • 19
    53-83758M SNAP RING SUPER LONG SHAFT
    SNAP RING SUPER LONG SHAFT
  • 20
    94621M STOPPER
    STOPPER
  • 21
    84269M SPLASH PLATE LONG SHAFT
    SPLASH PLATE LONG SHAFT
  • 22
    10-827043M BOLT LONG SHAFT
    BOLT LONG SHAFT
  • 23
    12-82214M WASHER LONG SHAFT
    WASHER LONG SHAFT
  • 24
    11-82390M NUT LONG SHAFT
    NUT LONG SHAFT
