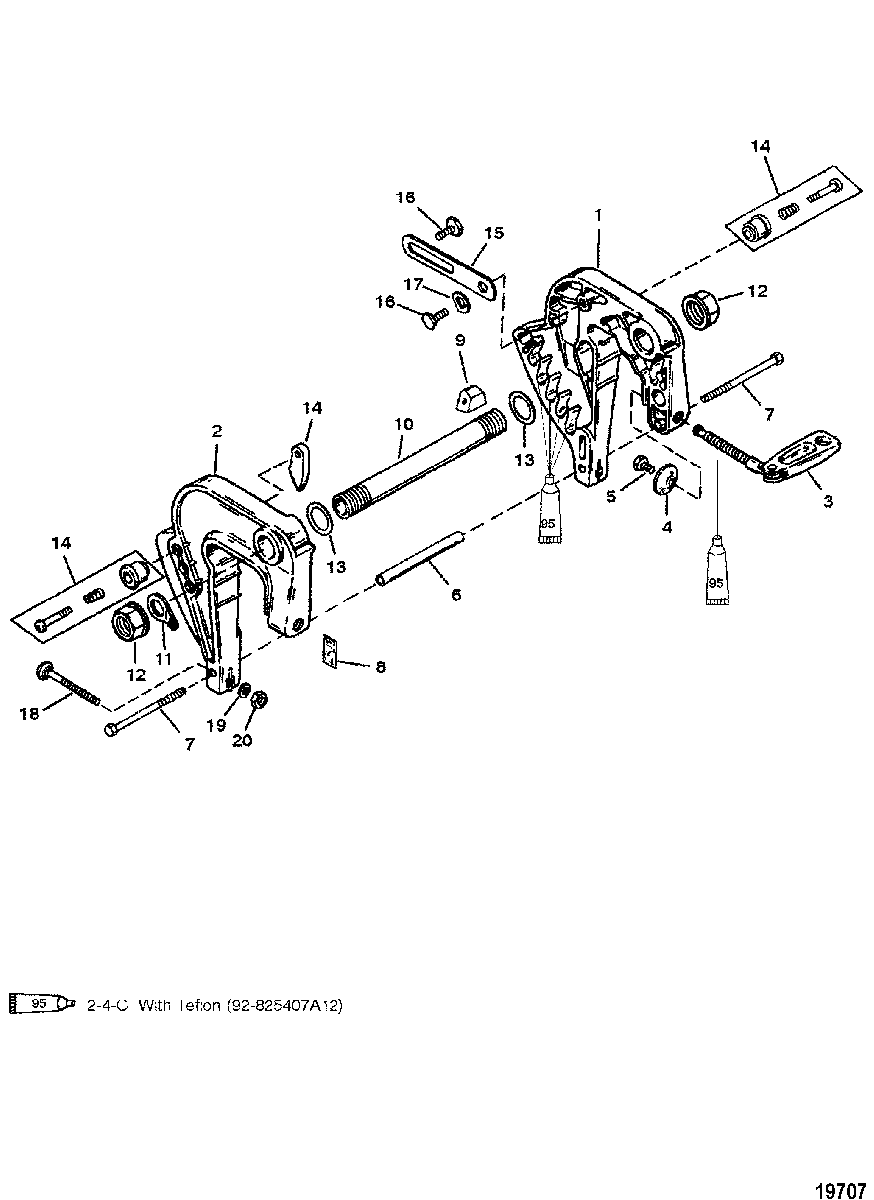

Clamp Bracket для Mariner - 9.9 9792200 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    3404-8894A8 CLAMP BRACKET ASSEMBLY
    (Port-Black) SN# USA-0G032156/BEL-09806246 & Up
    CLAMP BRACKET ASSEMBLY
    (Port-Black) SN# USA-0G032156/BEL-09806246 & Up
  • 1
    3404-8894A8 CLAMP BRACKET ASSEMBLY
    (Port-Gray) SN# USA-0G032156/BEL-09806246 & Up
    CLAMP BRACKET ASSEMBLY
    (Port-Gray) SN# USA-0G032156/BEL-09806246 & Up
  • 1
    3404-8894A11 CLAMP BRACKET ASSEMBLY
    (Port-Tracker Graphite Gray) SN# 0G032155 & Below
    CLAMP BRACKET ASSEMBLY
    (Port-Tracker Graphite Gray) SN# 0G032155 & Below
  • 1
    3404-8894A8 CLAMP BRACKET ASSEMBLY
    (Port-Tracker Graphite Gray) SN# 0G032156 & Up
    CLAMP BRACKET ASSEMBLY
    (Port-Tracker Graphite Gray) SN# 0G032156 & Up
  • 2
    3403-8892A6 CLAMP BRACKET ASSEMBLY
    (Starboard-Black) SN# USA-0G032156/BEL-09806246 & Up
    CLAMP BRACKET ASSEMBLY
    (Starboard-Black) SN# USA-0G032156/BEL-09806246 & Up
  • 2
    3403-8892A6 CLAMP BRACKET ASSEMBLY
    (Starboard-Gray) SN# USA-0G032156/BEL-09806246 & Up
    CLAMP BRACKET ASSEMBLY
    (Starboard-Gray) SN# USA-0G032156/BEL-09806246 & Up
  • 2
    3403-8892A5 CLAMP BRACKET ASSEMBLY
    (Starboard-Graphite Gray) SN# 0G032155 & Below
    CLAMP BRACKET ASSEMBLY
    (Starboard-Graphite Gray) SN# 0G032155 & Below
  • 2
    3403-8892A6 CLAMP BRACKET ASSEMBLY
    (Starboard-Graphite Gray) SN# 0G032156 & Up
    CLAMP BRACKET ASSEMBLY
    (Starboard-Graphite Gray) SN# 0G032156 & Up
  • 1/2
    3404-8894A11 CLAMP BRACKET ASSEMBLY
    (Port/Starboard-Black) SN# USA-0G032155/BEL-09806245 & Below
    CLAMP BRACKET ASSEMBLY
    (Port/Starboard-Black) SN# USA-0G032155/BEL-09806245 & Below
  • 1/2
    3404-8894A11 CLAMP BRACKET ASSEMBLY
    (Port/Starboard-Black) SN# USA-0G032155/BEL-09806245 & Below
    CLAMP BRACKET ASSEMBLY
    (Port/Starboard-Black) SN# USA-0G032155/BEL-09806245 & Below
  • 3
    10-92767A3 THUMB SCREW ASSEMBLY, (16 mm)
    THUMB SCREW ASSEMBLY, (16 mm)
  • 4
    12-818884 WASHER
    WASHER
  • 5
    10-768042 SHOULDER SCREW, Hex
    SHOULDER SCREW, Hex
  • 6
    23-8M0084719 SPACER
    SPACER
  • 7
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 8
    37-12869 DECAL, Tilt Position
    DECAL, Tilt Position
  • 9
    814427 SHUTTLE
    SHUTTLE
  • 10
    42078 TILT TUBE
    TILT TUBE
  • 10
    8M0041936 TILT TUBE
    (ELECTRIC LONG W/REMOTE CONTROL)
    TILT TUBE
    (ELECTRIC LONG W/REMOTE CONTROL)
  • 11
    54-8M0085928 CLIP
    CLIP
  • 12
    11-93164 NUT, (.875)
    NUT, (.875)
  • 13
    12-71421 WASHER, Nylon
    WASHER, Nylon
  • 14
    42390A1 LEVER ASSEMBLY, Tilt Return
    LEVER ASSEMBLY, Tilt Return
  • 15
    90901 STRAP, PORT SIDE
    STRAP, PORT SIDE
  • 16
    10-42498 SCREW, (M6 x 1.0)
    SCREW, (M6 x 1.0)
  • 17
    13-31030 WAVE WASHER
    WAVE WASHER
  • 18
    10-43216 BOLT, (.250-20 x 3.50)
    BOLT, (.250-20 x 3.50)
  • 19
    12-67983 WASHER
    WASHER
  • 20
    11-8267118 NUT, (.250-20)
    NUT, (.250-20)
