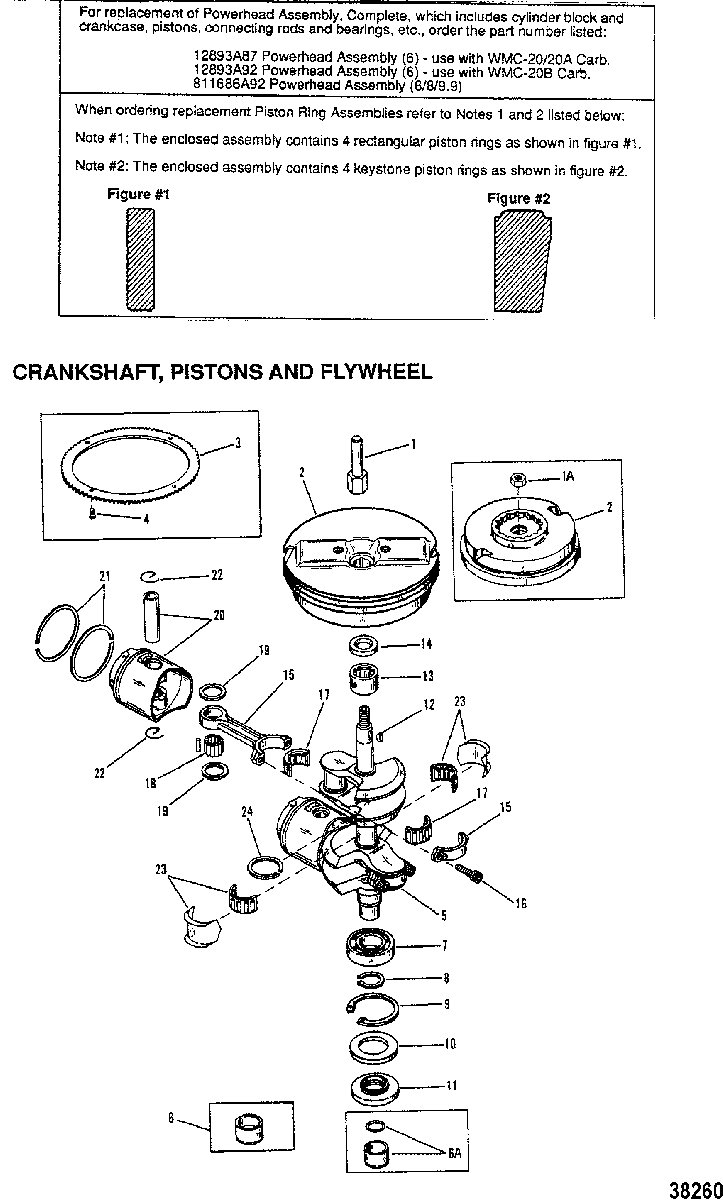

CRANKSHAFT, PISTONS AND FLYWHEEL (6/8/9.9) для Mariner - 9.9 9461526 THRU 9792199
-
№АртикулНазвание
-
142691 SHAFT, FLYWHEEL
(USE WITH STUB SHAFT)SHAFT, FLYWHEEL
(USE WITH STUB SHAFT) -
1A11-818591 NUT, (M14)NUT, (M14)
-
2260-859231T6 FLYWHEEL ASSEMBLY
(USE WITH STUB SHAFT)FLYWHEEL ASSEMBLY
(USE WITH STUB SHAFT) -
2260-859231T19 FLYWHEEL ASSEMBLY
(USE WITH NUT)FLYWHEEL ASSEMBLY
(USE WITH NUT) -
343-99301 RING GEAR, FLYWHEELRING GEAR, FLYWHEEL
-
410-88190313 SCREW, (M5 x 13), RING GEAR TO FLYWHEELSCREW, (M5 x 13), RING GEAR TO FLYWHEEL
-
5400-8M0083309 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
6818630A1 SEAL, Oil (DESIGN I)SEAL, Oil (DESIGN I)
-
6A818630A1 SLEEVE (INCLUDES O-RING - DESIGN II)SLEEVE (INCLUDES O-RING - DESIGN II)
-
730-41341 BEARING, Ball, LOWERBEARING, Ball, LOWER
-
853-20940 RING, Snap (SMALL) (OLD DESIGN)RING, Snap (SMALL) (OLD DESIGN)
-
953-42132 RING, RetainingRING, Retaining
-
1012-13031 WASHER, LOWERWASHER, LOWER
-
1126-125661 SEAL, Oil - LowerSEAL, Oil - Lower
-
1228-20094 KEY, WoodruffKEY, Woodruff
-
1331-878158 BEARING, RollerBEARING, Roller
-
1426-125671 SEAL, Oil - UpperSEAL, Oil - Upper
-
15637-8477A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1610-823460 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1731-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1829-42186 BEARING, Needle, PISTON ENDBEARING, Needle, PISTON END
-
1912-8M0012297 BEARING, ThrustBEARING, Thrust
-
20773-9756T2 PISTON ASSEMBLYPISTON ASSEMBLY
-
2139-42079A4 RING ASSEMBLY
(CONTAINS 4 RECTANGULAR PISTON RINGS AS SHOW IN FIGURE #1)RING ASSEMBLY
(CONTAINS 4 RECTANGULAR PISTON RINGS AS SHOW IN FIGURE #1) -
2139-18514A4 RING SET, Piston
(CONTAINS 4 KEYSTONE PISTON RINGS AS SHOWN IN FIGURE #2)RING SET, Piston
(CONTAINS 4 KEYSTONE PISTON RINGS AS SHOWN IN FIGURE #2) -
2240-42202 LOCK RINGLOCK RING
-
2341373A1 BEARING KIT, Center Main, MAIN BEARINGBEARING KIT, Center Main, MAIN BEARING
-
2426-818901 SEAL, MAIN BEARINGSEAL, MAIN BEARING
-
-12893T97 POWERHEAD ASSEMBLY, COMPLETE
(6)(USE WITH WMC-20/20A CARB.)POWERHEAD ASSEMBLY, COMPLETE
(6)(USE WITH WMC-20/20A CARB.) -
-12893T97 POWERHEAD ASSEMBLY, COMPLETE
(6) (USE WITH WMC-20B CARB.)POWERHEAD ASSEMBLY, COMPLETE
(6) (USE WITH WMC-20B CARB.) -
-811686T97 POWERHEAD ASSEMBLY, Complete
(6/8/9.9)POWERHEAD ASSEMBLY, Complete
(6/8/9.9)
