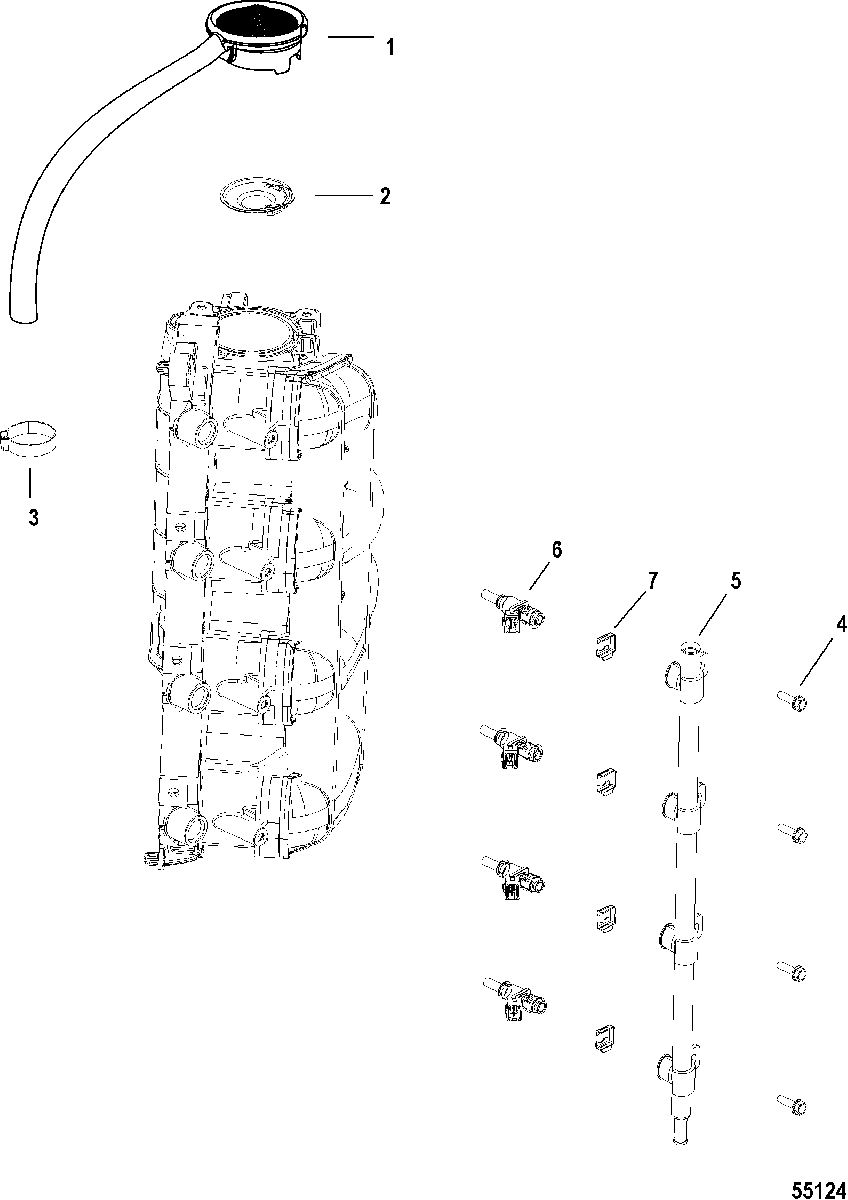

Integrated Air Fuel Module для Mariner - 90 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
18M0090812 BELL MOUTH ASSEMBLYBELL MOUTH ASSEMBLY
-
28M0061853 RESTRICTOR
75 HP ONLYRESTRICTOR
75 HP ONLY -
28M0094679 RESTRICTOR
115 HP COMMERCIAL ONLYRESTRICTOR
115 HP COMMERCIAL ONLY -
354-855228 CLAMPCLAMP
-
410-897445501 SCREW, (M6 x 20 MM)SCREW, (M6 x 20 MM)
-
58M0123527 RAIL ASSEMBLY , FuelRAIL ASSEMBLY , Fuel
-
68M6002428 FUEL INJECTORFUEL INJECTOR
-
78M2001570 CLIPCLIP
