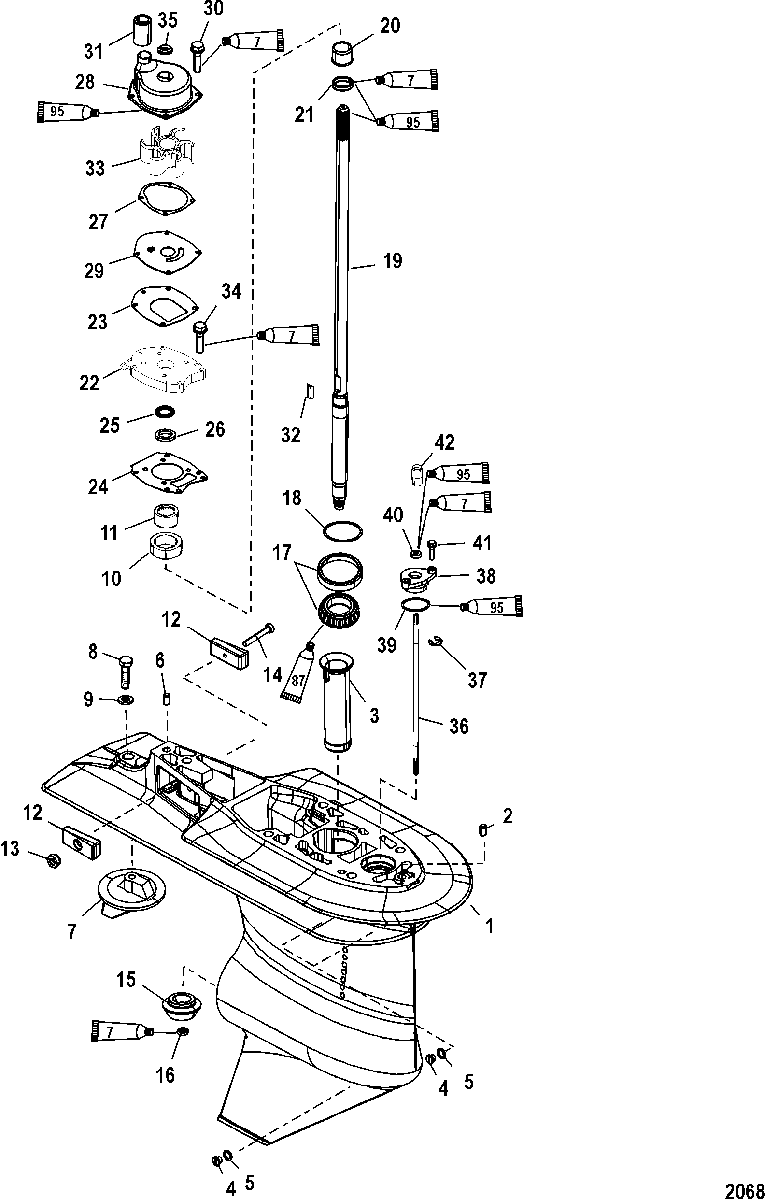

Gear Housing(Driveshaft)(2.33:1 Gear Ratio) для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822

№

Артикул

Название
0

1600-888845T03 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
(Long)

GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
(Long)

308 150 ₽
0

1600-888845T04 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
(X-Long)

GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
(X-Long)

308 230 ₽
1

1600-888845T GEAR HOUSING ASSEMBLY, Basic

GEAR HOUSING ASSEMBLY, Basic

199 280 ₽
2

17-8M0084244 PIN, Dowel - With Hole (.375 x .625) (Front)

PIN, Dowel - With Hole (.375 x .625) (Front)

210 ₽
3

43046 TUBE, Oiler

TUBE, Oiler

3 200 ₽
4

10-79953Q04 SCREW KIT, (.375-16 x .250) Drain

SCREW KIT, (.375-16 x .250) Drain

1 000 ₽
5

12-191833 SEAL

SEAL

60 ₽
6

17-43044 PIN, Dowel - Without Hole (.375 x .625) (Rear)

PIN, Dowel - Without Hole (.375 x .625) (Rear)

200 ₽
7

31640T07 TRIM TAB

TRIM TAB

3 420 ₽
8

10-825427 SCREW, (.437-14 x 1.250) Stainless Steel

SCREW, (.437-14 x 1.250) Stainless Steel

500 ₽
9

12-451761 WASHER, (.453 x .812 x .105) Black Oxide

WASHER, (.453 x .812 x .105) Black Oxide

170 ₽
10

43040T1 CARRIER ASSEMBLY

CARRIER ASSEMBLY

6 550 ₽
11

NSS NOT SOLD SEPARATE, Needle Bearing

NOT SOLD SEPARATE, Needle Bearing

0 ₽
12

97-826134Q ANODE

ANODE

1 120 ₽
13

11-401386 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

330 ₽
14

10-4000333 SCREW, (M6 x 40)

SCREW, (M6 x 40)

290 ₽
15

NSS NOT SOLD SEPARATE, Pinion Gear (12 TEETH)
(Part of 43-882813A3)

NOT SOLD SEPARATE, Pinion Gear (12 TEETH)
(Part of 43-882813A3)

0 ₽
16

11-35921 NUT, (.625-18)

NUT, (.625-18)

1 020 ₽
17

31-883047A1 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller

8 010 ₽
18

15-8M0063265 SHIM SET

SHIM SET

5 840 ₽
19

45-858765T1 DRIVESHAFT ASSEMBLY
(Long)

DRIVESHAFT ASSEMBLY
(Long)

108 070 ₽
19

45-878575T1 DRIVESHAFT ASSEMBLY
(X-Long)

DRIVESHAFT ASSEMBLY
(X-Long)

89 230 ₽
20

42461A1 SLEEVE/RING KIT

SLEEVE/RING KIT

1 100 ₽
21

NSS NOT SOLD SEPARATE, Seal Ring

NOT SOLD SEPARATE, Seal Ring

0 ₽
22

46-8M0113262 COVER ASSEMBLY, Water Pump

COVER ASSEMBLY, Water Pump

12 800 ₽
23

27-430331 GASKET

GASKET

910 ₽
24

27-430472 GASKET

GASKET

670 ₽
25

26-43036 SEAL, Oil (Lower)

SEAL, Oil (Lower)

1 300 ₽
26

26-43035 SEAL, Oil (Upper)

SEAL, Oil (Upper)

1 590 ₽
27

27-8172771 GASKET

GASKET

600 ₽
28

817275A2 HOUSING KIT, Upper Water Pump

HOUSING KIT, Upper Water Pump

10 740 ₽
29

8172761 FACEPLATE

FACEPLATE

1 980 ₽
30

10-82684430 SCREW, (M6 x 30)

SCREW, (M6 x 30)

210 ₽
31

430232 SEAL

SEAL

1 620 ₽
32

28-8M0032833 KEY

KEY

300 ₽
33

47-43026T2 IMPELLER

IMPELLER

2 670 ₽
34

10-82684425 SCREW, (M6 x 25)

SCREW, (M6 x 25)

190 ₽
35

26-816575A2 FACE SEAL

FACE SEAL

740 ₽
36

884563A00 SHIFT SHAFT ASSEMBLY
(Long)

SHIFT SHAFT ASSEMBLY
(Long)

9 040 ₽
36

884565A00 SHIFT SHAFT ASSEMBLY
(X-Long)

SHIFT SHAFT ASSEMBLY
(X-Long)

9 530 ₽
37

53-29641 E RING

E RING

140 ₽
38

23-43052A4 BUSHING ASSEMBLY

BUSHING ASSEMBLY

3 330 ₽
39

25-457101 O-RING, (1.424 x .103)

O-RING, (1.424 x .103)

230 ₽
40

26-8164641 SEAL, Oil

SEAL, Oil

670 ₽
41

10-82684425 SCREW, (M6 x 25)

SCREW, (M6 x 25)

190 ₽
42

23-891637 BUSHING

BUSHING

790 ₽
-

26-43035A4 SEAL KIT, Gear Housing

SEAL KIT, Gear Housing

6 250 ₽
-

46-8M0113799 REPAIR KIT, Water Pump

REPAIR KIT, Water Pump

18 970 ₽
-

43-882813A3 GEAR KIT, Forward And Pinion 28 Teeth

GEAR KIT, Forward And Pinion 28 Teeth

48 840 ₽
-

31-803496T2 BEARING/SEAL KIT
(Without Forward Bearing)

BEARING/SEAL KIT
(Without Forward Bearing)

20 420 ₽
