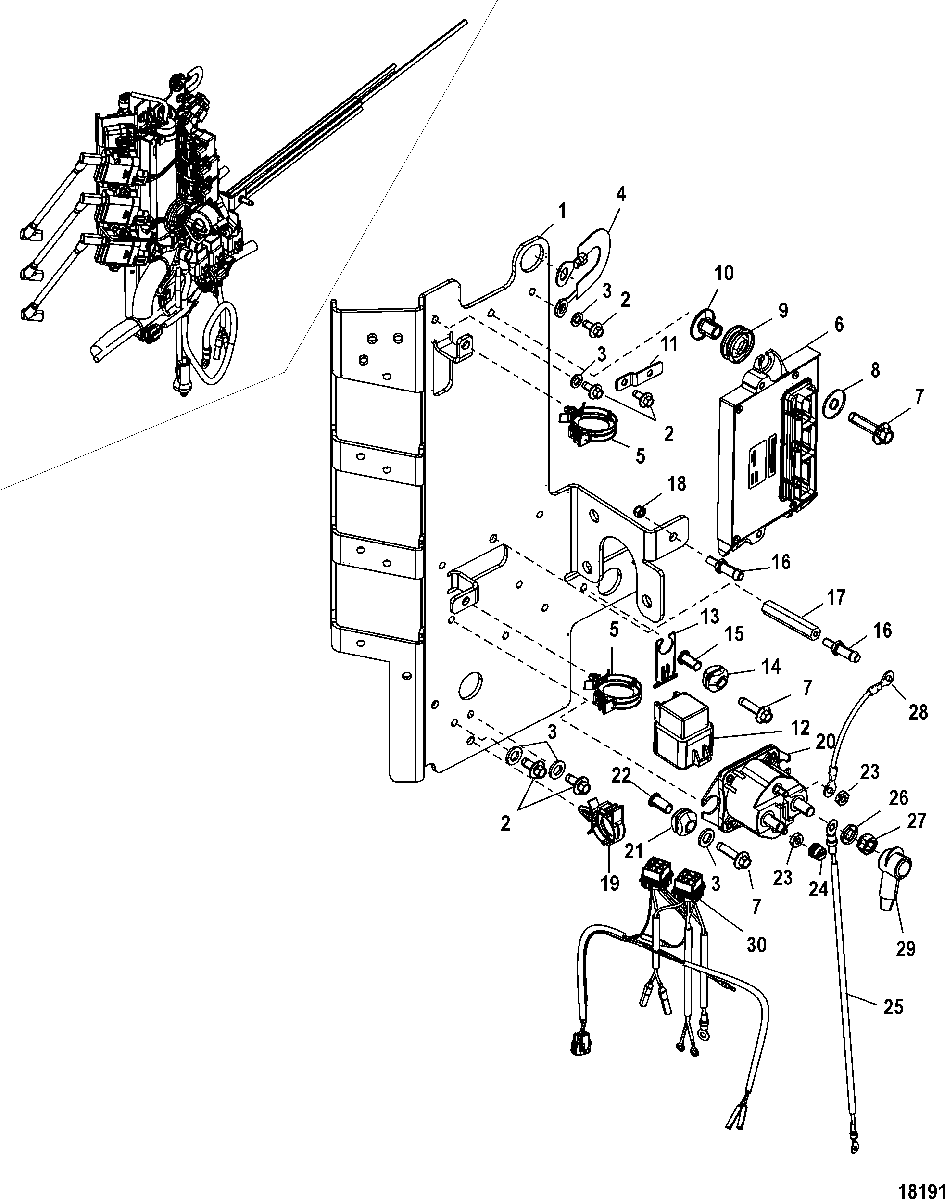

Electrical Components, PCM Mounting для Mariner - 90 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
    NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
  • 1
    880190T03 PLATE, Electrical
    PLATE, Electrical
  • 2
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 3
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 4
    84-858414A1 CABLE ASSEMBLY, Braided
    CABLE ASSEMBLY, Braided
  • 5
    54-858755 CLIP, (1.00)
    CLIP, (1.00)
  • 6
    89790640T PCM, Propulsion Control Module
    (75)
    PCM, Propulsion Control Module
    (75)
  • 6
    89790641T PCM, Propulsion Control Module
    (90)
    PCM, Propulsion Control Module
    (90)
  • 6
    89790642T PCM, Propulsion Control Module
    (115)
    PCM, Propulsion Control Module
    (115)
  • 7
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 8
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 9
    25-834985 GROMMET
    GROMMET
  • 10
    23-856954 BUSHING
    BUSHING
  • 11
    858953 BRACKET
    BRACKET
  • 12
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 13
    828102 BRACKET
    BRACKET
  • 14
    25-818967 GROMMET
    GROMMET
  • 15
    23-818968 BUSHING
    BUSHING
  • 16
    8215832 PIN, Special
    PIN, Special
  • 17
    889600 SPACER
    SPACER
  • 18
    11-401376 NUT, (M6)
    NUT, (M6)
  • 19
    54-858954 CLIP, (.625)
    CLIP, (.625)
  • 20
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 21
    25-822179 GROMMET
    GROMMET
  • 22
    23-818968 BUSHING
    BUSHING
  • 23
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 24
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 25
    84-883726A1 CABLE ASSEMBLY, Yellow/Red
    CABLE ASSEMBLY, Yellow/Red
  • 26
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 27
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 28
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 29
    85-8500673 BOOT, Insulator - Yellow
    BOOT, Insulator - Yellow
  • 30
    84-819514T18 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
