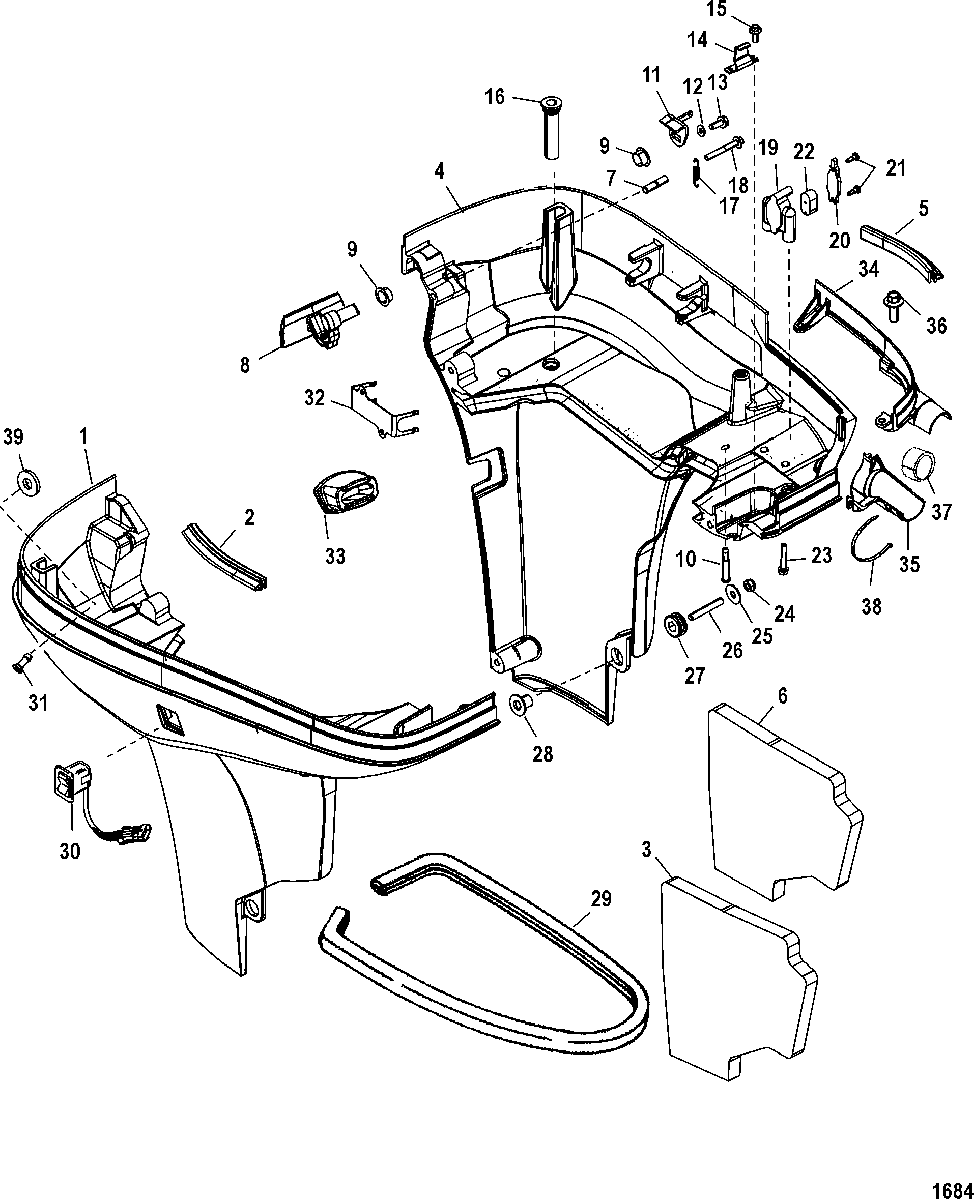

Bottom Cowl для Mariner - 90 DFI (3 CYL.)(1.5L) 0T980000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    100-880775A03 BOTTOM COWL, Starboard
    SN# 0T979999 & Below
    BOTTOM COWL, Starboard
    SN# 0T979999 & Below
  • 1
    100-880775A03 BOTTOM COWL, Starboard
    SN# 0T980000 & Up
    BOTTOM COWL, Starboard
    SN# 0T980000 & Up
  • 2
    8M0109217 SEAL, Cowl (41.00 Inches)
    SEAL, Cowl (41.00 Inches)
  • 3
    NSS NOT SOLD SEPARATE, Sound Blanket (Part of 889720A00)
    NOT SOLD SEPARATE, Sound Blanket (Part of 889720A00)
  • 4
    100-880774A03 BOTTOM COWL, Port
    SN# 0T979999 & Below
    BOTTOM COWL, Port
    SN# 0T979999 & Below
  • 4
    100-880774A03 BOTTOM COWL, Port
    SN# 0T980000 & Up
    BOTTOM COWL, Port
    SN# 0T980000 & Up
  • 5
    8M0109217 SEAL, Cowl (41.00 Inches)
    SEAL, Cowl (41.00 Inches)
  • 6
    889720A00 SOUND BLANKET KIT
    (PORT)
    SOUND BLANKET KIT
    (PORT)
  • 7
    17-885116 PIN
    PIN
  • 8
    880783T LEVER, Cowl Latch
    LEVER, Cowl Latch
  • 9
    23-335891 BUSHING
    BUSHING
  • 10
    22-889684002 FITTING, Vent
    SN# 0T979999 & Below
    FITTING, Vent
    SN# 0T979999 & Below
  • 10
    22-889684002 FITTING, Vent
    SN# 0T980000 & Up
    FITTING, Vent
    SN# 0T980000 & Up
  • 11
    884468 CAM, Latch
    CAM, Latch
  • 12
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 13
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 14
    822363T1 RETAINER
    RETAINER
  • 15
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 16
    21-817519A2 CHECK VALVE ASSEMBLY, Drain
    CHECK VALVE ASSEMBLY, Drain
  • 17
    24-892166001 SPRING
    SN# 0T979999 & Below
    SPRING
    SN# 0T979999 & Below
  • 17
    24-892166001 SPRING
    SN# 0T980000 & Up
    SPRING
    SN# 0T980000 & Up
  • 18
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 19
    19812T03 BRACKET, Cable Retainer
    BRACKET, Cable Retainer
  • 20
    98889 LATCH
    LATCH
  • 21
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 22
    39519 CUP
    CUP
  • 23
    10-40011154 SCREW, (M8 x 50) Stainless Steel
    SCREW, (M8 x 50) Stainless Steel
  • 24
    11-401388 NUT, (M8)
    NUT, (M8)
  • 25
    12-817274 WASHER
    WASHER
  • 26
    16-8M0034456 STUD
    STUD
  • 27
    25-855362001 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 27
    25-855362001 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 28
    23-855364 BUSHING
    BUSHING
  • 29
    8M0043167 SEAL, Lower Cowl (44.75 Inches)
    SEAL, Lower Cowl (44.75 Inches)
  • 30
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 31
    22-94848 FITTING
    FITTING
  • 32
    888508 RETAINER, Cable
    RETAINER, Cable
  • 33
    884464 BOOT, Idle Relief
    BOOT, Idle Relief
  • 34
    8M0000504 CLAMP, Upper
    CLAMP, Upper
  • 35
    8M0000484 CLAMP, Lower
    CLAMP, Lower
  • 36
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 37
    859343 FOAM
    FOAM
  • 38
    54-850181 TIE STRAP, (11.750 Inches)
    TIE STRAP, (11.750 Inches)
  • 39
    23-892427 SPACER
    SPACER
