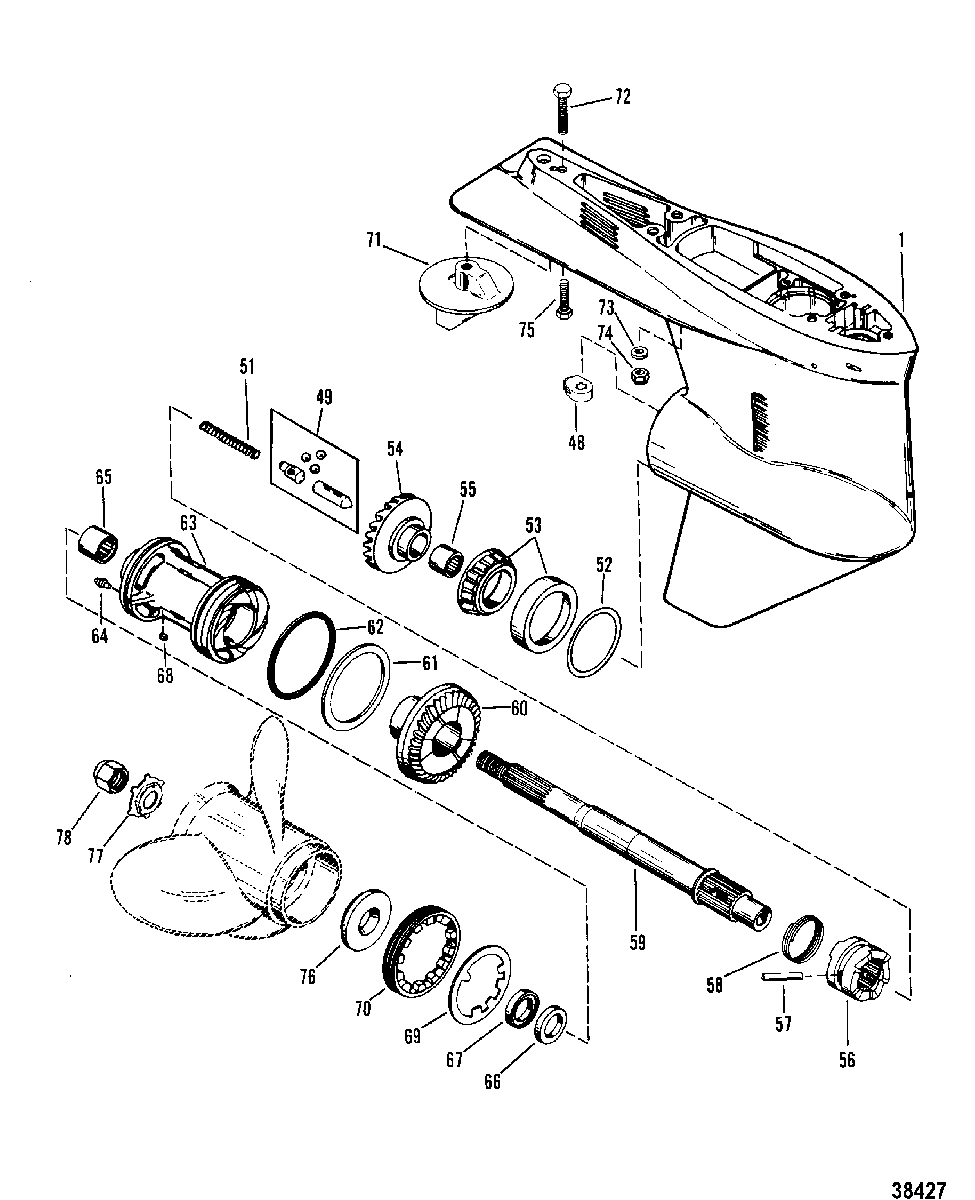

GEAR HOUSING(PROPELLER SHAFT) для Mariner - 90 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
-1655-7333T24 GEAR HOUSING ASSEMBLY
(LONG) (BLACK)GEAR HOUSING ASSEMBLY
(LONG) (BLACK) -
-1655-7333A26 GEAR HOUSING ASSEMBLY
(X-LONG) (BLACK)GEAR HOUSING ASSEMBLY
(X-LONG) (BLACK) -
-1655-7333T42 GEAR HOUSING ASSEMBLY
(LONG) (GRAY)GEAR HOUSING ASSEMBLY
(LONG) (GRAY) -
-1655-7333A44 GEAR HOUSING ASSEMBLY
(X-LONG) (GRAY)GEAR HOUSING ASSEMBLY
(X-LONG) (GRAY) -
11655-7333T23 GEAR HOUSING ASSEMBLY
(BASIC)(BLACK)GEAR HOUSING ASSEMBLY
(BASIC)(BLACK) -
11655-7333A43 GEAR HOUSING ASSEMBLY
(BASIC)(GRAY)GEAR HOUSING ASSEMBLY
(BASIC)(GRAY) -
48760394 CAM, Shift ControlCAM, Shift Control
-
4944532A1 FOLLOWER ASSEMBLY, CamFOLLOWER ASSEMBLY, Cam
-
5124-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5215-30923A1 SHIM, BEARING OUTER RACE (.002-3-5-10)SHIM, BEARING OUTER RACE (.002-3-5-10)
-
5331-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
5443-68447T1 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5531-30895T BEARING, Needle, FORWARD GEARBEARING, Needle, FORWARD GEAR
-
5652-822539T RATCHET, SLIDING GEARRATCHET, SLIDING GEAR
-
5717-8M0100263 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
5824-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
5944-93003 PROPELLER SHAFTPROPELLER SHAFT
-
6043-76250T GEAR, ReverseGEAR, Reverse
-
6112-76358 THRUST WASHER, BEARING CARRIERTHRUST WASHER, BEARING CARRIER
-
6225-29976 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6341529T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6422-98727 FITTING, GreaseFITTING, Grease
-
6531-30956T BEARING, Needle, BEARING CARRIERBEARING, Needle, BEARING CARRIER
-
6626-76868 SEAL (INSIDE)SEAL (INSIDE)
-
6726-70081 SEAL, Oil, CUTTER (OUTSIDE)SEAL, Oil, CUTTER (OUTSIDE)
-
6828-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6914-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7052699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7197-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7210-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
7312-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
7411-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
7510-65210 SCREW, (.375-16 x 1.00), GEAR HOUSING
(LONG SHAFT)SCREW, (.375-16 x 1.00), GEAR HOUSING
(LONG SHAFT) -
7510-74727 SCREW, (.375-16 x 6.00), GEAR HOUSING
(EXTRA LONG SHAFT)SCREW, (.375-16 x 6.00), GEAR HOUSING
(EXTRA LONG SHAFT) -
7613191Q01 THRUST WASHERTHRUST WASHER
-
7714-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
7811-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
-26-55682A1 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-27-85653A87 GASKET SETGASKET SET
