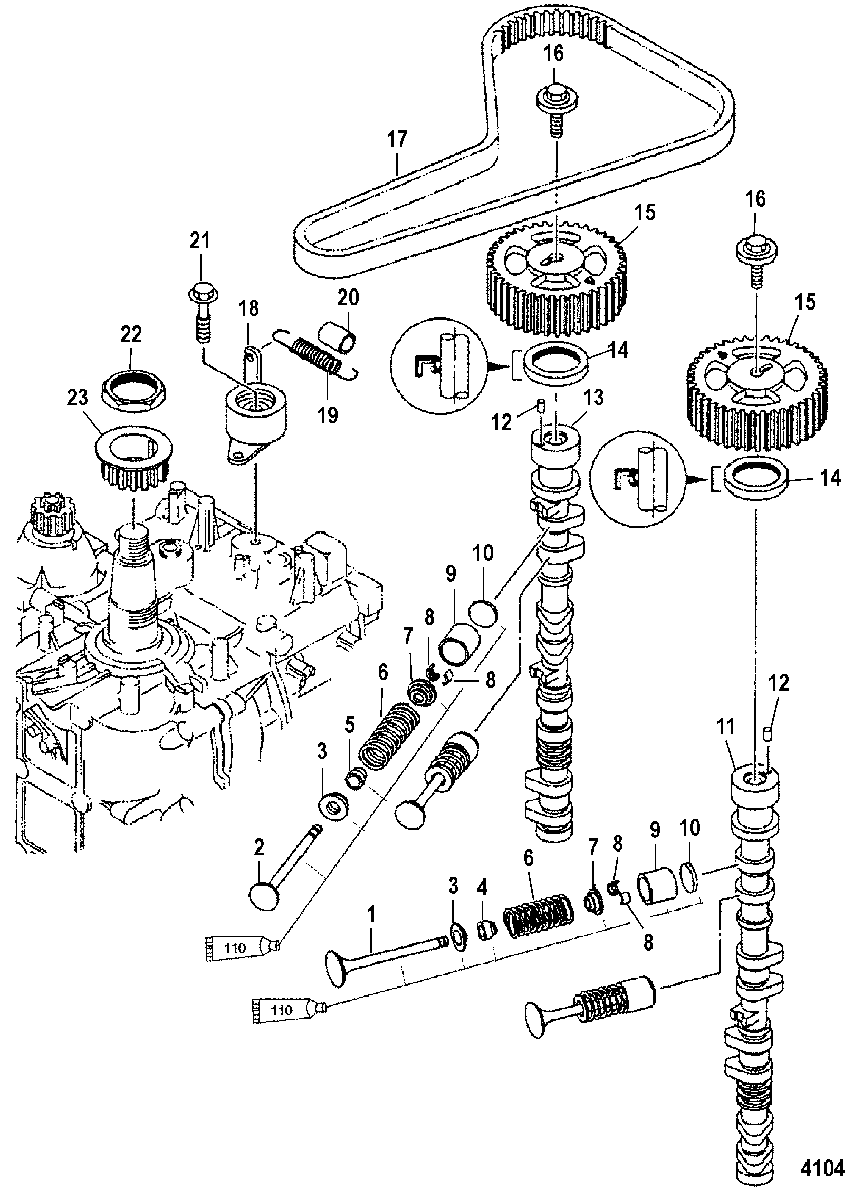

Intake/Exhaust Valves для Mariner - 90 (4-STROKE) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
1804128T VALVE, IntakeVALVE, Intake
-
2804129T VALVE, ExhaustVALVE, Exhaust
-
3804130 SEATSEAT
-
426-804136 SEALSEAL
-
526-804137 SEALSEAL
-
624-804131 SPRING, ValveSPRING, Valve
-
7804132 RETAINERRETAINER
-
828-804135 COTTER VALVECOTTER VALVE
-
9804138T LIFTER, ValveLIFTER, Valve
-
1015-8046071 SHIM
(2.350)SHIM
(2.350) -
1015-8046072 SHIM
(2.375)SHIM
(2.375) -
1015-8046073 SHIM
(2.400)SHIM
(2.400) -
1015-8046074 SHIM
(2.425)SHIM
(2.425) -
1015-8046075 SHIM
(2.450)SHIM
(2.450) -
1015-8046076 SHIM
(2.475)SHIM
(2.475) -
1015-8046077 SHIM
(2.500)SHIM
(2.500) -
1015-8046078 SHIM
(2.525)SHIM
(2.525) -
1015-8046079 SHIM
(2.550)SHIM
(2.550) -
1015-80460710 SHIM
(2.575)SHIM
(2.575) -
1015-80460711 SHIM
(2.600)SHIM
(2.600) -
1015-80460712 SHIM
(2.625)SHIM
(2.625) -
1015-80460713 SHIM
(2.650)SHIM
(2.650) -
1015-80460714 SHIM
(2.675)SHIM
(2.675) -
1015-80460715 SHIM
(2.700)SHIM
(2.700) -
1015-80460716 SHIM
(2.725)SHIM
(2.725) -
1015-80460717 SHIM
(2.750)SHIM
(2.750) -
1015-804608 SHIM
(2.775)SHIM
(2.775) -
1015-80460810 SHIM
(2.800)SHIM
(2.800) -
1015-80460820 SHIM
(2.825)SHIM
(2.825) -
1015-80460830 SHIM
(2.850)SHIM
(2.850) -
1015-80460840 PAD, Adjusting
(2.875)PAD, Adjusting
(2.875) -
1015-80460850 SHIM
(2.900)SHIM
(2.900) -
1015-80460860 SHIM
(2.925)SHIM
(2.925) -
1015-80460870 SHIM
(2.950)SHIM
(2.950) -
1015-80460880 SHIM
(2.975)SHIM
(2.975) -
112407-804139T01 CAMSHAFTCAMSHAFT
-
1217-804141 PIN, DowelPIN, Dowel
-
132407-8M0057172 CAMSHAFTCAMSHAFT
-
1426-804144001 SEAL, OilSEAL, Oil
-
1543-804142T GEAR, DrivenGEAR, Driven
-
1610-804143001 BOLT, (M10 x 35)BOLT, (M10 x 35)
-
1757-804145 V BELTV BELT
-
18804146 TENSIONERTENSIONER
-
1924-804147 SPRINGSPRING
-
2032-804148 HOSEHOSE
-
2110-804150 BOLT, (M10 x 45)BOLT, (M10 x 45)
-
2211-881314003 NUT, (M40)NUT, (M40)
-
2343-804151T01 GEAR, DriveGEAR, Drive
-
-804070T05 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-804109T08 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
-27-804345A02 GASKET SET, PowerheadGASKET SET, Powerhead
