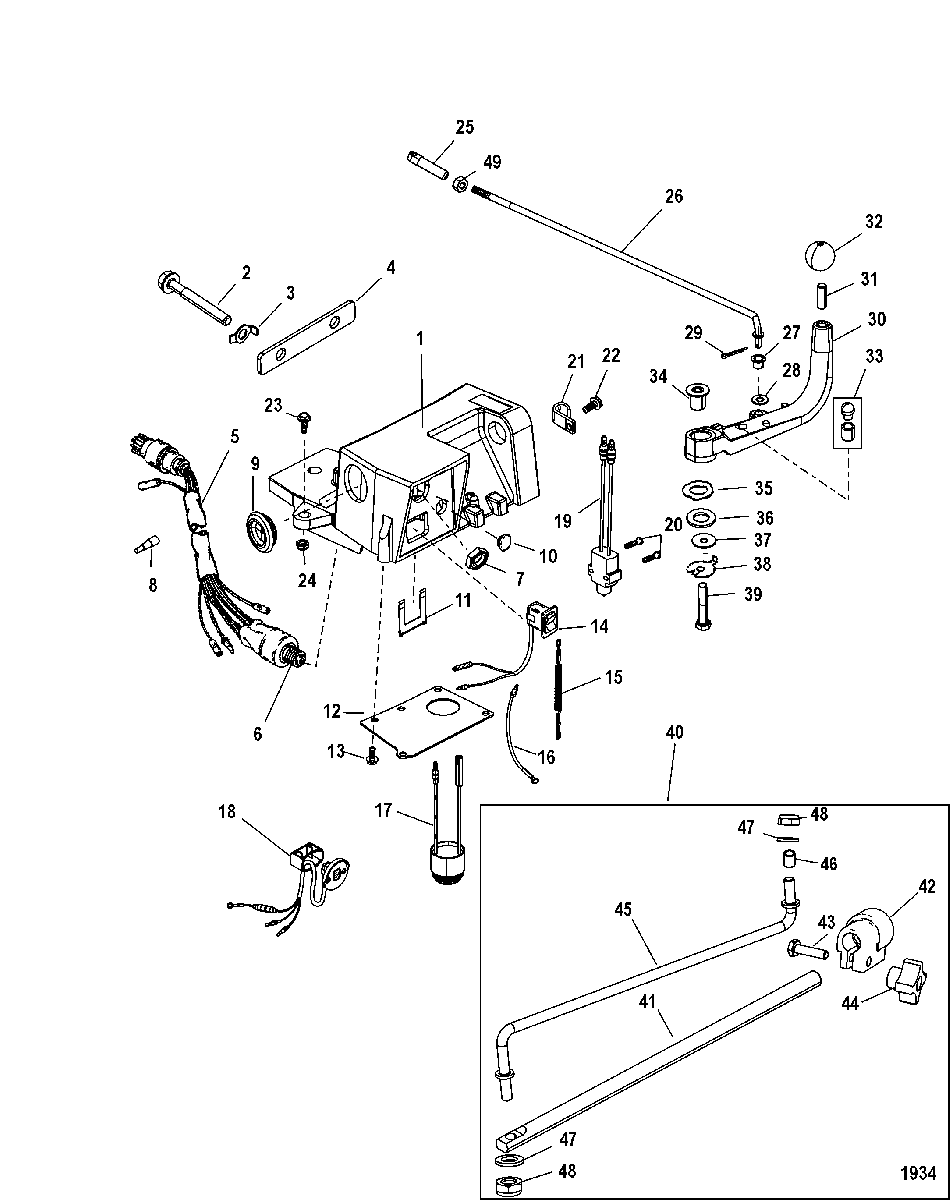

Steering Handle Kit Components для Mariner - 90 (4-STROKE) 0G960500 THRU 0T800999

  • №
    Артикул
    Название
  • -
    816366A42 STEERING HANDLE KIT
    (Use W/ Stainless Steel Mesh Covered Conduit)
    STEERING HANDLE KIT
    (Use W/ Stainless Steel Mesh Covered Conduit)
  • -
    816366A42 STEERING HANDLE KIT
    (Use W/ Black Vinyl Coverd Conduit)
    STEERING HANDLE KIT
    (Use W/ Black Vinyl Coverd Conduit)
  • -
    816366T10 HANDLE
    (2004 Model Year and Up)
    HANDLE
    (2004 Model Year and Up)
  • 1
    816366T5 HANDLE, Bracket
    (Use W/ Stainless Steel Mesh Covered Conduit)
    HANDLE, Bracket
    (Use W/ Stainless Steel Mesh Covered Conduit)
  • 1
    816366T08 HANDLE, Bracket
    (Use W/ Black Vinyl Coverd Conduit)
    HANDLE, Bracket
    (Use W/ Black Vinyl Coverd Conduit)
  • 1
    816366T10 HANDLE, Bracket
    (2004 Model Year and Up)
    HANDLE, Bracket
    (2004 Model Year and Up)
  • 2
    10-881261 SCREW, (.313-24 x 3.50)
    SCREW, (.313-24 x 3.50)
  • 3
    14-42981 TAB WASHER
    TAB WASHER
  • 4
    822263 SPACER
    SPACER
  • 5
    84-12649A4 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 6
    87-88107A5 SWITCH KIT, Key
    (For Replacement Key - Order 89491--1 Thru 89491-12)(See Key Chart - Ignition Switch Section)
    SWITCH KIT, Key
    (For Replacement Key - Order 89491--1 Thru 89491-12)(See Key Chart - Ignition Switch Section)
  • 7
    11-879755 NUT, Special - Black Nylon
    (Black Nylon)
    NUT, Special - Black Nylon
    (Black Nylon)
  • 8
    13541 PLUG, Male
    PLUG, Male
  • 9
    121051 GROMMET
    GROMMET
  • 10
    19-889730 PLUG
    PLUG
  • 11
    8M0032846 RETAINER, Brass
    RETAINER, Brass
  • 12
    8158041 COVER
    COVER
  • 13
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 14
    87-11083A4 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 15
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 16
    84-11149A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 17
    816051A2 HORN ASSEMBLY
    (Use W/ Stainless Steel Mesh Covered Conduit)
    HORN ASSEMBLY
    (Use W/ Stainless Steel Mesh Covered Conduit)
  • 17
    889528T01 HORN ASSEMBLY
    (Use W/ Black Vinyl Coverd Conduit)
    HORN ASSEMBLY
    (Use W/ Black Vinyl Coverd Conduit)
  • 18
    87-18286A19 SWITCH KIT, Trim (25.00 Feet)
    (Use W/ Black Vinyl Coverd Conduit)
    SWITCH KIT, Trim (25.00 Feet)
    (Use W/ Black Vinyl Coverd Conduit)
  • 19
    87-8M0052927 SWITCH
    SWITCH
  • 20
    10-12110 SCREW, (#6-32 x .750)
    SCREW, (#6-32 x .750)
  • 21
    54-648551 CLAMP
    CLAMP
  • 22
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 23
    10-849838 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 24
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 25
    48419T ROD END
    (2003 Model Year and Below )
    ROD END
    (2003 Model Year and Below )
  • 25
    48419T01 ROD END
    (2004 Model Year and Up)
    ROD END
    (2004 Model Year and Up)
  • 26
    495637 ROD, Shift
    ROD, Shift
  • 27
    23-26856 BUSHING
    BUSHING
  • 28
    12-35950 WASHER, (.273 x .437 x .031) Stainless Steel
    WASHER, (.273 x .437 x .031) Stainless Steel
  • 29
    18-25191 COTTER PIN, Cotter
    COTTER PIN, Cotter
  • 30
    8163677 LEVER, Shift, Shift
    LEVER, Shift, Shift
  • 31
    16-8M0034452 STUD, (.375-24 x 1.125)
    STUD, (.375-24 x 1.125)
  • 32
    98530 KNOB
    KNOB
  • 33
    8M0091388 DETENT/SPRING KIT
    DETENT/SPRING KIT
  • 34
    23-8159831 BUSHING
    BUSHING
  • 35
    12-823970 WASHER
    WASHER
  • 36
    12-824610 WASHER, Plastic
    WASHER, Plastic
  • 37
    12-814803 WASHER
    WASHER
  • 38
    14-8158051 TAB WASHER
    TAB WASHER
  • 39
    10-4000357 SCREW, (M8 x 45)
    SCREW, (M8 x 45)
  • 40
    56-52148A7 CO-PILOT ASSEMBLY
    (Use W/ Stainless Steel Mesh Covered Conduit)
    CO-PILOT ASSEMBLY
    (Use W/ Stainless Steel Mesh Covered Conduit)
  • 40
    56-52148A08 CO PILOT ASSEMBLY
    (Use W/ Black Vinyl Coverd Conduit)
    CO PILOT ASSEMBLY
    (Use W/ Black Vinyl Coverd Conduit)
  • 41
    521481 PILOT ROD
    (Use W/ Stainless Steel Mesh Covered Conduit)(13 IN.)
    PILOT ROD
    (Use W/ Stainless Steel Mesh Covered Conduit)(13 IN.)
  • 41
    52148002 PILOT ROD, (15.00 Inches)
    (Use W/ Black Vinyl Coverd Conduit)(15 IN.)
    PILOT ROD, (15.00 Inches)
    (Use W/ Black Vinyl Coverd Conduit)(15 IN.)
  • 42
    11-8M0103848 NUT ASSEMBLY
    NUT ASSEMBLY
  • 43
    10-36137 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 44
    821621 KNOB, Prong
    KNOB, Prong
  • 45
    873491 ROD, Link
    ROD, Link
  • 46
    23-521512 BUSHING
    (Use W/ Stainless Steel Mesh Covered Conduit)(Non-Flanged)
    BUSHING
    (Use W/ Stainless Steel Mesh Covered Conduit)(Non-Flanged)
  • 46
    23-26841 BUSHING
    (Use W/ Black Vinyl Coverd Conduit)(Flanged)
    BUSHING
    (Use W/ Black Vinyl Coverd Conduit)(Flanged)
  • 47
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 48
    11-826709111 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 49
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
