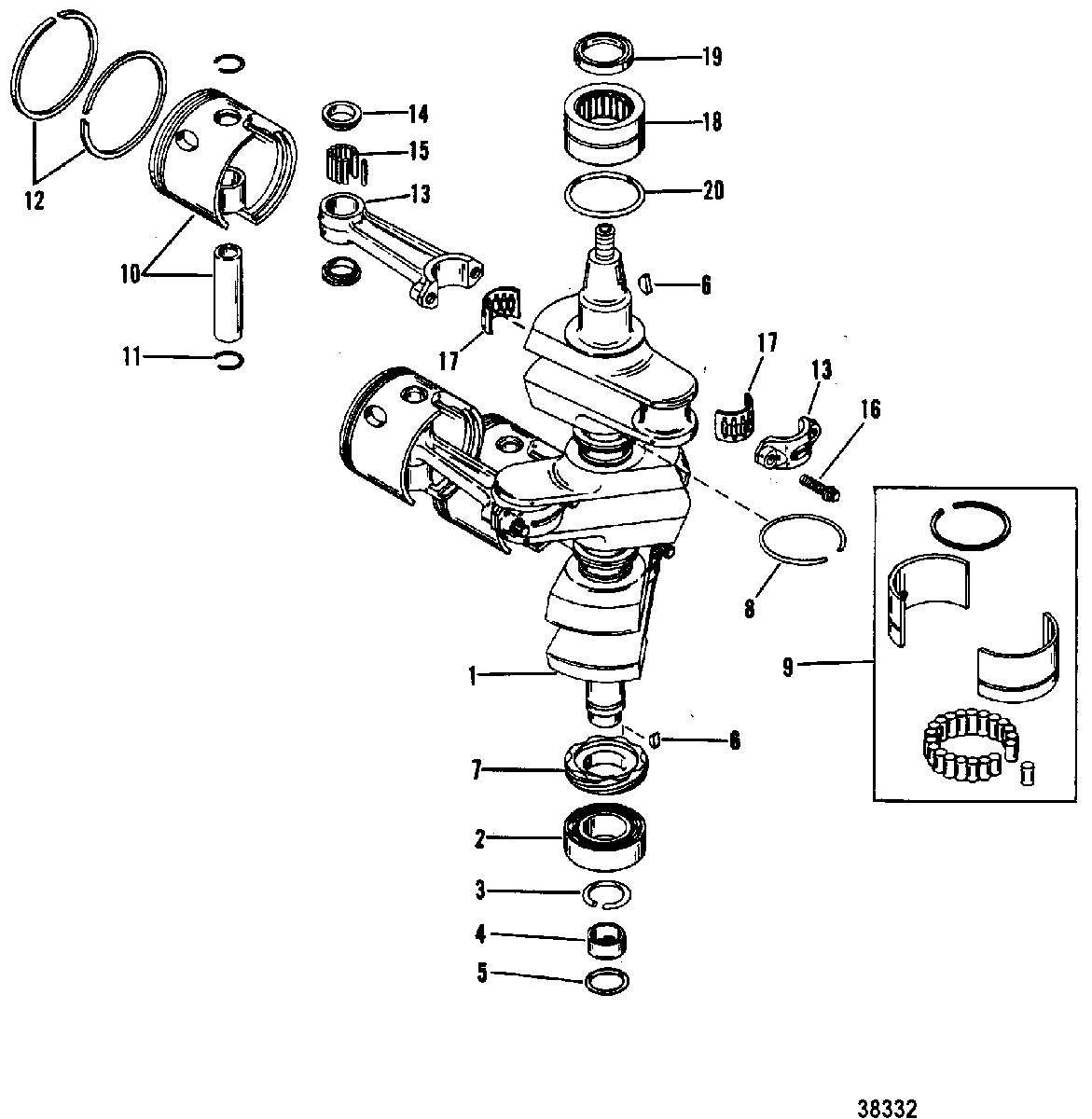

CRANKSHAFT, PISTONS AND CONNECTING RODS(#638-8532--1) для Mariner - 90 (3 CYL.) 9483121 THRU 9506480

  • №
    Артикул
    Название
  • 1
    472-9001T3 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-43011T BEARING, Ball, CRANKSHAFT (LOWER)
    BEARING, Ball, CRANKSHAFT (LOWER)
  • 3
    53-93412 RING, Retaining, BALL BEARING
    RING, Retaining, BALL BEARING
  • 4
    54196A6 CARRIER ASSEMBLY, SEAL
    CARRIER ASSEMBLY, SEAL
  • 5
    65800 PACKING, CARRIER
    PACKING, CARRIER
  • 6
    28-91800 KEY, Woodruff, DRIVE
    KEY, Woodruff, DRIVE
  • 7
    43-43019A1 GEAR ASSEMBLY
    GEAR ASSEMBLY
  • 8
    39-42079A4 RING ASSEMBLY, SEALING
    RING ASSEMBLY, SEALING
  • 9
    42943A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 10
    777-9009T13 PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 10
    777-9009A6 PISTON ASSEMBLY
    (.015 O.S.)
    PISTON ASSEMBLY
    (.015 O.S.)
  • 10
    777-9009A7 PISTON ASSEMBLY
    (.030 O.S.)
    PISTON ASSEMBLY
    (.030 O.S.)
  • 11
    53-857196 RING, Lock
    RING, Lock
  • 12
    39-96170A12 RING SET, Piston
    (STANDARD)
    RING SET, Piston
    (STANDARD)
  • 12
    39-96170A3 RING SET, Piston
    (.015 O.S.)
    RING SET, Piston
    (.015 O.S.)
  • 12
    39-96170A4 RING SET, Piston
    (.030 O.S.)
    RING SET, Piston
    (.030 O.S.)
  • 13
    638-9002A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    12-8M0032839 WASHER
    WASHER
  • 15
    29-88258001 NEEDLE, Roller Bearing
    NEEDLE, Roller Bearing
  • 16
    10-94320 SCREW
    SCREW
  • 17
    31-844338A01 BEARING/CAGE KIT
    BEARING/CAGE KIT
  • 18
    31-43013T3 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 19
    26-43993 SEAL, Oil
    SEAL, Oil
  • 20
    25-823683 O-RING
    O-RING
  • -
    27-43004A99 GASKET SET
    GASKET SET
  • 13589T93 POWERHEAD ASSEMBLY
    (70/75)
    POWERHEAD ASSEMBLY
    (70/75)
  • 13600T93 POWERHEAD ASSEMBLY
    (80)
    POWERHEAD ASSEMBLY
    (80)
  • 15081T96 POWERHEAD ASSEMBLY
    (90)
    POWERHEAD ASSEMBLY
    (90)
