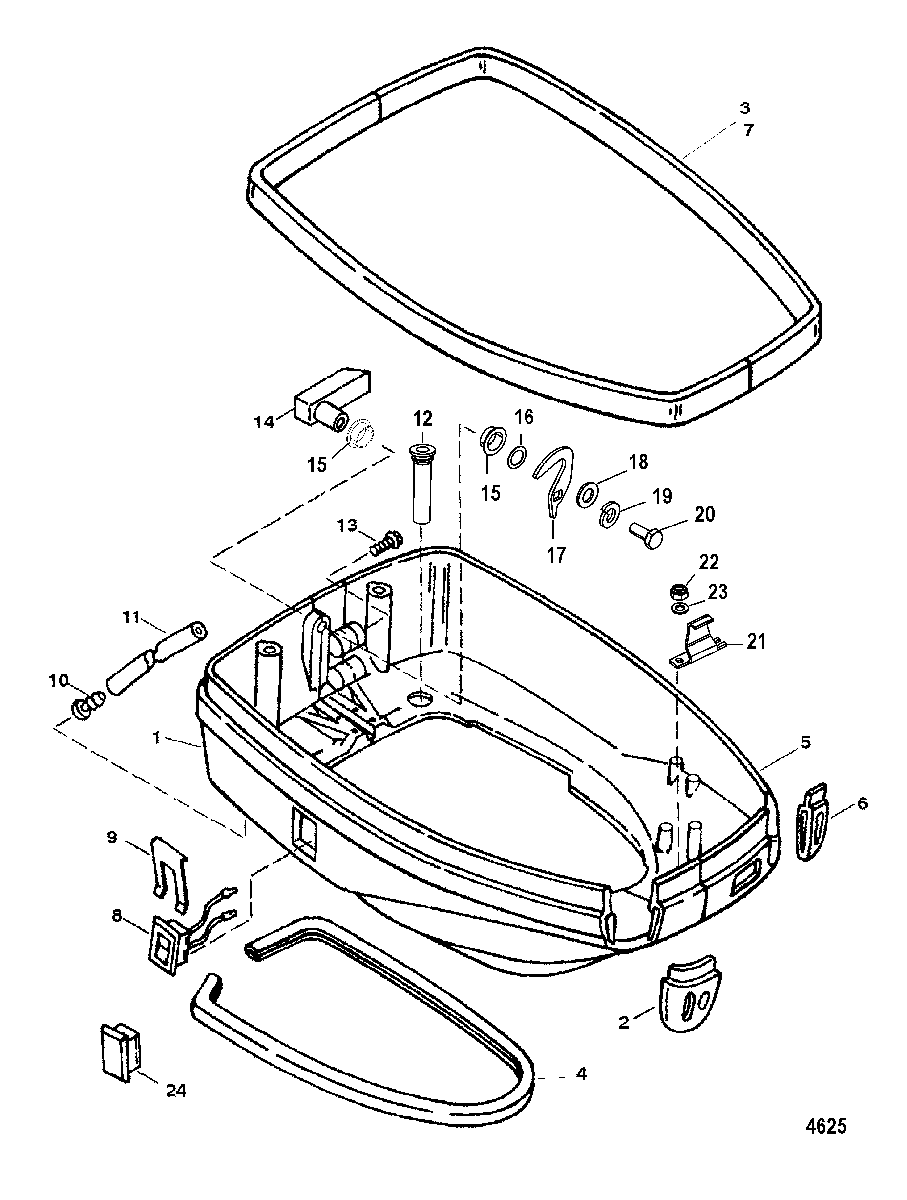

Bottom Cowl для Mariner - 90 (3 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    100-8M0113918 BOTTOM COWL ASSEMBLY, Starboard
    BOTTOM COWL ASSEMBLY, Starboard
  • 2
    25-822556003 GROMMET (Starboard)
    GROMMET (Starboard)
  • 3
    8M0109216 SEAL, (36.00 Inches)
    SEAL, (36.00 Inches)
  • 4
    8M0043167 SEAL, Lower Cowl (44.75 Inches)
    SEAL, Lower Cowl (44.75 Inches)
  • 5
    100-8M0113919 BOTTOM COWL ASSEMBLY, Port
    BOTTOM COWL ASSEMBLY, Port
  • 6
    25-822555001 GROMMET (Port)
    GROMMET (Port)
  • 7
    8M0109216 SEAL, (36.00 Inches)
    SEAL, (36.00 Inches)
  • 8
    87-8M0042301 SWITCH ASSEMBLY
    (Power Trim)
    SWITCH ASSEMBLY
    (Power Trim)
  • 9
    8M0032848 RETAINER
    RETAINER
  • 10
    22-813613 FITTING
    FITTING
  • 11
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 28.00 Inch Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 28.00 Inch Length)
  • 12
    21-817519A2 CHECK VALVE ASSEMBLY, Drain
    CHECK VALVE ASSEMBLY, Drain
  • 13
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 14
    8M0041366 HANDLE
    (Black)
    HANDLE
    (Black)
  • 15
    23-812707 BUSHING
    BUSHING
  • 16
    13-F2047 WASHER, Wave
    WASHER, Wave
  • 17
    8M0001081 CAM
    CAM
  • 18
    12-4002316 WASHER
    WASHER
  • 19
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 20
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 21
    822363T1 RETAINER
    RETAINER
  • 22
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 23
    12-4002316 WASHER
    WASHER
  • 24
    812830T01 PLUG
    (Non Power Trim/Manual Tilt Assist)
    PLUG
    (Non Power Trim/Manual Tilt Assist)
