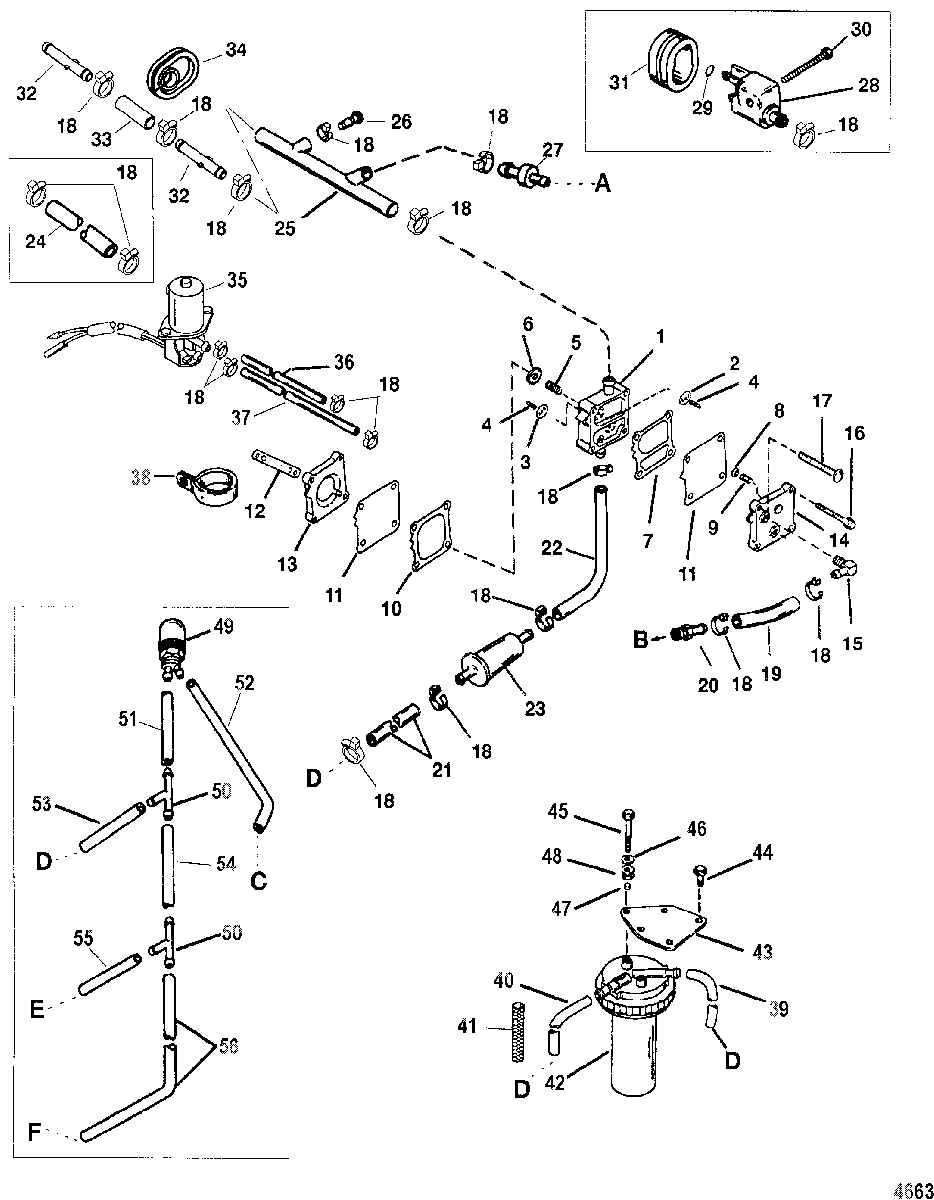

Fuel Pump для Mariner - 90 (3 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • -
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 10
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 11
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 12
    27-987691 GASKET
    GASKET
  • 13
    144303 BASE
    BASE
  • 14
    987752 PLATE
    PLATE
  • 15
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 16
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 17
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 18
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 19
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inches Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inches Length)
  • 20
    22-291112 FITTING
    FITTING
  • 21
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inches Length)
    (Oil Injection)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inches Length)
    (Oil Injection)
  • 22
    32-19017A1 LINE ASSEMBLY, Fuel
    (Oil Injection)
    LINE ASSEMBLY, Fuel
    (Oil Injection)
  • 23
    35-816296Q2 FILTER, Fuel
    (Oil Injection)
    FILTER, Fuel
    (Oil Injection)
  • 24
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6.00 Inches Length)
    (Non Oil Injection)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 6.00 Inches Length)
    (Non Oil Injection)
  • 25
    32-822554 MOLDED HOSE
    (Oil Injection)
    MOLDED HOSE
    (Oil Injection)
  • 26
    19-822772 PLUG, Non Commercial Engines
    (Oil Injection)
    PLUG, Non Commercial Engines
    (Oil Injection)
  • 27
    22-8189941 CHECK VALVE
    (Oil Injection)
    CHECK VALVE
    (Oil Injection)
  • 28
    22-816856Q3 CONNECTOR ASSEMBLY, Fuel
    (Design I)
    CONNECTOR ASSEMBLY, Fuel
    (Design I)
  • 29
    25-16524 O-RING, Fuel Connector
    (Design I)
    O-RING, Fuel Connector
    (Design I)
  • 30
    10-4010635 SCREW, (M6 x 35) Stainless Steel
    (Design I)
    SCREW, (M6 x 35) Stainless Steel
    (Design I)
  • 31
    25-145091 GROMMET
    (Design I)
    GROMMET
    (Design I)
  • 32
    22-822769 CONNECTOR
    (Design II)
    CONNECTOR
    (Design II)
  • 33
    32-85682257 TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inches Length)
    (Design II)
    TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inches Length)
    (Design II)
  • 34
    25-145093 GROMMET
    (Design II)
    GROMMET
    (Design II)
  • 35
    89-819503A1 SOLENOID ASSEMBLY, Enrichner Valve
    (Electric)
    SOLENOID ASSEMBLY, Enrichner Valve
    (Electric)
  • 36
    32-1430165 TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inches Length)
    (Electric)
    TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inches Length)
    (Electric)
  • 37
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inches Length)
    (Electric)
    TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inches Length)
    (Electric)
  • 38
    54-188871 CLAMP
    (Electric)
    CLAMP
    (Electric)
  • 39
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 17.00 Inches Length)
    (Non Oil Injection)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 17.00 Inches Length)
    (Non Oil Injection)
  • 40
    32-83476463 TUBING, (32.00 Inches Bulk) (Cut to 13.00 Inches Length)
    (Non Oil Injection)
    TUBING, (32.00 Inches Bulk) (Cut to 13.00 Inches Length)
    (Non Oil Injection)
  • 41
    23-83312531 INSULATING SLEEVE
    (Non Oil Injection)
    INSULATING SLEEVE
    (Non Oil Injection)
  • 42
    35-826634T01 FILTER, Fuel
    (Non Oil Injection)
    FILTER, Fuel
    (Non Oil Injection)
  • 43
    827961 BRACKET
    (Non Oil Injection)
    BRACKET
    (Non Oil Injection)
  • 44
    10-82129114 SCREW, (M6 x 14)
    (Non Oil Injection)
    SCREW, (M6 x 14)
    (Non Oil Injection)
  • 45
    10-4010630 SCREW, (M6 x 30) Stainless Steel
    (Non Oil Injection)
    SCREW, (M6 x 30) Stainless Steel
    (Non Oil Injection)
  • 46
    12-4002316 WASHER
    (Non Oil Injection)
    WASHER
    (Non Oil Injection)
  • 47
    23-42116 BUSHING
    (Non Oil Injection)
    BUSHING
    (Non Oil Injection)
  • 48
    25-42117 GROMMET
    (Non Oil Injection)
    GROMMET
    (Non Oil Injection)
  • 49
    858763 PRIMER BULB
    (Manual)
    PRIMER BULB
    (Manual)
  • 50
    22-59169003 FITTING, Tee
    (Manual)
    FITTING, Tee
    (Manual)
  • 51
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 6.00 Inches Length)
    (Manual)
    TUBING, (20.00 Feet Bulk) (Cut to 6.00 Inches Length)
    (Manual)
  • 52
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9.50 Inches Length)
    (Manual)
    TUBING, (20.00 Feet Bulk) (Cut to 9.50 Inches Length)
    (Manual)
  • 53
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches Length)
    (Manual)
    TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches Length)
    (Manual)
  • 54
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches Length)
    (Manual)
    TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches Length)
    (Manual)
  • 55
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches Length)
    (Manual)
    TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches Length)
    (Manual)
  • 56
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 6.00 Inches Length)
    (Manual)
    TUBING, (20.00 Feet Bulk) (Cut to 6.00 Inches Length)
    (Manual)
  • -
    27-43004A99 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    898208A02 POWERHEAD ASSEMBLY
    (Non Oil Injection)
    POWERHEAD ASSEMBLY
    (Non Oil Injection)
  • -
    809837T97 POWERHEAD ASSEMBLY
    (Oil Injection)
    POWERHEAD ASSEMBLY
    (Oil Injection)
