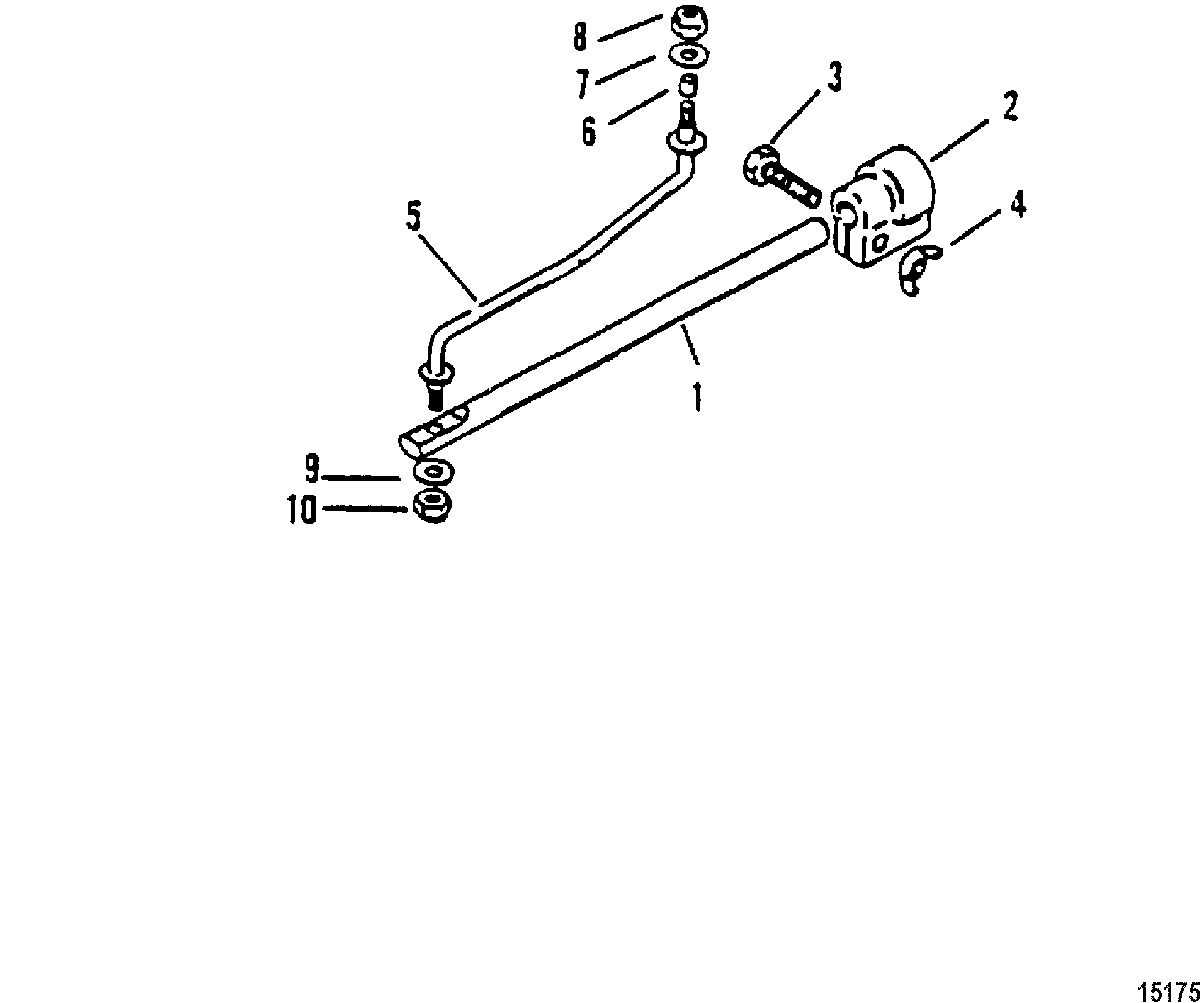

Co-Pilot для Mariner - 90 (3 CYL.) 0B240451 THRU 0C221999
-
№АртикулНазвание
-
-56-52148A7 CO-PILOT ASSEMBLYCO-PILOT ASSEMBLY
-
152148 PILOT RODPILOT ROD
-
211-8M0103848 NUT ASSEMBLYNUT ASSEMBLY
-
310-36154 SCREW, (.250-28 x 1.380)SCREW, (.250-28 x 1.380)
-
411-52152 WING NUTWING NUT
-
5873491 RODROD
-
623-521512 BUSHINGBUSHING
-
712-20722 WASHER, (.328 x .625 x .060)WASHER, (.328 x .625 x .060)
-
811-826709111 NUT, (.312-24)NUT, (.312-24)
-
912-20722 WASHER, (.328 x .625 x .060)WASHER, (.328 x .625 x .060)
-
1011-826709111 NUT, (.312-24)NUT, (.312-24)
