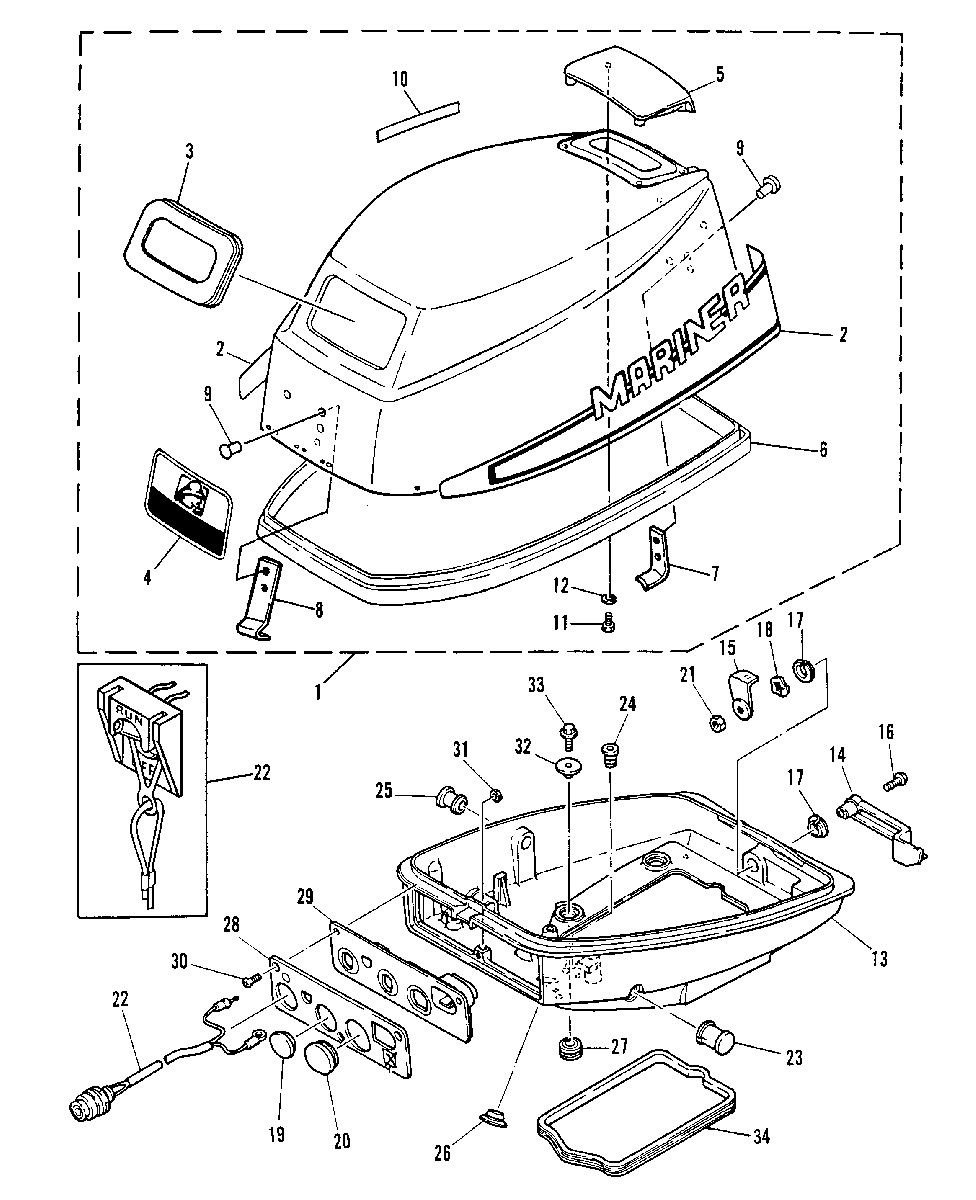

COWLING для Mariner - 8C 6G1-007990 THRU 027237

  • №
    Артикул
    Название
  • 1
    2168-9372M TOP COWLING ASS'Y, (8M MODEL)
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    TOP COWLING ASS'Y, (8M MODEL)
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 1
    2168-9372M TOP COWLING ASS'Y, (8M MODEL)
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    TOP COWLING ASS'Y, (8M MODEL)
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 1
    2168-9373M TOP COWLING ASS'Y, (6M MODEL)
    TOP COWLING ASS'Y, (6M MODEL)
  • 2
    37-11938M DECAL, SIDE SET (8M MODEL)
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    DECAL, SIDE SET (8M MODEL)
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 2
    37-11938M DECAL, SIDE SET (8M MODEL)
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    DECAL, SIDE SET (8M MODEL)
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 2
    37-11939M DECAL, SIDE SET (6M MODEL)
    DECAL, SIDE SET (6M MODEL)
  • 3
    26-11403M SEAL
    SEAL
  • 4
    37-11940M DECAL, FRONT
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    DECAL, FRONT
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 4
    37-11940M DECAL, FRONT
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    DECAL, FRONT
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 5
    11937M MOLDING, AIR DUCT
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    MOLDING, AIR DUCT
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 5
    11937M MOLDING, AIR DUCT
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000056
    MOLDING, AIR DUCT
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000056
  • 6
    95587M SEAL
    SEAL
  • 7
    11406M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 8
    11407M HOOK
    HOOK
  • 9
    17-83140M RIVET
    RIVET
  • 10
    37-81202M INDICATOR, SHIFT
    INDICATOR, SHIFT
  • 11
    10-91772M BOLT
    BOLT
  • 12
    12-82214M WASHER
    WASHER
  • 13
    2168-9509M COWLING, BOTTOM
    SERIAL 00006037-09999999
    COWLING, BOTTOM
    SERIAL 00006037-09999999
  • 13
    2168-9509M COWLING, BOTTOM
    SERIAL 00000557-00006036
    COWLING, BOTTOM
    SERIAL 00000557-00006036
  • 13
    2168-9509M COWLING, BOTTOM
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    COWLING, BOTTOM
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 14
    11408M LEVER, CLAMP
    LEVER, CLAMP
  • 15
    91660M HOOK, CLAMP
    HOOK, CLAMP
  • 16
    10-8527876 BOLT
    BOLT
  • 17
    23-11409M BUSHING
    BUSHING
  • 18
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 19
    19-11410M PLUG
    PLUG
  • 20
    19-11411M PLUG
    PLUG
  • 21
    11-82390M NUT
    NUT
  • 22
    87-14222M LANYARD IGNITION SWITCH ASS'Y
    SERIAL 00006037-09999999
    LANYARD IGNITION SWITCH ASS'Y
    SERIAL 00006037-09999999
  • 22
    87-93102M STOP SWITCH ASS'Y
    SERIAL 00000000-00006036
    STOP SWITCH ASS'Y
    SERIAL 00000000-00006036
  • 23
    19-11412M PLUG
    PLUG
  • 24
    25-11413M GROMMET
    GROMMET
  • 25
    25-11414M GROMMET
    GROMMET
  • 26
    19-11415M PLUG
    PLUG
  • 27
    25-11416T GROMMET
    GROMMET
  • 28
    11417M PANEL
    PANEL
  • 29
    11418M BRACKET
    BRACKET
  • 30
    10-11419M SCREW
    SCREW
  • 31
    11-82388M NUT
    NUT
  • 32
    23-11420M COLLAR
    COLLAR
  • 33
    10-91674M BOLT
    BOLT
  • 34
    26-11421M SEAL
    SEAL
