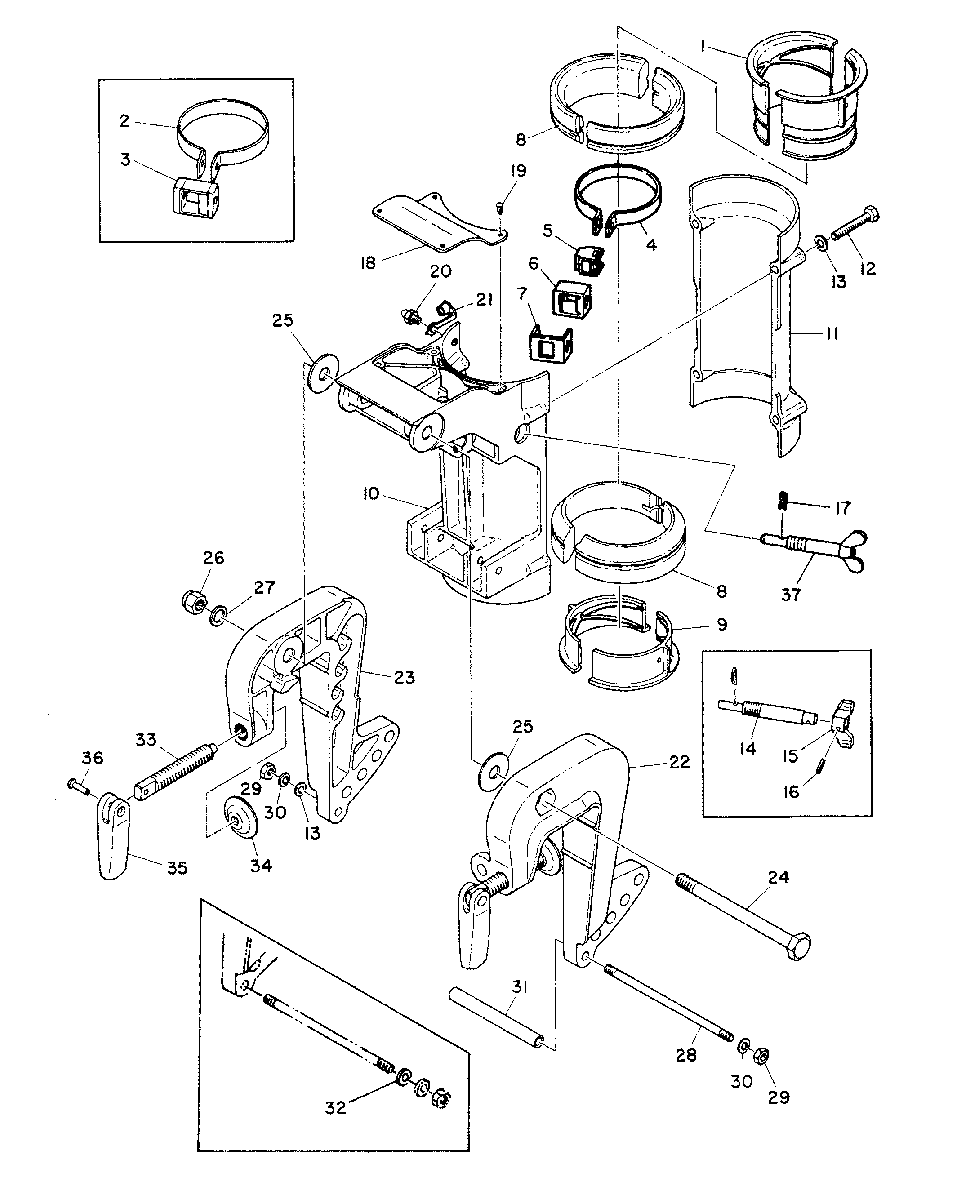

CLAMP AND SWIVEL BRACKET для Mariner - 8A 682-300826 THRU 308440 (ML)

  • №
    Артикул
    Название
  • 1
    80513T COLLAR, THRUST-PIVOT SHAFT-UPPER...
    COLLAR, THRUST-PIVOT SHAFT-UPPER...
  • 2
    80511M CLAMP, FRICTION...
    SERIAL 00000000-00027825
    CLAMP, FRICTION...
    SERIAL 00000000-00027825
  • 3
    80512M LOCK, FRICTION CLAMP...
    SERIAL 00000000-00027825
    LOCK, FRICTION CLAMP...
    SERIAL 00000000-00027825
  • 4
    82889M PLATE... .
    SERIAL 00027826-09999999
    PLATE... .
    SERIAL 00027826-09999999
  • 5
    82890M PLATE... .
    SERIAL 00027826-09999999
    PLATE... .
    SERIAL 00027826-09999999
  • 6
    82891M PLATE...
    SERIAL 00027826-09999999
    PLATE...
    SERIAL 00027826-09999999
  • 7
    82892M COVER... .
    SERIAL 00027826-09999999
    COVER... .
    SERIAL 00027826-09999999
  • 8
    23-81056M BUSHING, PIVOT SHAFT...
    BUSHING, PIVOT SHAFT...
  • 9
    80514M COLLAR, THRUST-PIVOT SHAFT-LOWER...
    COLLAR, THRUST-PIVOT SHAFT-LOWER...
  • 10
    1485-6916M BRACKET, SWIVEL-FRONT...
    SERIAL 00000000-00027075
    BRACKET, SWIVEL-FRONT...
    SERIAL 00000000-00027075
  • 10
    1485-6916M BRACKET, SWIVEL-FRONT...
    SERIAL 00000000-00027076
    BRACKET, SWIVEL-FRONT...
    SERIAL 00000000-00027076
  • 11
    80520M BRACKET, SWIVEL-REAR...
    BRACKET, SWIVEL-REAR...
  • 12
    10-827043M BOLT, REAR SWIVEL BRACKET ATTACHING...
    BOLT, REAR SWIVEL BRACKET ATTACHING...
  • 13
    12-82214M WASHER...
    WASHER...
  • 14
    10-82700M SCREW, FRICTION CLAMP ADJUSTING...
    SERIAL 00000000-00020160
    SCREW, FRICTION CLAMP ADJUSTING...
    SERIAL 00000000-00020160
  • 15
    11-82577M NUT, WING-FRICTION CLAMP SCREW... .
    SERIAL 00000000-00020160
    NUT, WING-FRICTION CLAMP SCREW... .
    SERIAL 00000000-00020160
  • 16
    17-82738M PIN, ROLL-WING NUT... .
    SERIAL 00000000-00020160
    PIN, ROLL-WING NUT... .
    SERIAL 00000000-00020160
  • 17
    18-82049M PIN, ADJUSTING SCREW RETAINING...
    SERIAL 00000000-00026575
    PIN, ADJUSTING SCREW RETAINING...
    SERIAL 00000000-00026575
  • 18
    81065M COVER, SWIVEL BRACKET...
    COVER, SWIVEL BRACKET...
  • 19
    10-14265M RIVET, SWIVEL BRACKET COVER...
    RIVET, SWIVEL BRACKET COVER...
  • 20
    22-82369M FITTING, GREASE...
    FITTING, GREASE...
  • 21
    81439M CAP, GREASE FITTING...
    CAP, GREASE FITTING...
  • 22
    1484-821596A1 CLAMP BRACKET, PORT...
    CLAMP BRACKET, PORT...
  • 23
    1484-6703M CLAMP BRACKET, STARBOARD...
    CLAMP BRACKET, STARBOARD...
  • 24
    10-98969M CLAMP BRACKET...
    CLAMP BRACKET...
  • 25
    12-98970M WASHER, CLAMP BRACKET BOLT...
    WASHER, CLAMP BRACKET BOLT...
  • 26
    11-81785M NUT, CLAMP BRACKET BOLT...
    NUT, CLAMP BRACKET BOLT...
  • 27
    12-81806M WASHER, CLAMP BRACKET BOLT...
    WASHER, CLAMP BRACKET BOLT...
  • 28
    16-81726M STUD, CLAMP BRACKET... .
    SERIAL 00000000-00027075
    STUD, CLAMP BRACKET... .
    SERIAL 00000000-00027075
  • 28
    10-82921M ..
    SERIAL 00027076-09999999
    ..
    SERIAL 00027076-09999999
  • 29
    11-82389M NUT, CLAMP BRACKET STUD...
    SERIAL 00027075-09999999
    NUT, CLAMP BRACKET STUD...
    SERIAL 00027075-09999999
  • 29
    11-82389M NUT, CLAMP BRACKET STUD... .
    SERIAL 00027076-09999999
    NUT, CLAMP BRACKET STUD... .
    SERIAL 00027076-09999999
  • 30
    13-82212M LOCK WASHER, CLAMP BRACKET STUD... .
    SERIAL 00000000-00027075
    LOCK WASHER, CLAMP BRACKET STUD... .
    SERIAL 00000000-00027075
  • 30
    13-82212M LOCK WASHER, CLAMP BRACKET STUD...
    SERIAL 00027076-09999999
    LOCK WASHER, CLAMP BRACKET STUD...
    SERIAL 00027076-09999999
  • 31
    23-82116M SPACER, CLAMP BRACKET STUD...
    SPACER, CLAMP BRACKET STUD...
  • 32
    12-82214M WASHER... .
    SERIAL 00000000-00020160
    WASHER... .
    SERIAL 00000000-00020160
  • 33
    10-81755M SCREW, TRANSOM CLAMP...
    SCREW, TRANSOM CLAMP...
  • 34
    12-80638M PAD, TRANSOM CLAMP SCREW...
    PAD, TRANSOM CLAMP SCREW...
  • 35
    809959M HANDLE, TRANSOM CLAMP SCREW...
    HANDLE, TRANSOM CLAMP SCREW...
  • 36
    17-81888M PIN, TRANSOM CLAMP SCREW...
    PIN, TRANSOM CLAMP SCREW...
  • 37
    10-81055M SCREW...
    SERIAL 00020161-09999999
    SCREW...
    SERIAL 00020161-09999999
