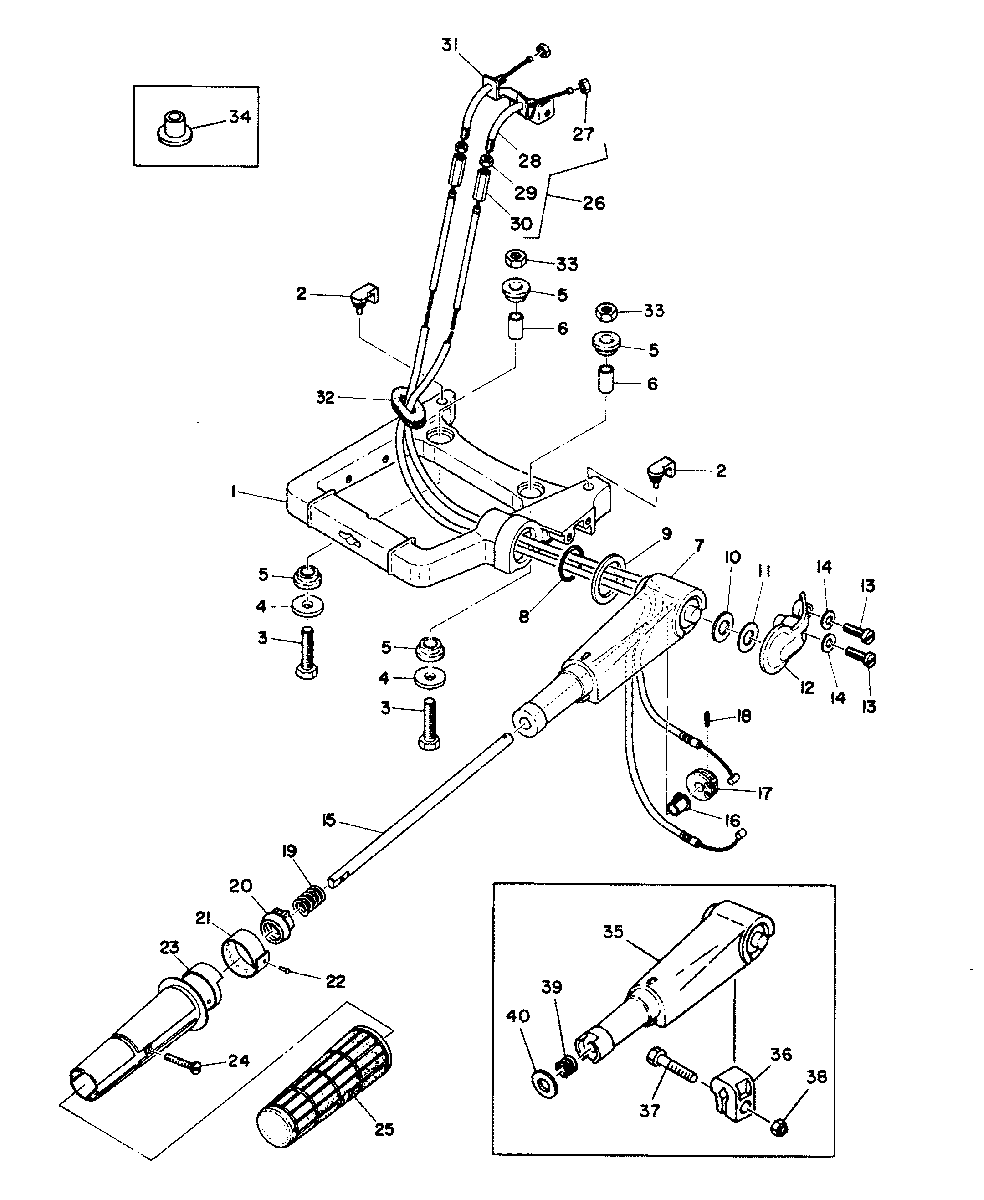

STEERING HANDLE для Mariner - 8A 682-250101 THRU 250515 (E)
-
№АртикулНазвание
-
181054M BRACKET, STEERING...BRACKET, STEERING...
-
280510M SPACER, STEERING BRACKET...SPACER, STEERING BRACKET...
-
310-82442M BOLT, STEERING BRACKET ATTACHING...BOLT, STEERING BRACKET ATTACHING...
-
412-81801M WASHER, STEERING BRACKET BOLT... .
SERIAL 00000000-00026575WASHER, STEERING BRACKET BOLT... .
SERIAL 00000000-00026575 -
525-80515M GROMMET, STEERING BRACKET BOLT...GROMMET, STEERING BRACKET BOLT...
-
623-81991M BUSHING, STEERING BRACKET BOLT... .
SERIAL 00000000-00026575BUSHING, STEERING BRACKET BOLT... .
SERIAL 00000000-00026575 -
783093M ARM, STEERING...
SERIAL 00000000-00020160ARM, STEERING...
SERIAL 00000000-00020160 -
783093M ARM, STEERING...
SERIAL 16-57630-09999999ARM, STEERING...
SERIAL 16-57630-09999999 -
825-82272M O-RING, STEERING ARM...O-RING, STEERING ARM...
-
923-82121M SPACER, STEERING ARM...SPACER, STEERING ARM...
-
1023-82118M SPACER, STEERING ARM...SPACER, STEERING ARM...
-
1123-80506M SPACER, STEERING ARM (0.5MM)...SPACER, STEERING ARM (0.5MM)...
-
1123-898103217 SPACER, STEERING ARM (0.6MM)...SPACER, STEERING ARM (0.6MM)...
-
1123-80508M SPACER, STEERING ARM (0.8MM)...SPACER, STEERING ARM (0.8MM)...
-
1280503M CAP, STEERING ARM PIVOT...CAP, STEERING ARM PIVOT...
-
1310-11828M SCREW, PIVOT CAP ATTACHING...SCREW, PIVOT CAP ATTACHING...
-
1413-82212M LOCKWASHER, PIVOT CAP SCREW...LOCKWASHER, PIVOT CAP SCREW...
-
1581052M SHAFT, THROTTLE...SHAFT, THROTTLE...
-
1623-81945M BUSHING, STEERING ARM...BUSHING, STEERING ARM...
-
1782610M CAM, THROTTLE...
SERIAL 00000000-00020160CAM, THROTTLE...
SERIAL 00000000-00020160 -
1781053M CAM, THROTTLE...
SERIAL 00020161-09999999CAM, THROTTLE...
SERIAL 00020161-09999999 -
1817-82146M PIN, ROLL-THROTTLE CAM...
SERIAL 00000000-00020160PIN, ROLL-THROTTLE CAM...
SERIAL 00000000-00020160 -
1817-82150M PIN, ROLL-THROTTLE CAM... .
SERIAL 00020161-09999999PIN, ROLL-THROTTLE CAM... .
SERIAL 00020161-09999999 -
1924-82095M SPRING, THROTTLE SHAFT...
SERIAL 00000000-00020160SPRING, THROTTLE SHAFT...
SERIAL 00000000-00020160 -
1924-82092M SPRING, THROTTLE SHAFT...
SERIAL 6-57270)-0Z999999SPRING, THROTTLE SHAFT...
SERIAL 6-57270)-0Z999999 -
2012-82219M WASHER, THROTTLE SHAFT... .
SERIAL 00000000-00020160WASHER, THROTTLE SHAFT... .
SERIAL 00000000-00020160 -
2081132M FRICTION, HANDLE GRIP... .
SERIAL 16-57270-09999999FRICTION, HANDLE GRIP... .
SERIAL 16-57270-09999999 -
2180505M INDICATOR, THROTTLE...INDICATOR, THROTTLE...
-
2217-81907M RIVET, INDICATOR... .
SERIAL 00000000-00020160RIVET, INDICATOR... .
SERIAL 00000000-00020160 -
2380504M HANDLE, THROTTLE...HANDLE, THROTTLE...
-
2410-811916M SCREW, HANDLE ATTACHING...SCREW, HANDLE ATTACHING...
-
2580509M GRIP, STEERING ARM END THROTTLE...GRIP, STEERING ARM END THROTTLE...
-
2681045M CABLE, THROTTLE ASS'Y...CABLE, THROTTLE ASS'Y...
-
2711-81762M NUT, CABLE GUIDE ATTACHING...NUT, CABLE GUIDE ATTACHING...
-
2880481M GUIDE, CABLE...GUIDE, CABLE...
-
2911-81761M LOCK NUT, CABLE ADJUSTING...LOCK NUT, CABLE ADJUSTING...
-
3011-81778M NUT, THROTTLE CABLE ADJUSTMENT...NUT, THROTTLE CABLE ADJUSTMENT...
-
3181037M BRACKET, THROTTLE CABLE...BRACKET, THROTTLE CABLE...
-
3225-82054M GROMMET, STEERING HANDLE...GROMMET, STEERING HANDLE...
-
3311-82382M . .
SERIAL 00020161-09999999. .
SERIAL 00020161-09999999 -
3482956M COLLAR...
SERIAL 00000000-00026575COLLAR...
SERIAL 00000000-00026575 -
3583093M ARM, STEERING... .
SERIAL 00021891-09999999ARM, STEERING... .
SERIAL 00021891-09999999 -
3682895M FRICTION...
SERIAL 00021891-09999999FRICTION...
SERIAL 00021891-09999999 -
3710-84058M ..
SERIAL 00021891-09999999..
SERIAL 00021891-09999999 -
3811-83056M .
SERIAL 00021891-09999999.
SERIAL 00021891-09999999 -
3924-82095M SPRING...
SERIAL 00021891-09999999SPRING...
SERIAL 00021891-09999999 -
4012-82220M WASHER...
SERIAL 00021891-09999999WASHER...
SERIAL 00021891-09999999
