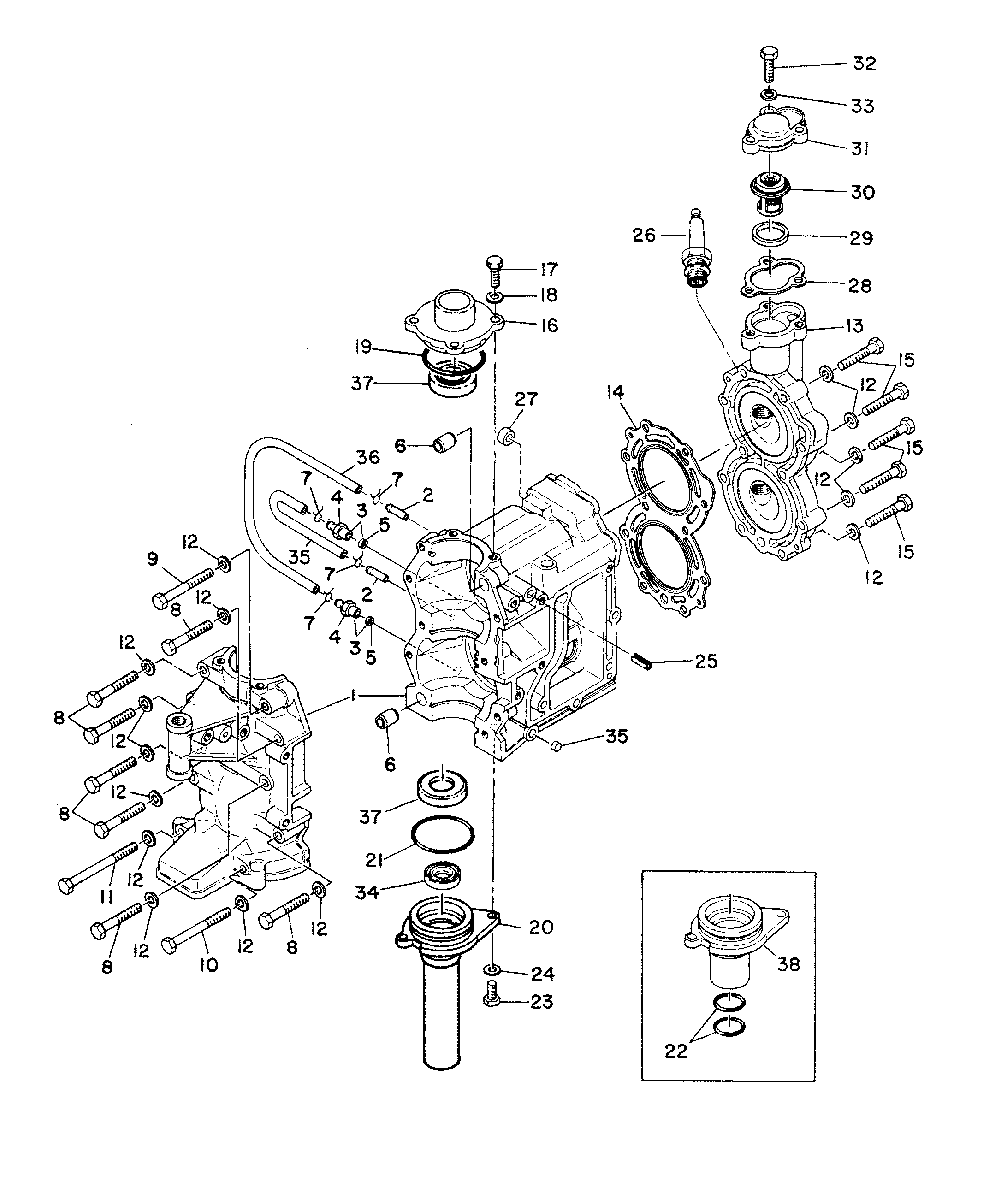

CRANKCASE AND CYLINDER HEAD для Mariner - 8A 655-300100 AND BELOW

  • №
    Артикул
    Название
  • 1
    870-6915M CRANKCASE AND CYLINDER ASS'Y
    SERIAL 00000000-00026575
    CRANKCASE AND CYLINDER ASS'Y
    SERIAL 00000000-00026575
  • 1
    870-6915M CRANKCASE AND CYLINDER ASS'Y
    SERIAL 00026576-09999999
    CRANKCASE AND CYLINDER ASS'Y
    SERIAL 00026576-09999999
  • 2
    22-80122M FITTING, FEED BACK HOSE
    SERIAL 00000000-00026575
    FITTING, FEED BACK HOSE
    SERIAL 00000000-00026575
  • 2
    22-80743M FITIING, FEED BACK HOSE...
    SERIAL 00026576-09999999
    FITIING, FEED BACK HOSE...
    SERIAL 00026576-09999999
  • 3
    21-80105M CHECK VALVE ASS'Y...
    SERIAL 00000000-00026575
    CHECK VALVE ASS'Y...
    SERIAL 00000000-00026575
  • 3
    21-80727M CHECK VALVE ASS'Y...
    SERIAL 00026576-09999999
    CHECK VALVE ASS'Y...
    SERIAL 00026576-09999999
  • 4
    22-80106M FITTING...
    FITTING...
  • 5
    21-80107M CHECK VALVE...
    CHECK VALVE...
  • 6
    17-14214M PIN, DOWEL-CRANKCASE...
    PIN, DOWEL-CRANKCASE...
  • 7
    54-82046M CLAMP, FEED BACK HOSE...
    CLAMP, FEED BACK HOSE...
  • 8
    10-84657M BOLT, CRANKCASE ATTACHING...
    BOLT, CRANKCASE ATTACHING...
  • 9
    10-84931M BOLT, CRANKCASE ATTACHING...
    BOLT, CRANKCASE ATTACHING...
  • 10
    10-84658M BOLT, CRANKCASE ATTACHING...
    BOLT, CRANKCASE ATTACHING...
  • 11
    10-82435M BOLT, CRANKCASE ATTACHING...
    BOLT, CRANKCASE ATTACHING...
  • 12
    12-81792M WASHER...
    WASHER...
  • 13
    968-6775M HEAD, CYLINDER...
    HEAD, CYLINDER...
  • 14
    27-81027M GASKET, CYLINDER HEAD...
    GASKET, CYLINDER HEAD...
  • 15
    10-83285M BOLT, CYLINDER HEAD ATTACHING...
    BOLT, CYLINDER HEAD ATTACHING...
  • 16
    82659M HOUSING, OIL SEAL-UPPER...
    SERIAL 00000000-00020160
    HOUSING, OIL SEAL-UPPER...
    SERIAL 00000000-00020160
  • 16
    81038M HOUSING, OIL SEAL-UPPER...
    SERIAL 00020161-09999999
    HOUSING, OIL SEAL-UPPER...
    SERIAL 00020161-09999999
  • 16
    83086M HOUSING, OIL SEAL-UPPER CHROME (OPTIONAL)...
    SERIAL 00000000-00020160
    HOUSING, OIL SEAL-UPPER CHROME (OPTIONAL)...
    SERIAL 00000000-00020160
  • 16
    83087M HOUSING, OIL SEAL-UPPER (OPTIONAL)...
    SERIAL 00020161-09999999
    HOUSING, OIL SEAL-UPPER (OPTIONAL)...
    SERIAL 00020161-09999999
  • 17
    10-826957M BOLT, SEAL HOUSING ATTACHING...
    SERIAL 00000000-00020160
    BOLT, SEAL HOUSING ATTACHING...
    SERIAL 00000000-00020160
  • 17
    10-82423M ..
    SERIAL 00020161-09999999
    ..
    SERIAL 00020161-09999999
  • 18
    12-82214M WASHER, SEAL HOUSING BOLT...
    WASHER, SEAL HOUSING BOLT...
  • 19
    25-82276M O-RING, UPPER OIL SEAL HOUSING...
    O-RING, UPPER OIL SEAL HOUSING...
  • 20
    81039M HOUSING, OIL SEAL-LOWER...
    SERIAL 00020161-09999999
    HOUSING, OIL SEAL-LOWER...
    SERIAL 00020161-09999999
  • 21
    25-95602M O-RING, LOWER OIL SEAL HOUSING...
    O-RING, LOWER OIL SEAL HOUSING...
  • 22
    25-82746M O-RING, LOWER OIL SEAL HOUSING...
    SERIAL 00000000-00020160
    O-RING, LOWER OIL SEAL HOUSING...
    SERIAL 00000000-00020160
  • 23
    10-84368M BOLT, LOWER OIL SEAL HOUSING ATTACHING...
    BOLT, LOWER OIL SEAL HOUSING ATTACHING...
  • 24
    12-82214M WASHER, OIL SEAL BOT...
    WASHER, OIL SEAL BOT...
  • 25
    17-82160M PIN, ROLL-CYLINDER...
    PIN, ROLL-CYLINDER...
  • 26
    33-82370M1 SPARK PLUG, B-6HS (NGK)...
    SPARK PLUG, B-6HS (NGK)...
  • 27
    80562M DAMPER, IGNITION COIL...
    DAMPER, IGNITION COIL...
  • 28
    27-81031 GASKET, THERMOSTAT COVER...
    GASKET, THERMOSTAT COVER...
  • 29
    23-82622M SPACER, THERMOSTAT...
    SERIAL 00000000-00020160
    SPACER, THERMOSTAT...
    SERIAL 00000000-00020160
  • 29
    12-81835M SPACER, THERMOSTAT...
    SERIAL 00020161-09999999
    SPACER, THERMOSTAT...
    SERIAL 00020161-09999999
  • 30
    81028M THERMOSTAT...
    THERMOSTAT...
  • 31
    82658M COVER, THERMOSTAT...
    SERIAL 00000000-00020160
    COVER, THERMOSTAT...
    SERIAL 00000000-00020160
  • 31
    81030M COVER, THERMOSTAT...
    SERIAL 00020161-09999999
    COVER, THERMOSTAT...
    SERIAL 00020161-09999999
  • 32
    10-84058M BOLT, THERMOSTAT COVER...
    BOLT, THERMOSTAT COVER...
  • 33
    13-82212M LOCKWASHER, COVER BOLT...
    LOCKWASHER, COVER BOLT...
  • 34
    26-82165M OIL SEAL, LOWER HOUSING...
    OIL SEAL, LOWER HOUSING...
  • 35
    32-811045M HOSE, FUEL FEED BACK...
    SERIAL 00000000-00026575
    HOSE, FUEL FEED BACK...
    SERIAL 00000000-00026575
  • 35
    32-811045M HOSE, FUEL FEED BACK...
    SERIAL 00026576-09999999
    HOSE, FUEL FEED BACK...
    SERIAL 00026576-09999999
  • 36
    32-811045M HOSE, FEED BACK...
    SERIAL 00000000-00026575
    HOSE, FEED BACK...
    SERIAL 00000000-00026575
  • 36
    32-811045M HOSE, FEED BACK...
    SERIAL 00026576-09999999
    HOSE, FEED BACK...
    SERIAL 00026576-09999999
  • 37
    26-18843M OIL SEAL...
    OIL SEAL...
  • 38
    82660M HOUSING, OIL SEAL-LOWER... .
    SERIAL 00000000-00020160
    HOUSING, OIL SEAL-LOWER... .
    SERIAL 00000000-00020160
