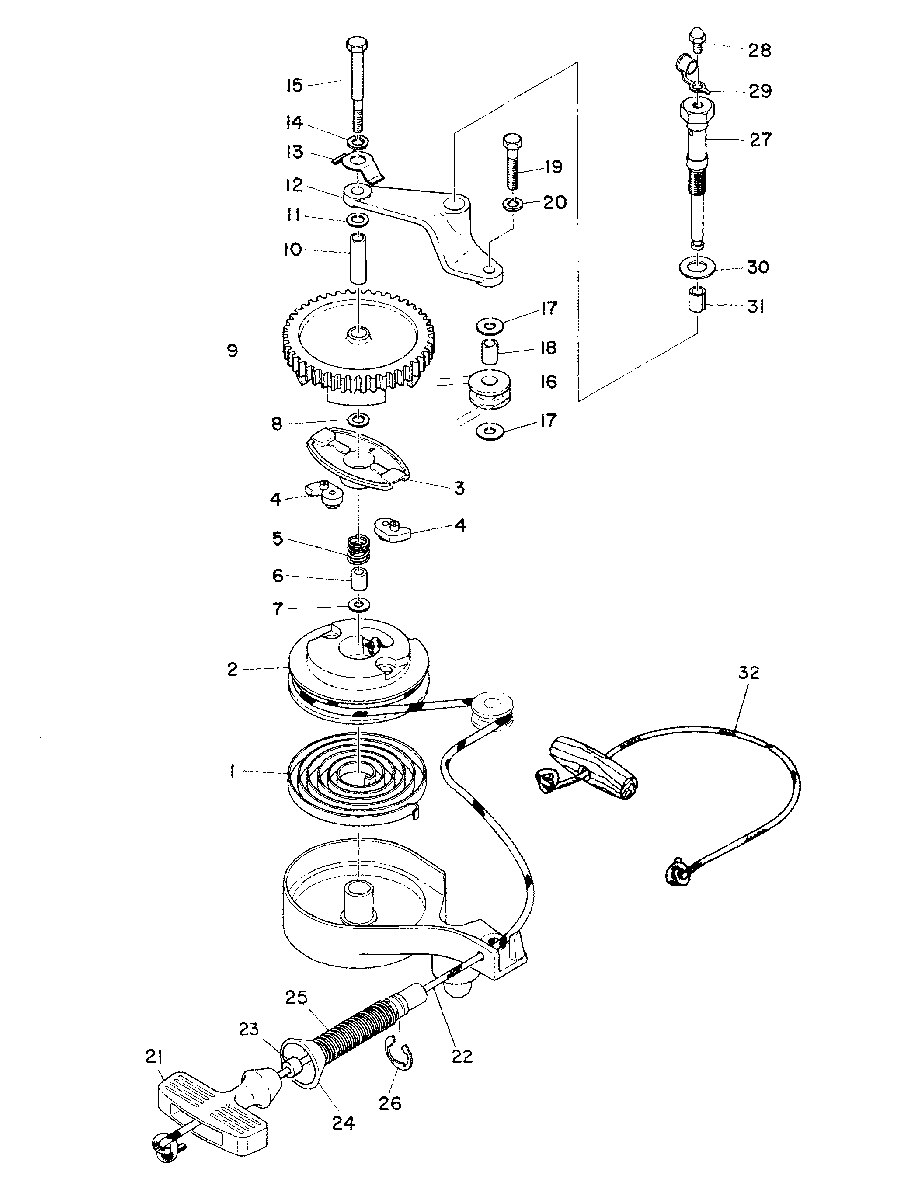

RECOIL STARTER для Mariner - 8A 655-000300 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    80455M STARTER ASS"Y...
    STARTER ASS"Y...
  • 1
    24-80457M SPRING, STARTER...
    SPRING, STARTER...
  • 2
    50-80458M STARTER, SHEAVE...
    STARTER, SHEAVE...
  • 3
    80460M DRIVE, PLATE...
    DRIVE, PLATE...
  • 4
    80469M PAWL, STARTER...
    PAWL, STARTER...
  • 5
    24-80459M SPRING, DRIVE PLATE...
    SPRING, DRIVE PLATE...
  • 6
    23-80473M COLLAR, STARTER ASS'Y BOLT...
    COLLAR, STARTER ASS'Y BOLT...
  • 7
    12-82209M WASHER, STARTER ASS'Y BOLT...
    WASHER, STARTER ASS'Y BOLT...
  • 8
    12-80466M WASHER, THRUST-DRIVE PLATE...
    WASHER, THRUST-DRIVE PLATE...
  • 9
    43-80465M GEAR, STARTER PINION...
    GEAR, STARTER PINION...
  • 10
    23-80462M SPACER, STARTER BOLT...
    SPACER, STARTER BOLT...
  • 11
    12-80468M WASHER, THRUST-STARTER BOLT...
    WASHER, THRUST-STARTER BOLT...
  • 12
    80456M BRACKET, STARTER PULLEY...
    BRACKET, STARTER PULLEY...
  • 13
    13-80467M WASHER, TENSION-STARTER ASS'Y...
    WASHER, TENSION-STARTER ASS'Y...
  • 14
    13-82215M LOCKWASHER, STARTER ASS'Y BOLT...
    LOCKWASHER, STARTER ASS'Y BOLT...
  • 15
    10-80461M BOLT, STARTER ASS'Y ATTACHING...
    BOLT, STARTER ASS'Y ATTACHING...
  • 16
    80470M PULLEY, ROPE STARTER...
    PULLEY, ROPE STARTER...
  • 17
    12-82189M WASHER, PULLEY BOLT...
    WASHER, PULLEY BOLT...
  • 18
    23-80472M COLLAR, PULLEY BOLT...
    COLLAR, PULLEY BOLT...
  • 19
    10-83285M BOLT, BRACKET ATTACHING...
    BOLT, BRACKET ATTACHING...
  • 20
    13-82212M LOCKWASHER, PULLEY BOLT...
    LOCKWASHER, PULLEY BOLT...
  • 21
    814491A1 HANDLE, STARTER ROPE...
    HANDLE, STARTER ROPE...
  • 22
    50-12066Q10 STARTER ROPE...
    STARTER ROPE...
  • 23
    83104M SEAL RUBBER...
    SEAL RUBBER...
  • 24
    80471M GUIDE, STARTER ROPE...
    GUIDE, STARTER ROPE...
  • 25
    24-82072M SPRING, STARTER GUIDE...
    SPRING, STARTER GUIDE...
  • 26
    53-82337M SNAP RING, STARTER GUIDE...
    SNAP RING, STARTER GUIDE...
  • 27
    10-80474M BOLT, GEAR DISTRIBUTION...
    BOLT, GEAR DISTRIBUTION...
  • 28
    22-82369M FITTING, GREASE...
    FITTING, GREASE...
  • 29
    81439M CAP, GREASE FITTING...
    CAP, GREASE FITTING...
  • 30
    12-80463M WASHER, GREASE BOLT THRUST (1.0 MM)...
    WASHER, GREASE BOLT THRUST (1.0 MM)...
  • 30
    12-80464M WASHER, GREASE BOLT THRUST (2.0 MM)...
    WASHER, GREASE BOLT THRUST (2.0 MM)...
  • 31
    23-81944M BUSHING, GREASE BOLT...
    BUSHING, GREASE BOLT...
  • 32
    47341A11 EMERGENCY STARTER ROPE...
    EMERGENCY STARTER ROPE...
