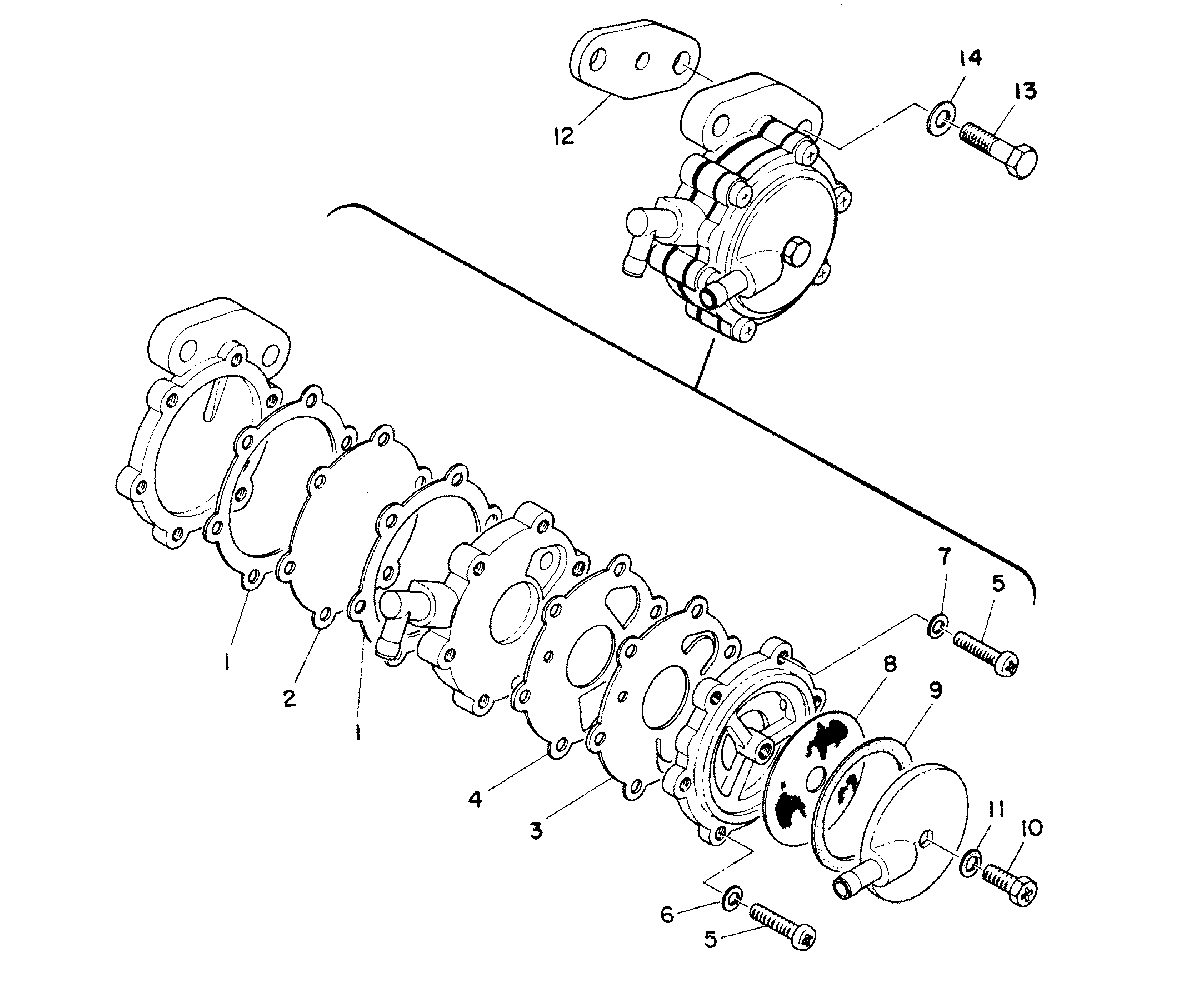

FUEL PUMP для Mariner - 8A 655-000300 AND BELOW
-
№АртикулНазвание
-
0-180476M FUEL PUMP ASS'Y...FUEL PUMP ASS'Y...
-
127-81686M GASKET, BODY TO BASE...GASKET, BODY TO BASE...
-
280217M DIAPHRAGM, FUEL PUMP... .
SERIAL 00000000-00023335DIAPHRAGM, FUEL PUMP... .
SERIAL 00000000-00023335 -
283105M DIAPHRAGM, FUEL PUMP...
SERIAL 00023336-09999999DIAPHRAGM, FUEL PUMP...
SERIAL 00023336-09999999 -
327-80477M CHECK VALVE, FUEL PUMP...CHECK VALVE, FUEL PUMP...
-
427-80478M GASKET, VALVE TO RETAINER...GASKET, VALVE TO RETAINER...
-
510-82967M SCREW, FUEL PUMP RETAINER ATTACHING...SCREW, FUEL PUMP RETAINER ATTACHING...
-
613-82206M LOCKWASHER, FUEL SCREW...LOCKWASHER, FUEL SCREW...
-
727-13999M GASKET, FUEL PUMP SCREW...GASKET, FUEL PUMP SCREW...
-
835-81692M FILTER, FUEL...FILTER, FUEL...
-
927-81688M GASKET, FUEL PUMP CAP...GASKET, FUEL PUMP CAP...
-
1010-81691M SCREW, FUEL PUMP CAP ATTACHING...SCREW, FUEL PUMP CAP ATTACHING...
-
1127-81689M GASKET, FUEL PUMP CAP SCREW...GASKET, FUEL PUMP CAP SCREW...
-
1227-81685M SPACER, FUEL PUMP...SPACER, FUEL PUMP...
-
1310-84058M BOLT, FUEL PUMP ATTACHING...BOLT, FUEL PUMP ATTACHING...
-
1412-82214M WASHER, FUEL PUMP BOLT...WASHER, FUEL PUMP BOLT...
