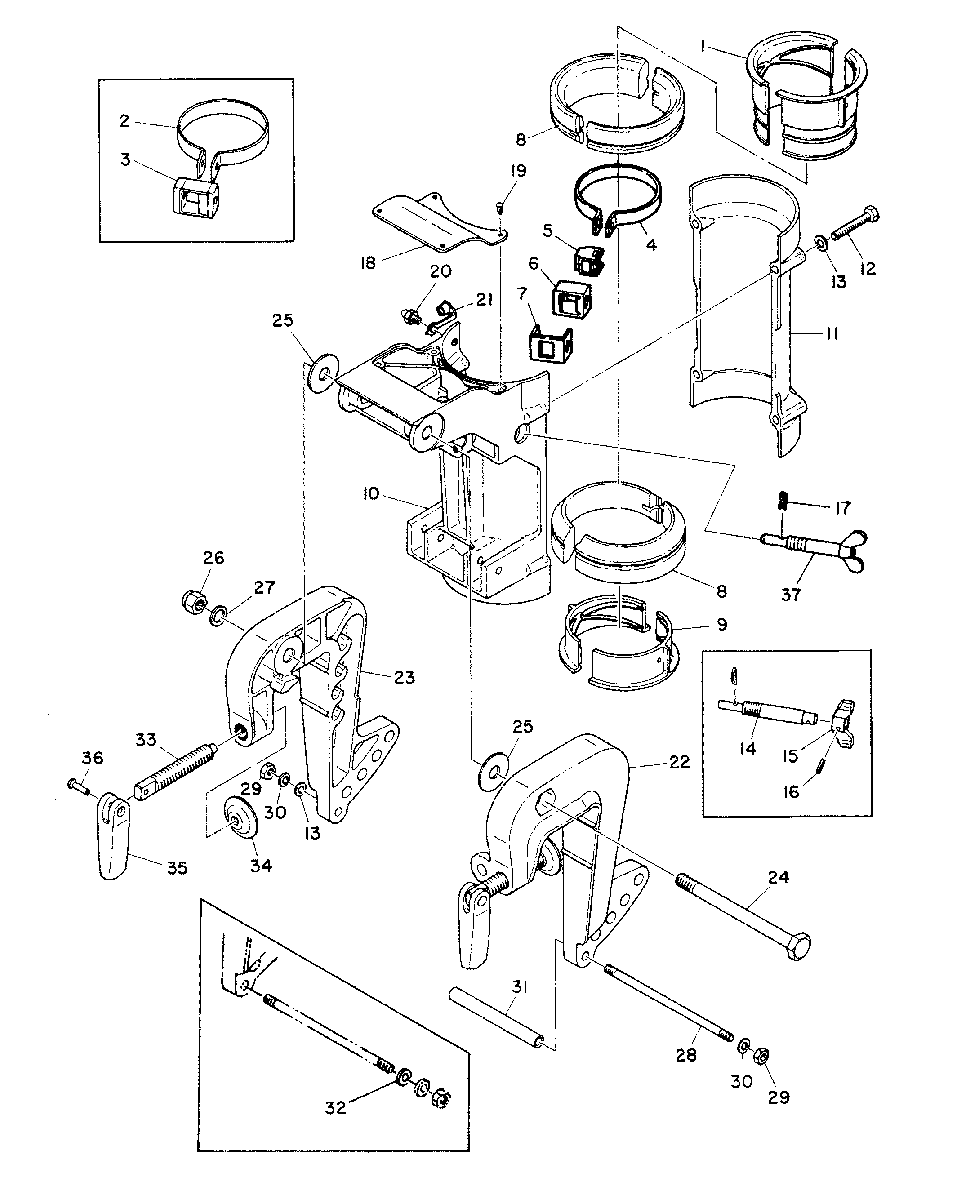

CLAMP AND SWIVEL BRACKET для Mariner - 8A 655-000300 AND BELOW
-
№АртикулНазвание
-
180513T COLLAR, THRUST-PIVOT SHAFT-UPPER...COLLAR, THRUST-PIVOT SHAFT-UPPER...
-
280511M CLAMP, FRICTION...
SERIAL 00000000-00027825CLAMP, FRICTION...
SERIAL 00000000-00027825 -
380512M LOCK, FRICTION CLAMP...
SERIAL 00000000-00027825LOCK, FRICTION CLAMP...
SERIAL 00000000-00027825 -
482889M PLATE... .
SERIAL 00027826-09999999PLATE... .
SERIAL 00027826-09999999 -
582890M PLATE... .
SERIAL 00027826-09999999PLATE... .
SERIAL 00027826-09999999 -
682891M PLATE...
SERIAL 00027826-09999999PLATE...
SERIAL 00027826-09999999 -
782892M COVER... .
SERIAL 00027826-09999999COVER... .
SERIAL 00027826-09999999 -
823-81056M BUSHING, PIVOT SHAFT...BUSHING, PIVOT SHAFT...
-
980514M COLLAR, THRUST-PIVOT SHAFT-LOWER...COLLAR, THRUST-PIVOT SHAFT-LOWER...
-
101485-6916M BRACKET, SWIVEL-FRONT...
SERIAL 00000000-00027075BRACKET, SWIVEL-FRONT...
SERIAL 00000000-00027075 -
101485-6916M BRACKET, SWIVEL-FRONT...
SERIAL 00000000-00027076BRACKET, SWIVEL-FRONT...
SERIAL 00000000-00027076 -
1180520M BRACKET, SWIVEL-REAR...BRACKET, SWIVEL-REAR...
-
1210-827043M BOLT, REAR SWIVEL BRACKET ATTACHING...BOLT, REAR SWIVEL BRACKET ATTACHING...
-
1312-82214M WASHER...WASHER...
-
1410-82700M SCREW, FRICTION CLAMP ADJUSTING...
SERIAL 00000000-00020160SCREW, FRICTION CLAMP ADJUSTING...
SERIAL 00000000-00020160 -
1511-82577M NUT, WING-FRICTION CLAMP SCREW... .
SERIAL 00000000-00020160NUT, WING-FRICTION CLAMP SCREW... .
SERIAL 00000000-00020160 -
1617-82738M PIN, ROLL-WING NUT... .
SERIAL 00000000-00020160PIN, ROLL-WING NUT... .
SERIAL 00000000-00020160 -
1718-82049M PIN, ADJUSTING SCREW RETAINING...
SERIAL 00000000-00026575PIN, ADJUSTING SCREW RETAINING...
SERIAL 00000000-00026575 -
1881065M COVER, SWIVEL BRACKET...COVER, SWIVEL BRACKET...
-
1910-14265M RIVET, SWIVEL BRACKET COVER...RIVET, SWIVEL BRACKET COVER...
-
2022-82369M FITTING, GREASE...FITTING, GREASE...
-
2181439M CAP, GREASE FITTING...CAP, GREASE FITTING...
-
221484-821596A1 CLAMP BRACKET, PORT...CLAMP BRACKET, PORT...
-
231484-6703M CLAMP BRACKET, STARBOARD...CLAMP BRACKET, STARBOARD...
-
2410-98969M CLAMP BRACKET...CLAMP BRACKET...
-
2512-98970M WASHER, CLAMP BRACKET BOLT...WASHER, CLAMP BRACKET BOLT...
-
2611-81785M NUT, CLAMP BRACKET BOLT...NUT, CLAMP BRACKET BOLT...
-
2712-81806M WASHER, CLAMP BRACKET BOLT...WASHER, CLAMP BRACKET BOLT...
-
2816-81726M STUD, CLAMP BRACKET... .
SERIAL 00000000-00027075STUD, CLAMP BRACKET... .
SERIAL 00000000-00027075 -
2810-82921M ..
SERIAL 00027076-09999999..
SERIAL 00027076-09999999 -
2911-82389M NUT, CLAMP BRACKET STUD...
SERIAL 00027075-09999999NUT, CLAMP BRACKET STUD...
SERIAL 00027075-09999999 -
2911-82389M NUT, CLAMP BRACKET STUD... .
SERIAL 00027076-09999999NUT, CLAMP BRACKET STUD... .
SERIAL 00027076-09999999 -
3013-82212M LOCK WASHER, CLAMP BRACKET STUD... .
SERIAL 00000000-00027075LOCK WASHER, CLAMP BRACKET STUD... .
SERIAL 00000000-00027075 -
3013-82212M LOCK WASHER, CLAMP BRACKET STUD...
SERIAL 00027076-09999999LOCK WASHER, CLAMP BRACKET STUD...
SERIAL 00027076-09999999 -
3123-82116M SPACER, CLAMP BRACKET STUD...SPACER, CLAMP BRACKET STUD...
-
3212-82214M WASHER... .
SERIAL 00000000-00020160WASHER... .
SERIAL 00000000-00020160 -
3310-81755M SCREW, TRANSOM CLAMP...SCREW, TRANSOM CLAMP...
-
3412-80638M PAD, TRANSOM CLAMP SCREW...PAD, TRANSOM CLAMP SCREW...
-
35809959M HANDLE, TRANSOM CLAMP SCREW...HANDLE, TRANSOM CLAMP SCREW...
-
3617-81888M PIN, TRANSOM CLAMP SCREW...PIN, TRANSOM CLAMP SCREW...
-
3710-81055M SCREW...
SERIAL 00020161-09999999SCREW...
SERIAL 00020161-09999999
