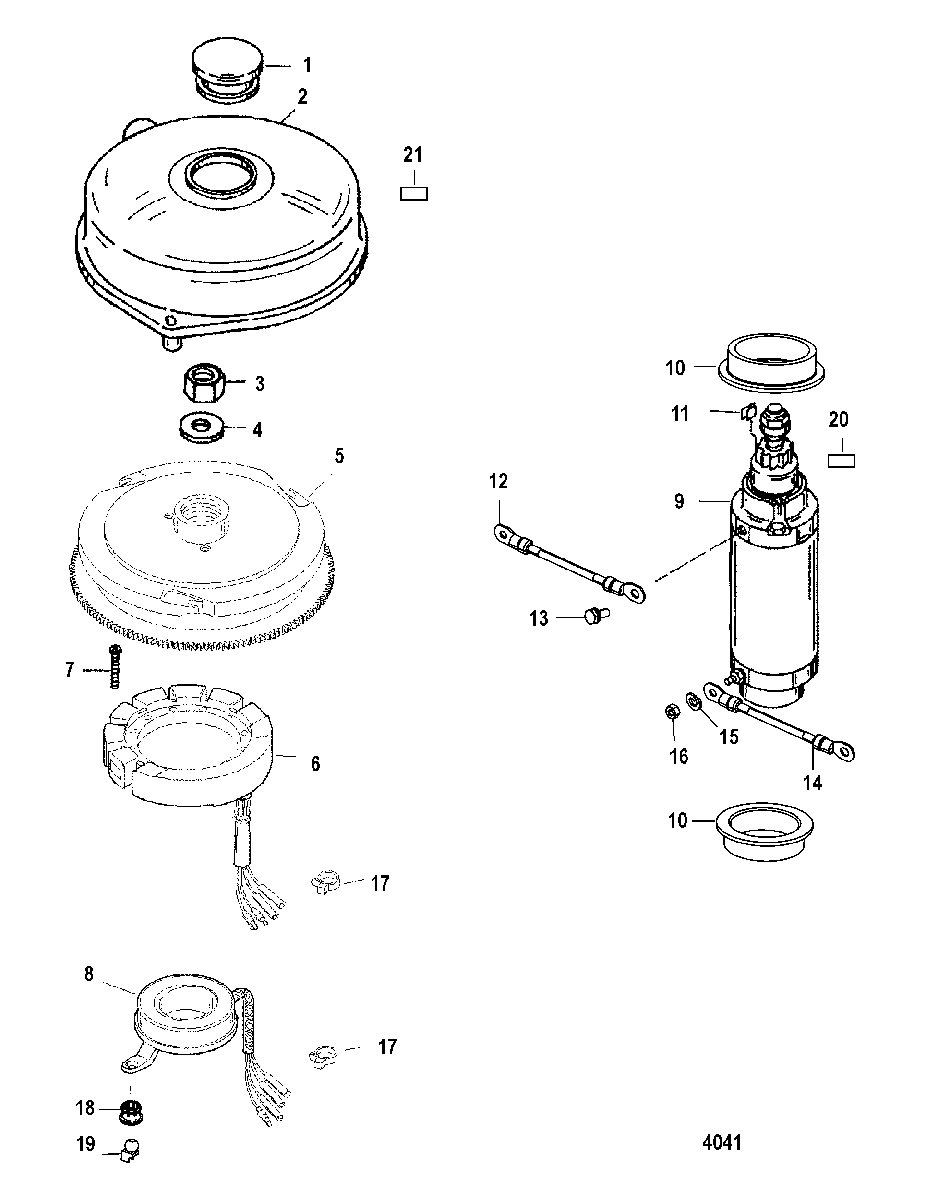

Flywheel and Starter Motor для Mariner - 80 JET 0G760300 THRU 0T979999
-
№АртикулНазвание
-
119-45907 PLUG, YellowPLUG, Yellow
-
2812777T1 COVER ASSEMBLYCOVER ASSEMBLY
-
311-42979 NUT, (M16)NUT, (M16)
-
412-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
5261-878227T2 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
6398-832075A21 IGNITION STATOR KITIGNITION STATOR KIT
-
710-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
8854513T TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
950-893892T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1023-8M0034918 COLLARCOLLAR
-
118M0043376 STOP, RubberSTOP, Rubber
-
1284-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
1310-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1484-93388A8 CABLE ASSEMBLY, (12.5 Inchs) BlackCABLE ASSEMBLY, (12.5 Inchs) Black
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1611-64015 NUT, (.250-20)NUT, (.250-20)
-
1756762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
1769355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1893254 SWIVEL BASESWIVEL BASE
-
1993421 SWIVEL BALLSWIVEL BALL
-
20NSS NOT SOLD SEPARATE, Decal-Warning- High VoltageNOT SOLD SEPARATE, Decal-Warning- High Voltage
-
2137-881865 DECAL, Caution-Start in Gear (Start In Gear)DECAL, Caution-Start in Gear (Start In Gear)
