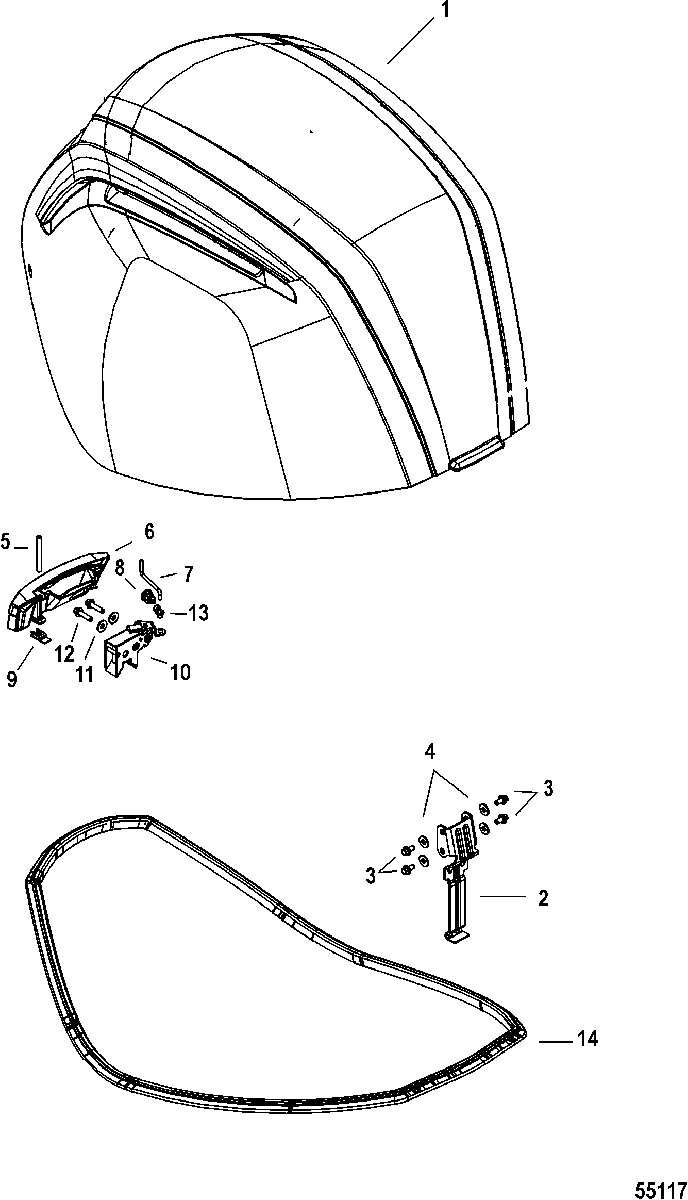

Top Cowl для Mariner - 80 EFI (4-STROKE) 2B095049 & Up

  • №
    Артикул
    Название
  • 1
    100-8M0087994 TOP COWL ASSEMBLY, Mercury Decaled
    Horse Power, Command Thrust and Jet Decals not included
    TOP COWL ASSEMBLY, Mercury Decaled
    Horse Power, Command Thrust and Jet Decals not included
  • 1
    8M0090833 TOP COWL ASSEMBLY , Mariner Decaled
    Horse Power, Command Thrust and Jet Decals not included
    TOP COWL ASSEMBLY , Mariner Decaled
    Horse Power, Command Thrust and Jet Decals not included
  • 1
    100-8M0091789 TOP COWL ASSEMBLY , Black, Non-Decaled
    TOP COWL ASSEMBLY , Black, Non-Decaled
  • 1
    100-8M0087995 TOP COWL ASSEMBLY, Gray, Non-Decaled
    TOP COWL ASSEMBLY, Gray, Non-Decaled
  • 1
    100-8M0096296 TOP COWL ASSEMBLY, Mercury, Decaled SeaPro
    TOP COWL ASSEMBLY, Mercury, Decaled SeaPro
  • 2
    8M0055166 HOOK, Top Cowl Latch Front
    HOOK, Top Cowl Latch Front
  • 3
    10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel
    SCREW, (M6 x 12 MM) Stainless Steel
  • 4
    12-4002316 WASHER
    WASHER
  • 5
    17-8M0075859 PIN- SPRING, SLOTTED
    PIN- SPRING, SLOTTED
  • 6
    8M0055191 HANDLE, LATCH
    MERCURY
    HANDLE, LATCH
    MERCURY
  • 6
    8M0088853 HANDLE, LATCH
    MARINER
    HANDLE, LATCH
    MARINER
  • 7
    8M0055189 LINK - LATCH, REAR
    LINK - LATCH, REAR
  • 8
    8M0056980 SEAL, Rear Latch
    SEAL, Rear Latch
  • 9
    53-8M0075694 CLIP-SNAP
    CLIP-SNAP
  • 10
    8M0055186 LATCH ASSEMBLY
    LATCH ASSEMBLY
  • 11
    12-4002316 WASHER
    WASHER
  • 12
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 13
    8M0006054 RETAINER
    RETAINER
  • 14
    8M0087850 SEAL - TOP COWL
    SEAL - TOP COWL
