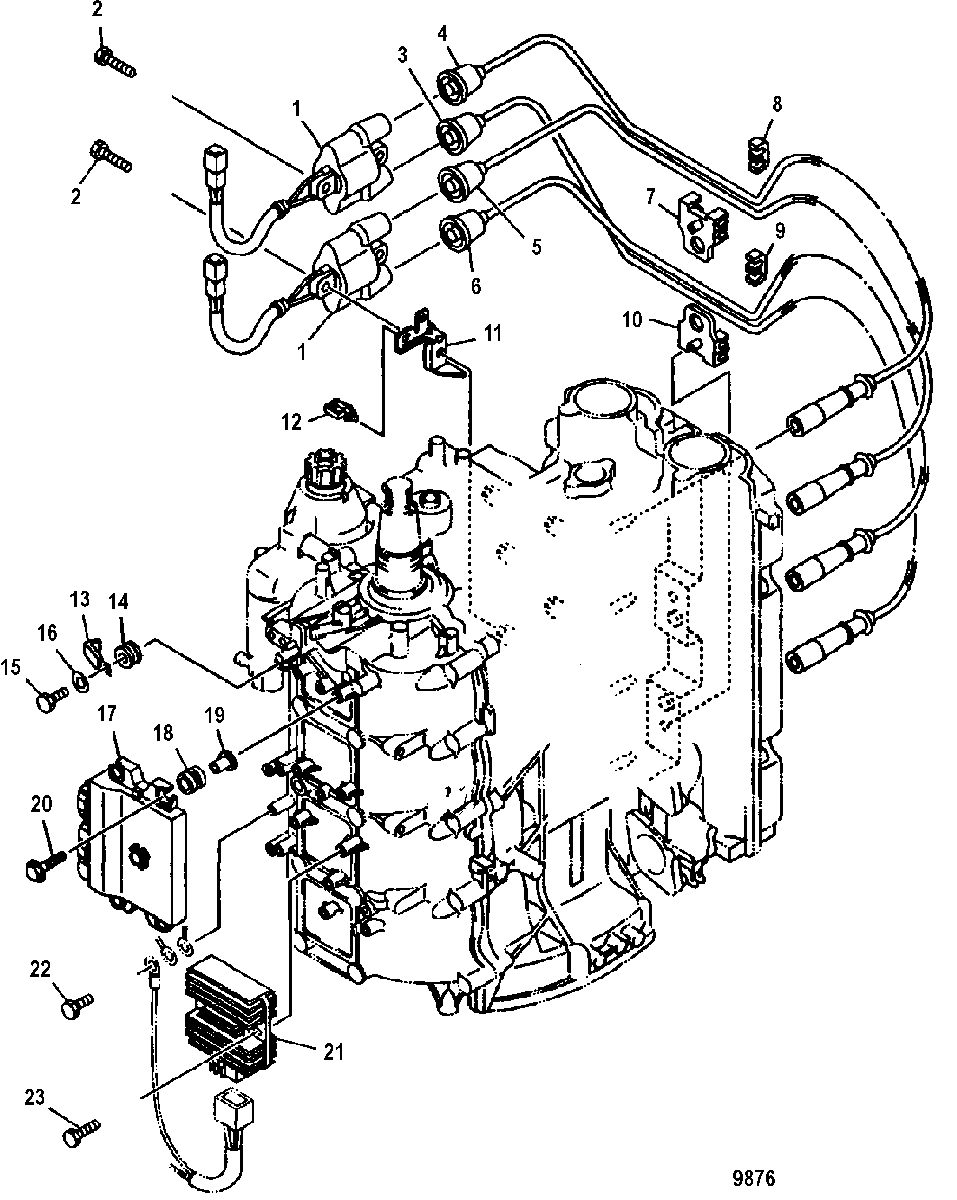

Electrical Components, Ignition Coil and ECU Mounting для Mariner - 80 EFI (4-STROKE) 1B227000 THRU 1B366822
-
№АртикулНазвание
-
1339-880892001 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
210-853536 BOLT, (M6 x 25)BOLT, (M6 x 25)
-
384-804272A1 CABLE SET, Hi TensionCABLE SET, Hi Tension
-
4NSS NOT SOLD SEPARATE, High Tension LeadNOT SOLD SEPARATE, High Tension Lead
-
5NSS NOT SOLD SEPARATE, High Tension LeadNOT SOLD SEPARATE, High Tension Lead
-
6NSS NOT SOLD SEPARATE, High Tension LeadNOT SOLD SEPARATE, High Tension Lead
-
754-804277 CLAMPCLAMP
-
854-804276 CLAMPCLAMP
-
954-804276 CLAMPCLAMP
-
1054-804277 CLAMPCLAMP
-
11888239002 PLATEPLATE
-
1254-888588001 CLAMPCLAMP
-
1354-888588002 CLAMPCLAMP
-
1425-804082001 GROMMETGROMMET
-
1510-84368M BOLTBOLT
-
1612-82214M WASHERWASHER
-
17880891T03 ECU, Engine Control Unit
(75)ECU, Engine Control Unit
(75) -
17880891T16 ECU, Engine Control Unit
(80 EU)ECU, Engine Control Unit
(80 EU) -
178M0121259 ECU, Engine Control Unit
(90) SN# 1B226999 & BelowECU, Engine Control Unit
(90) SN# 1B226999 & Below -
178M0121259 ECU, Engine Control Unit
(90) SN# 1B227000 & UpECU, Engine Control Unit
(90) SN# 1B227000 & Up -
17880891T17 ECU, Engine Control Unit
(100 EU)ECU, Engine Control Unit
(100 EU) -
1825-881304 GROMMETGROMMET
-
1923-804344003 COLLARCOLLAR
-
2010-804270 BOLT, (M6 x 28)BOLT, (M6 x 28)
-
21881346T RECTIFIER/REGULATOR ASSEMBLYRECTIFIER/REGULATOR ASSEMBLY
-
2210-804604 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
2310-853536 BOLT, (M6 x 25)BOLT, (M6 x 25)
